EVINRUDE-JOHNSON 314007 . Cup, Reverse Lock Spring

Write a Review
$12.99
SKU:
314007
Schematic Object Key:
34

EVINRUDE-JOHNSON 314007 . Cup, Reverse Lock Spring

$12.99

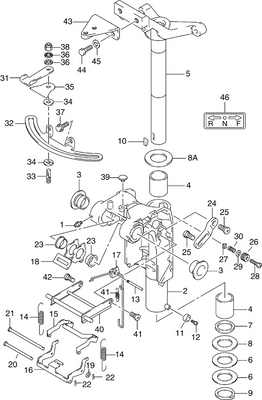

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 314007 . Cup, Reverse Lock Spring

Schematic Object Key : 34

Product Description: . Cup, Reverse Lock Spring

Category: JOHNSON / 1970 / 60 / 60ESL70B 1970 / EXHAUST COVER GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0383146 Swivel bracket
1 0383147 Swivel bracket, long
2 0313607 Lube fitting
3 0313880 Bushing, lower
4 0317776 Seal This part replaces 0313691.
5 0382388 Thrust mount assembly
0381836 0381836 Transom mount kit
6 0387482 Clamp assembly, port This part replaces 0381832.
7 0307222 . pin, lockbolt
8 0307236 . lockbolt, bracket
9 0326329 . lockwasher This part replaces 0307237.
10 0387483 Clamp assy, starboard incl items 7,8, and 9 This part replaces 0381833.
11 0363254 Nut, stern bracket screw This part replaces 0307407.
12 0363012 Screw, bracket mounting This part replaces 0313327.
13 0307238 Rondelle
14 0320248 Rondelle, écrou This part replaces 0312910.
15 0313820 Thrush washer, stern brkt.
16 0307226 Bolt, tilting
17 0383568 Thrust rod retainer
18 0313763 Gasket, adapter
19 0315085 O ring, driveshaft to crankcase
20 0307068 Spring thrust rod
21 0382652 Shaft lever assembly
22 0313818 Locking lever
23 0313824 Stern bracket, port
24 0313825 Stern bracket, starboard
25 0313650 Nut
26 0552940 Screw, mounting This part replaces 0313699.
29 0314898 L'nut, stud, alt frt
30 0313822 Pin, link
31 0313819 Link, reverse lock
32 0313816 Spring, retainer
33 0313817 . spring, reverse lock
34 0314007 . cup, reverse lock spring
35 0313821 Rod, link to swivel
36 0302858 Cotter pin, shoulder bolt
37 0305181 Coupling, flange
38 0313838 Nut, bracket to steering arm
39 0315960 Stop link, starboard
40 0313878 Stop link, port
41 0313849 Screw, stop lin to stern brkt.
42 0313823 Spring, link
43 0382389 Arm shaft assy., std
43 0382386 Arm shaft assy., long
44 0340777 Cover, housing, rear This part replaces 0206006.
45 0206008 Cover, exh housing, front
46 0384372 Exhaust hag.,outer
46 0384364 Exhaust housing, outer, long
47 0301185 Stud
48 0133022 Screw
49 0305145 Grommet
50 0314024 Seal housing, outer
51 0306470 Lock washer
52 0552940 Screw, mounting This part replaces 0313699.
53 0306422 Nut
54 0329894 Screw This part replaces 0302510.
55 0302290 Washer
56 0386486 Mount bracket This part replaces 0313428.
57 0313784 Cover, mount bracker
58 0313785 Grommet
59 0314245 Screw
60 0313429 Nut, bracket to shaft
61 0314059 Seal, adapter to cover
62 0382387 Rubber mount
63 0313427 Thrust washer ,pivot shaft
64 0314246 Blushing
65 0384284 Bellcrank rod bushing assembly
66 0303715 Washer, rivet
67 0120255 Lockwasher
68 0306376 Cotter pin
69 0306470 Lock washer
70 0314898 L'nut, stud, alt frt
71 0382472 Rubber mount assembly
72 0313581 Bumber, mount screw
73 0321232 Retainer washer This part replaces 0313546.
74 0313580 Washer
75 0316324 Screw, robber mount
76 0313403 Adapter, exhaust housing
77 0306423 Bolt
78 0306470 Lock washer
79 0302290 Washer
80 0329894 Screw This part replaces 0302510.
81 0314076 Water tube, inlet
81 0314077 Water tube, inlet, long
82 0314078 Water tube, return
82 0314079 Water tube, return, long
83 0313401 Exhaust housing, inner
83 0313402 Exhaust housing, inner
84 0313764 Gasket, exhaust to adapter
85 0313582 Cover, check value
86 0313583 Check valve, cover
87 0313584 Spring
88 0306446 Screw, coupling to adapter
