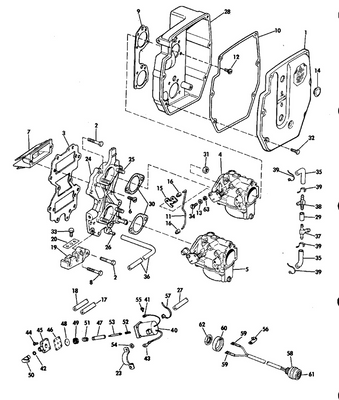

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 9
Product Description: Gasket, Air Silencer
Category: JOHNSON / 1968 / 55 / TRL-10R 1968 / INTAKE MANIFOLD AND CARBURETOR GROUP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0302471 | W.asher, plain | |
| 2 | 0303398 | Screw, lower | This part replaces 0302030. |
| 3 | 0313422 | Gasket, base to crankcase | |
| 4 | 0317306 | Base, leaf plate | This part replaces 0313423. |
| 5 | 0317305 | Gasket, manifold to base | This part replaces 0313424. |
| 6 | 0307609 | Screw | |
| 7 | 0389731 | Leaf plate assembly | This part replaces 0382442. |
| 8 | 0327074 | Screw | This part replaces 0307129. |
| 9 | 0314115 | Gasket, air silencer | |
| 10 | 0314322 | Gasket, base to cover | |
| 11 | 0383057 | Cover assembly | |
| 12 | 0314496 | Screw, air silencer | |
| 13 | 0314326 | Screw, rear cover to base | |
| 14 | 0314739 | Spring, plunger to solenoid | |
| 15 | 0378984 | Arm screw | |
| 16 | 0313329 | Lockwasher, carburetor link | |
| 17 | 0313695 | Link, carburetor throttle | |
| 18 | 0314310 | Link, carburetor choke | |
| 19 | 0382982 | Solenoid assembly | |
| 20 | 0510684 | .housing, connector | |
| 21 | 0314424 | Housing, conn. | |
| 22 | 0313636 | Plunger | |
| 23 | 0314193 | Spring, choke solenoid | |
| 24 | 0319292 | Screw, clamp | This part replaces 0308762. |
| 25 | 0314327 | Clamp, choke solenoid | |
| 26 | 0310441 | Clamp, small | |
| 27 | 0313958 | Cover, air silencer, rear | |
| 28 | 0383082 | Base and nipple assy. | |
| 29 | 0314513 | Fitting, fuel inlet | |
| 30 | 0325092 | Gasket | This part replaces 0314477. |
| 31 | 0306320 | Nut | |
| 32 | 0314576 | Screw | |
| 33 | 0306799 | L'washer,bracket to hsg. | |
| 34 | 0386662 | Manifold, intake | This part replaces 0383193. |
| 35 | 0314497 | Stud, carburetor mounting | |
| 36 | 0314513 | Fitting, fuel inlet | |
| 37 | 0314021 | Bumber, exhaust manifold | |
| 38 | 0314119 | Link, slow speed adjust | |
| 39 | 0313791 | Arm, slow speed adjust, middle | |
| 40 | 0313792 | Arm, slow spd adj., upper lower | |
| 41 | 0313790 | Lever, slow speed adjust, carburetor | |
| 42 | 0302647 | Clamp | |
| 43 | 0313537 | Fitting, tee recirculation hose | |
| 44 | 0333387 | Hose, tee to primer | This part replaces 0314512. |
| 45 | 0203909 | Hose, oil return | This part replaces 0314191. |
| 46 | 0307529 | "o" ring, cam follower | |
| 47 | 0306418 | Screw, anchor block lower | |
| 48 | 0313996 | Guard, ring gear | |
| 49 | 0308506 | Hose, oil line | This part replaces 0552613. |
| 50 | 0306493 | Screw, regulator mounting | |
| 51 | 0314807 | Spring | |
| 52 | 0382316 | Carburetor assembly, complete, upper lowe | |
| 53 | 0382317 | Carburetor assembly, complete, middle |
