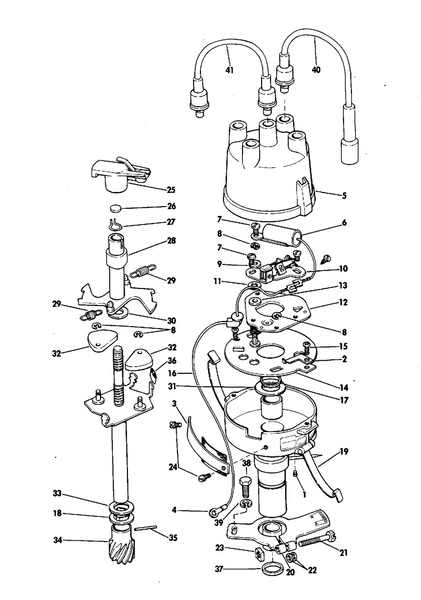

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description: Plug
Category: STERN DRIVE / 1969 / 155 / HUFM-69M 1969 / DISTRIBUTOR GROUP 80 HP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0383110 | 0383110 | Distributor assembly,complete | |
1 | 0314201 | Plug | |
2 | 0314202 | Retainer,plate | |
3 | 0382818 | Plate screen assembly | |
4 | 0510266 | . terminal | |
5 | C6AH-12106-A | Distributor cap | |
6 | C6AH-12300-A | Condenser | |
7 | 0BA-12230-A | Screw | |
8 | 379023-S8B | Retainer | |
9 | 381001-S8 | Washer | |
10 | C6AH-12171-A | Contact point set | |
11 | 372395-S | Washer | |
12 | C6AH-12151-A | Plate,upper | |
13 | B9AF-12366-A | Bushing, upper plate | |
14 | C6AH-12A002-A | Plate,lower | |
15 | 50257-S7/8 | Screw,plate to body | |
16 | C6AH-12216-A | Wire, distributor to coil | |
17 | C6AH-12179-A | Washer, nylon | |
18 | C6AH-12179-B | Thrust washer, lower | |
19 | 7RA-12144-A | Clamp, cap attaching | |
20 | C6AH-12273-A | Arm assembly,timing | |
21 | 377280-S100 | Bolt, timing arm | |
22 | 377294-S100 | Washer | |
23 | 377296-S100 | Nut | |
24 | 50742-S8 | Screw,plate to body | |
25 | C6AH-12200-A | Rotor assembly | |
26 | C6AH-12133-A | Wick, lubrication | |
27 | B7A-12177-A | Retainer, wick | |
28 | C6AH-12210-A | Cam assembly | |
29 | 3014E-12322-A | Spring kit | |
30 | 379039-S | Thrust washer, cam | |
31 | FAB-12179-B | Thrust washer,shaft | |
32 | C5AF-12189-A | Weight | |
33 | C6AH-12179-C | Spring washer, shaft | |
34 | C6AH-12390-A | Gear, distributor drive | |
35 | 67565-S | Pin, gear to shaft | |
36 | C5NF-12A075-A | Sleeve | |
37 | 204E-12143 | Sal,distributor to block | |
38 | 20308-S7/8 | Bolt,distributor mounting | |
39 | 34905-S8 | Lockwasher | |
40 | 0580555 | Lead assembly, 1 and 2 | |
40 | 0580556 | Lead assembly, 3 | |
40 | 0580557 | Lead assembly, 4 | |
41 | 0580558 | Lead assembly, coil |
