EVINRUDE-JOHNSON 314534 Lever, Intermediate Choke

Write a Review
$2.00
SKU:
314534
Schematic Object Key:
18

EVINRUDE-JOHNSON 314534 Lever, Intermediate Choke

$2.00

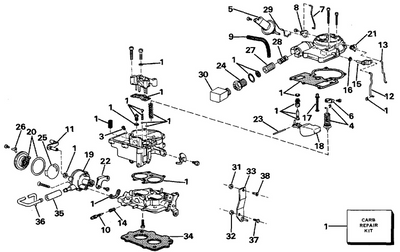

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 314534 Lever, Intermediate Choke

Schematic Object Key : 18

Product Description: Lever, Intermediate Choke

Category: STERN DRIVE / 1982 / 3.8 / 384SPMRCNC 1982 / CARBURETOR GROUP - 4 V

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0311645 Clip, vacuum, choke pump rod
2 0311655 Ball, pump discharge
3 PUMP ASSY
4 0910181 Spring, idle needle
5 0314521 Screw, air horn
6 0314560 Screw, air horn
7 0910332 Metering rod, secondary
8 0911652 Holder kit, secondary metering rod This part replaces 0910331.
9 0983871 Float insert assy. This part replaces 0383087.
10 0314526 Roll pin
11 0314527 Rod vacuum break
12 GASKET, Air horn
13 0314529 Screw, control attaching
14 0316523 Cam, fast idle This part replaces 0910141.
15 0314531 Hose, vacuum
16 0383391 Choke shaft lever kit
17 0314533 Screw, choke valve
18 0314534 Lever, intermediate choke
19 0314535 Rod, choke
20 0910194 Jet, primary
21 0908961 Lever, pump actuating
22 0314538 Retainer, pump discharge ball
23 GASKET, Needle seat
24 0314540 Pull clip, float needle
25 0314541 Hinge pin, float assembly
26 0983868 Power piston assy This part replaces 0910140.
27 0983868 Power piston assy This part replaces 0980912.
28 METERING ROD, Primary
29 0983868 Power piston assy This part replaces 0908965.
30 0314546 314546
31 GASKET, Filter nut
32 0314548 Spring, fuel filter
33 0314549 Insert, float bowl
34 0314550 Screw, idle sotp
35 0314551 Insert, float bowl
36 0314552 Baffle, float bowl
37 0314553 Spring, pump retainer
38 0983870 Filter, fuel inlet This part replaces 0910139.
39 NEEDLE & SEAT ASSY
40 0314556 Pump rod
41 0316307 Screw, air horn, short
42 GASKET, Throttle body
43 IDLE NEEDLE SET
44 0314522 Screw, air horn
45 0314561 Cam lever
46 0314562 Lever, fast idle
47 0314563 Screw idle lever
0314564 0314564 Air valve spring cam kit
48 0981788 Backet assembly vacuum break control
49 AIR HORN ASSY
50 0981789 Vacuum break assy
51 THROTTLE BODY ASSY
52 FLOAT BOWL ASSY
53 3998966 Choke, rod
54 0983063 Bracket assy, lift
55 0273513 Screw, choke
56 0326079 Therm assy, choke
57 3998944 Cover, bi metal choke
58 3989067 Clip, bi metal choke
59 0912809 Throttle lever This part replaces 0910843.
60 0311516 .screw, clip
61 0315077 Locknut, 3 8 24 ss
62 0910468 Pin, lever
63 0307999 Nut
64 0310685 Abchor blcok, trunnion
65 0909790 Retainer
66 0328737 Washer This part replaces 0306561.
67 0309654 Screw
68 0983864 Carb. repair kit This part replaces 0983075.
69 0983864 Carb. repair kit This part replaces 0982383.
