EVINRUDE-JOHNSON 314547 Gasket,Filter Nut

Write a Review
$1.25
SKU:
314547
Schematic Object Key:
31

EVINRUDE-JOHNSON 314547 Gasket,Filter Nut

$1.25

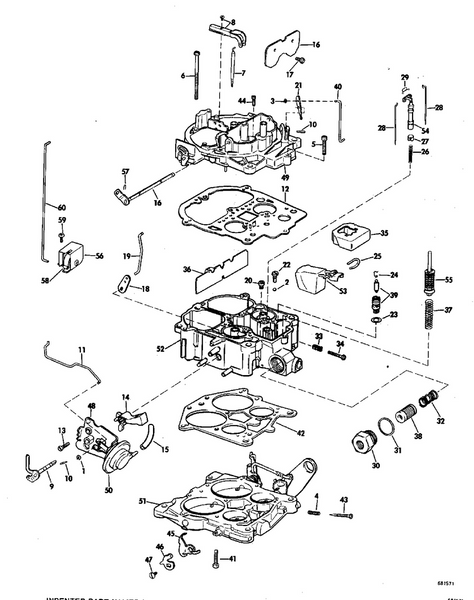

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 314547 Gasket,Filter Nut

Schematic Object Key : 31

Product Description: Gasket,Filter Nut

Category: STERN DRIVE / 1968 / 210 / TUE-17R 1968 / CARBURETOR GROUP ROCHESTER MODEL 7028280

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0382821 0382821 Carburetor ass., compl.
1 0311645 Clip, vacuum, choke pump rod
2 0311655 Ball, pump discharge
3 0311658 Clip,pump rod
4 0312445 Spring, idle needle
5 0314521 Screw, air horn
6 0314522 Screw, air horn
7 0314523 Metering rod, secondary
8 0911652 Holder kit, secondary metering rod This part replaces 0314524.
9 0314525 Lever, air valve lockout
10 0314526 Roll pin
11 0314527 Rod vacuum break
12 0314528 Gasket,air horn
13 0314529 Screw, control attaching
14 0316523 Cam, fast idle This part replaces 0314741.
15 0314531 Hose, vacuum
16 0383391 Choke shaft lever kit
17 0314533 Screw, choke valve
18 0314534 Lever, intermediate choke
19 0314535 Rod, choke
20 0314536 Jet,primary
21 0314537 Lever pump actuating
22 0314538 Retainer, pump discharge ball
23 0314539 Gasket,needle seat
24 0314540 Pull clip, float needle
25 0314541 Hinge pin, float assembly
26 0314542 Spring, power piston
27 0314543 Retainer, power piston
28 0314544 Metering rod,primary
29 0983868 Power piston assy This part replaces 0314545.
30 0314546 314546
31 0314547 Gasket,filter nut
32 0314548 Spring, fuel filter
33 0314549 Insert, float bowl
34 0314550 Screw, idle sotp
35 0314551 Insert, float bowl
36 0314552 Baffle, float bowl
37 0314553 Spring, pump retainer
38 0983870 Filter, fuel inlet This part replaces 0314554.
39 0383092 Needle seat assembly
40 0314556 Pump rod
41 0314557 Screw, throttle body
42 0314558 Gasket,throttle body
43 0314559 Idle needle
44 0314560 Screw, air horn
45 0314561 Cam lever
46 0314562 Lever, fast idle
47 0314563 Screw idle lever
0314564 0314564 Air valve spring cam kit
48 0383251 Bracket assembly, vacuum break control
49 0383083 Air horn assembly
50 0383084 Vaccum break control assembly
51 0383090 Throttle body assembly
52 0383086 Float bowl assembly
53 0983871 Float insert assy. This part replaces 0383087.
54 0383088 Power piston assembly
55 0383089 Pump assembly
56 3864866 Cover, bi metal choke
57 6255773 Clip, choke link
58 3927190 Thermostat assembly, choke
59 0132821 Screw, choke
60 3896970 Rod, choke
