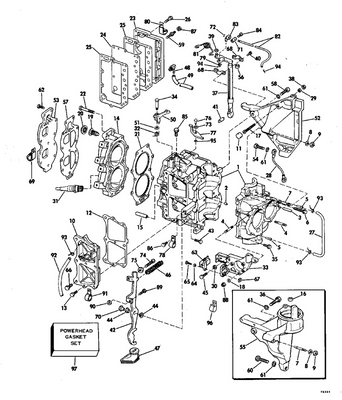

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 87
Product Description: Rondelle
Category: JOHNSON / 1978 / 35 / 35R78R 1978 / EXHAUST HOUSING - 25
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0319710 | Gasket, baffle | |
2 | 0308743 | Screw, injector to manifold | This part replaces 0320179. |
3 | 0390453 | Exhaust housing assy. | This part replaces 0388546. |
4 | 0324815 | Stud | |
5 | 0322682 | Exhaust tube, inner | |
6 | 0314408 | . .ring, tru arc | |
7 | 0303887 | Washeer, pin to swivel bracket | |
8 | 0303879 | Mount rubber, upper side, std. only | |
9 | 0321513 | Guide, water tube | |
10 | 0329217 | Screw, retainer | This part replaces 0310259. |
11 | 0306439 | Washer | This part replaces 0200158. |
12 | 0304023 | Gasket, cover plate | |
13 | 0303862 | Cover plate, extension long shaft models | |
14 | 0303587 | Scres,cover plate | |
15 | 0304168 | Gasket, mount, lower side | |
16 | 0321470 | Mount, rubber, lower side | |
17 | 0323109 | Houising,lower mount,stbd. | |
18 | 0303890 | Acorn nut, lower side mount | |
19 | 0330437 | Screw | This part replaces 0303888. |
20 | 0303886 | Lockwasher | |
21 | 0321469 | Mount, rubber, lower front | |
22 | 0304169 | Gasket, lower front mount | |
23 | 0309942 | Screw, anchor bracket | |
24 | 0387524 | Rod, thrust and retainer | |
25 | 0323108 | Housing, lower mount port | |
26 | 0342540 | Screw, exhaust housing to ext. | This part replaces 0316440. |
27 | 0303884 | Washer | |
28 | 0303889 | .nut | |
29 | 0304800 | Mount, rubber, upper front | |
30 | 0319541 | Pin, bellcrank to shift rod | |
31 | 0306376 | Cotter pin | |
32 | 0321532 | Screw | |
33 | 0304380 | , bow | |
34 | 0319537 | Clip | |
35 | 0322177 | Lever, shift rod | |
36 | 0303775 | Wahser, lever to hsg | |
37 | 0304859 | Rod, shaft, upper | |
38 | 0203688 | Nut | |
39 | 0388655 | Adj lever and shaft assy | |
40 | 0303191 | "o" ring, lever shaft | |
41 | 0313607 | Lube fitting | |
42 | 0384477 | Shift lever pin | |
43 | 0323836 | Screw, cyl to c'case | |
44 | 0323099 | Screw, bumper | This part replaces 0301989. |
45 | 0552938 | Locking nut, 3 8 x 24 | |
46 | 0306433 | Washer | |
47 | 0302051 | Spring tilting bolt | |
48 | 0388037 | Stern brkt., assy, stbd. | |
49 | 0433675 | Clamp scr. hand. assy. | This part replaces 0388347. |
50 | 0337017 | Plate, swivel | This part replaces 0307561. |
51 | 0321922 | Screw, shoulder | |
52 | 0304144 | Lock washer | |
53 | 0388036 | Stern brkt., assy., port incl. items 49, 50, 51 | |
54 | 0319756 | Bolt, tilting shaft | |
55 | 0901889 | Screw | This part replaces 0303396. |
56 | 0324871 | Screw, housing to cylinder | |
57 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
58 | 0309967 | Bushing, pilot shaft, lower | |
59 | 0305270 | O ring | |
60 | 0309966 | Thrust washer, lower swivel bracket | |
61 | 0329183 | Bracket, swivel | This part replaces 0323066. |
62 | 0313607 | Lube fitting | |
63 | 0432294 | Screw nut assembly | This part replaces 0313966. |
64 | 0397736 | Block assy., friction | This part replaces 0319086. |
65 | 0326071 | Bumper, mount housing | This part replaces 0323107. |
66 | 0303978 | Link, reverse lock arm to shaft | |
67 | 0303930 | Pin, cotter, pivot shaft | |
68 | 0306376 | Cotter pin | |
69 | 0303980 | Arm, manual locking lever | |
70 | 0303949 | Rod, reverse lock | |
71 | 0329962 | Lever, reverse lock | This part replaces 0303948. |
72 | 0551113 | Ressort de friction de direction | |
73 | 0321531 | Screw, friction adjust. swivel brkt. | |
74 | 0303950 | Link, reverse lock | |
75 | 0323471 | Spring, thrust rod | |
76 | 0303696 | Pin | |
77 | 0397736 | Block assy., friction | This part replaces 0388748. |
78 | 0327969 | Ãcrou de blocage | This part replaces 0316854. |
79 | 0323098 | Piklot shaft, steering brkt for models with steering handles use 394343 models without steering handles use 394342 | |
80 | 0322883 | Bracket, steering | |
80 | 0322884 | Bracket, steering | |
81 | 0317624 | Screw, driveshaft hsg | |
82 | 0303854 | Bushi ng, throttle control | |
83 | 0393943 | Gear, throttle control | This part replaces 0387634. |
84 | 0304573 | Scr., idle adj. | |
85 | 0309247 | Ressort | |
86 | 0327969 | Ãcrou de blocage | This part replaces 0316854. |
87 | 0315776 | Rondelle | |
88 | 0322878 | Spacer, shift lever | |
89 | 0303142 | Pinion, control throttle | |
90 | 0303951 | Screw, pin to shaft | |
91 | 0305347 | Bushing, throttle shaft | |
92 | 0387057 | Gear shaft, short | |
93 | 0133452 | Screw | |
94 | 0322933 | Handle ,sterring,inner half | |
95 | 0330976 | Screw, handle halves | This part replaces 0303078. |
96 | 0303079 | Washer | |
97 | 0393556 | Grip sleeve assy. | This part replaces 0386239. |
98 | 0320842 | Plate | |
99 | 0301983 | Conicak washer,stern brkt | |
100 | 0301656 | Spring | |
101 | 0303282 | Block | |
102 | 0300364 | Link, conical, tilt shaft | |
103 | 0310303 | 1 | |
104 | 0303252 | Wahser, grip spring | |
105 | 0322932 | Handle, outer half | |
107 | 0388657 | Gear shaft, long | |
109 | 0133079 | Nut | |
111 | 0303979 | Spring, reverse lock | |
112 | 0308776 | O ring | |
113 | 0301967 | O ring | |
115 | 0302035 | "o" ring, spacer to imp. hsg. | |
116 | 0323493 | Bushing | |
117 | 0302497 | Grommet, lower water tube |
