EVINRUDE-JOHNSON 315866 Stop Link, Port

Write a Review
$17.99
SKU:
315866
Schematic Object Key:
40

EVINRUDE-JOHNSON 315866 Stop Link, Port

$17.99

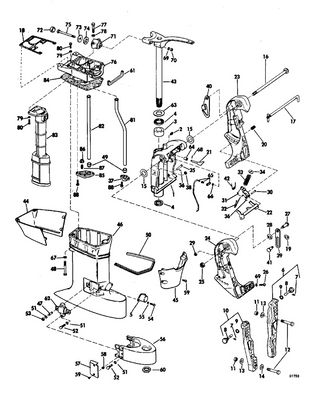

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 315866 Stop Link, Port

Schematic Object Key : 40

Product Description: Stop Link, Port

Category: JOHNSON / 1982 / 70 / J70TLCNB 1982 / EXHAUST HOUSING - 15" TRANSOM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0383146 Swivel bracket
2 0313607 Lube fitting
3 0313880 Bushing, lower
4 0317776 Seal
5 0382388 Thrust mount assembly
0381836 0381836 Transom mount kit
6 0387482 Clamp assembly, port
7 0307222 . pin, lockbolt
8 0307236 . lockbolt, bracket
9 0326329 . lockwasher
10 0387483 Clamp assy, starboard incl items 7,8, and 9
11 0363254 Nut, stern bracket screw This part replaces 0321861.
12 0363012 Screw, bracket mounting This part replaces 0313327.
12 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
12 0318573 3.5" bolt
13 0307238 Rondelle
14 0320248 Rondelle, écrou
0322751 0322751 Template, clamp screw
15 0313820 Thrush washer, stern brkt.
16 0307226 Bolt, tilting
17 0383568 Thrust rod retainer
18 0313763 Gasket, adapter
19 0315085 O ring, driveshaft to crankcase
20 0307068 Spring thrust rod
21 0382652 Shaft lever assembly
22 0316608 Lock lever
23 0313824 Stern bracket, port
24 0313825 Stern bracket, starboard
25 0313650 Nut
26 0552940 Screw, mounting This part replaces 0313699.
27 0313848 Screw, stop link
28 0314031 Spring washer, stop link
29 0329894 Screw This part replaces 0302510.
30 0315962 . pin, link to lever
31 0316610 Link, reverse lock
32 0315965 . retainer, spring
33 0313817 . spring, reverse lock
34 0314007 . cup, reverse lock spring
35 0313821 Rod, link to swivel
36 0302858 Cotter pin, shoulder bolt
37 0306428 Flat washer, trans. bolt
38 0313838 Nut, bracket to steering arm
39 0315867 Stop link starboard
40 0315866 Stop link, port
41 0313849 Screw, stop lin to stern brkt.
42 0316611 Spring, link
43 0385755 Arm shaft assembly,standard
44 0340777 Cover, housing, rear This part replaces 0206006.
45 0322844 Cover, exhaust housing, front
46 0320211 Exhaust housing, outer
47 0329706 Transfer, reverse lock This part replaces 0317590.
48 0321343 Screw
49 0319043 Seal, water tube upper
50 0314024 Seal housing, outer
51 0306470 Lock washer
52 0552940 Screw, mounting This part replaces 0313699.
53 0328694 Screw, bracket This part replaces 0321527.
54 0329894 Screw This part replaces 0302510.
55 0302290 Washer
56 0386486 Mount bracket
57 0306503 Screw, adjustment rod
58 0313785 Grommet
59 0314245 Screw
60 0318307 Clamp,cable casing guide
61 0314059 Seal, adapter to cover
62 0384897 Rubber mount
63 0313427 Thrust washer ,pivot shaft
64 0314246 Blushing
65 0384284 Bellcrank rod bushing assembly
66 0303715 Washer, rivet
67 0120255 Lockwasher
68 0306376 Cotter pin
69 0306470 Lock washer
70 0314898 L'nut, stud, alt frt
71 0384896 Rubber mount assebmly
72 0313581 Bumber, mount screw
73 0321232 Retainer washer
74 0313580 Washer
75 0316324 Screw, robber mount
76 0321638 Adapter, exhaust housing
77 0306423 Bolt
78 0306470 Lock washer
79 0302290 Washer
80 0329110 Screw, clamp to cover This part replaces 0319358.
81 0319282 Water tube, inlet
82 0319266 Exhaust housing, inner
83 0331016 Gasket This part replaces 0321796.
84 0324832 Plate, adapter to inner hosing
85 0316609 Palte,reverse lock
86 0313784 Cover, mount bracker
87 0582494 Ground strap This part replaces 0387043.
88 0307947 Bumper, lever
