EVINRUDE-JOHNSON 316198 Heat Shrink Tubing

Write a Review
$1.25
SKU:
316198
Schematic Object Key:
50

EVINRUDE-JOHNSON 316198 Heat Shrink Tubing

$1.25

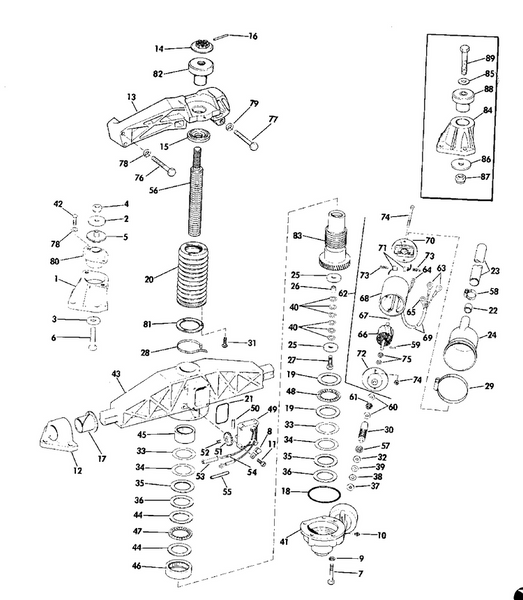

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 316198 Heat Shrink Tubing

Schematic Object Key : 50

Product Description: Heat Shrink Tubing

Category: STERN DRIVE / 1975 / 140 / 990225A1 1975 / ENGINE MOUNT GROUP 120 & 140 HP WITH SELECTRIM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0908895 Bracket, rear
2 3853788 Rebound washer assy. This part replaces 0980808.
3 3852422 Washer, upper This part replaces 0907826.
4 0313650 Nut
5 0908896 Spacer
6 0316913 Screw
7 0306500 Screw, belt retainer
8 0310441 Clamp, small
9 0311388 Oring
10 0313607 Lube fitting
11 0510397 Screw
12 0907746 Pillow block, trunnio hsg
13 0908714 Bracket, engine front
14 0908413 Flange nut, front mount
15 0908419 Retainer, front mount
16 0309686 Roll pin
17 0907769 Bushing, pillow blcok
18 0907770 O ring, trunnion housing
19 0907791 Washer
20 0908406 Boot, jack screw
21 0907817 O ring, sending unit
22 0907819 Tube, boot trim motor
23 0907820 Hose, motor leads
24 0907821 Boot, protective motor
25 3852422 Washer, upper This part replaces 0907826.
26 0907828 Spacer, stop screw
27 0907832 Screw, bumper stop
28 0907833 Attache câble, câbles vers commande de sens de marche
29 0980021 Clamp, boot to trim motor
30 0907835 Worm gear, tilt trim
31 0908431 Screw
32 0907837 Washer
33 0907925 Shim, .002"
34 0907926 Shim, .003"
35 0907927 Shim, .004"
36 0907928 Shim, .010"
37 0907929 Shim, .002"
38 0907930 Shim, .003"
39 0907931 Shim, .004"
40 0907966 Washer, bumper stop
41 0979715 Trunnion housing, lower
42 0306414 Screw
43 0981671 Trunion hsg brg assy This part replaces 0979724.
44 0907791 Washer
45 0979769 Needle bearing assy
46 0979770 Needle beareing assy
47 0397537 Bearing, rev gear thrust This part replaces 0979771.
48 0397537 Bearing, rev gear thrust This part replaces 0979771.
49 0979792 Sending unit assembly
50 0316198 Heat shrink tubing
51 0907815 Gear
52 0907816 Clutch pins
53 0303806 Tubing
54 0308808 Cosse, plate
55 0908615 Heat shirink tube
56 0980282 Jack screw stud assy
57 0979798 Bearing
58 0979803 Clamp
59 0317134 Spiral pin
60 0907837 Washer
61 0979798 Bearing
62 0979768 Motor assembly
63 0204036 10 ring termial,12v
64 0204039 10 ring terminal
65 0310502 Terminal, ring
66 0979937 Armature
67 0122788 . . . ball This part replaces 0121987.
68 0979938 Coil assy, field, complete
69 0979939 Lead grommet assy
70 0979940 Head assy, comm end
71 0982310 . brush set .. o ring package This part replaces 0380706.
72 0979942 Head assembly, drive end
73 0382950 . . . spring set, brush This part replaces 0979943.
74 0979944 Thru bolt pkg
75 0979945 Thrust washer spacer
76 0317222 Screw
77 0317444 Screw, adaptor
78 0120177 L'washer, alternator to brkt
79 0303269 L'washer, upper
80 3853789 Eccentric, fuel pump, inner This part replaces 0980809.
81 0908421 Retainer
82 0980283 Rubber mount assy, front
83 0979793 Nut worm wheel assy
84 0908725 Bracket, mount, stringer
85 0907838 Bracket, rear
86 3852428 Washer, lower This part replaces 0907857.
87 0907858 Locknut, mount screw
88 0979722 Rubber mount
89 0817573 Screw
