EVINRUDE-JOHNSON 316664 Bracket, Adjustment

Write a Review
$37.49
SKU:
316664
Schematic Object Key:
38

EVINRUDE-JOHNSON 316664 Bracket, Adjustment

$37.49

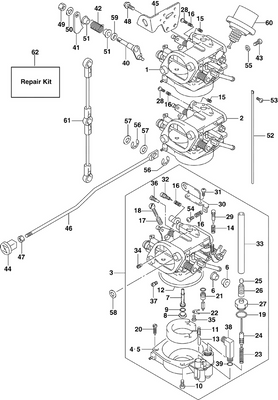

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 316664 Bracket, Adjustment

Schematic Object Key : 38

Product Description: Bracket, Adjustment

Category: EVINRUDE / 1975 / 75 / 75543B 1975 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0386911 0386911 Cylinder crankcase assembly
1 0304178 Pin, dowel
2 0314616 Stud
3 0305070 Axe, carter moteur vers bloc
4 0302288 Bolt
5 0300646 Screw, clamp, fuel filter
6 0131794 Screw, crankcase to cylinder
7 0313538 Stud, crankcase to cylinder
8 0320372 Locknut, crankcase to cylinder
9 0300343 Washer, crankcase to cylinder
10 0307776 Screw, lower main bearing
11 0309040 Clamp, exhaust cover
12 0310439 Clamp, battery cable This part replaces 0311339.
13 0320389 Cylinder head
14 0318609 Gasket, cover
15 0317218 Cover, cylinder head
16 0330151 Cable clamp, filter This part replaces 0309041.
17 0331025 Screw This part replaces 0308751.
18 0303459 Ecrew,exhaust cover,1 1 2"long
19 0306396 Lock washer, control to boat
20 0307267 Screw
21 0386941 Spark plub,champion l77j4
21 0386939 Park plug,ac m40ffx
22 0314907 Screw, cover
23 0302471 W.asher, plain
24 0317219 Cover, thermostat valves
25 0386802 Bellcrank assy
26 0325857 Screw, fuel connector This part replaces 0304151.
27 0332108 Gasket, thermostat cover This part replaces 0317226.
28 0331917 Gasket, plate to crankcase This part replaces 0317227.
29 0324555 Plate, exhaust manifold This part replaces 0317215.
30 0331916 Gasket, exhaust manifold This part replaces 0317228.
31 0390041 Cover, exhaust manifold This part replaces 0317217.
32 0316676 Lockwasher, ground
33 0202026 Washer, rod
34 0318309 Manifold, exhaust
35 0316907 Screw, exhaust cover
36 SEAL,Cylinder to crankcase
37 0396987 Thermostat seal assy. This part replaces 0382385.
38 0316664 Bracket, adjustment
39 0308993 Ressort, friction d'accélération
40 0203688 Nut
41 0306337 Screw, adjustment
42 0314021 Bumber, exhaust manifold
43 0319318 Lever, spark adavance
44 0395448 Ball socket assy This part replaces 0313700.
45 0395448 Ball socket assy This part replaces 0313703.
46 0330275 Link, spark advance This part replaces 0320284.
47 0394466 Cam pin assy., throttle This part replaces 0386652.
48 0318366 Bracket, fuel pump
49 0316355 But, carburetor mounting This part replaces 0315204.
50 0310524 Yoke
51 0318251 Lever, throttle
52 0318192 Shdlr. screw, throttle lever
53 0314002 Bushing
54 0330151 Cable clamp, filter This part replaces 0309322.
55 0314003 Bshing, spark lever
56 0314098 Washer, throttle lever
57 0314094 Link, throttle lever to cam
58 0329889 Link throttle lever to cam This part replaces 0314133.
59 0314136 Screw, shift lever to bracket
60 0314137 Nylon bushing
61 0204445 Bow washer
62 0204757 Bow washer
63 0302474 Wahser,link
64 0330777 Bolt, double ended This part replaces 0318449.
65 0306012 Bow washer
66 0311375 Nut This part replaces 0316659.
67 0305650 Cotter pin
68 0908060 Bow washer, shoulder screw This part replaces 0318202.
69 0388676 Pin, shaft lever to shift rod This part replaces 0318583.
70 0314125 Bushing, shift handle linkage rod
71 0313413 Gasket, cylinder head
72 0303398 Screw, lower This part replaces 0302030.
73 0317615 Scerw,spark advance
74 0386686 Switch temp
75 0333962 Lift bracket This part replaces 0315930.
76 0303806 Tubing
77 0376349 Lead, ground
78 0306322 Bolt, water pump
79 0326365 Clip, spring This part replaces 0315197.
80 0330151 Cable clamp, filter This part replaces 0310440.
81 0317000 Cable, starter cable
82 0314416 Bumber, advance screw
83 0328741 Nut, input stud This part replaces 0304753.
84 0312708 Bushing
85 0313607 Lube fitting
86 0331916 Gasket, exhaust manifold This part replaces 0319097.
87 0552906 Cotter pin, upper pivot
88 0303911 Screw, clamp stator to ground
89 0306387 . cotter pin, connector to guide
90 0318567 Toke, link to bellcrank
91 0320184 Link, shift lever to bellcrank
92 0318194 Bushing
93 0318197 Pin, link
94 0302474 Wahser,link
95 0330179 Washer This part replaces 0303304.
96 0312977 Bow washer, link to lever
97 0318193 Bushing
98 0326642 Lever, shift rod This part replaces 0318539.
99 0320185 Shift lever
100 0313416 Gasket, thermostat
102 0316132 Gormmet, valve
103 0317245 Spring, control valve
104 0386998 Cyl. head kit, high prfm
105 0385416 Powerhead gasket set less cylinder head
