EVINRUDE-JOHNSON 317668 Screw, Coil & Yoke Assy

Write a Review
$1.25
SKU:
317668
Schematic Object Key:
60

EVINRUDE-JOHNSON 317668 Screw, Coil & Yoke Assy

$1.25

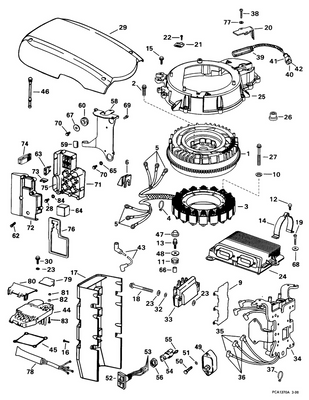

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 317668 Screw, Coil & Yoke Assy

Schematic Object Key : 60

Product Description: Screw, Coil & Yoke Assy

Category: JOHNSON / 1973 / 65 / 65ES73R 1973 / IGNITION SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0583222 Flywheel assy. This part replaces 0581111.
2 0329267 Nut, flywheel This part replaces 0314209.
3 0325042 Screw, starter mounting This part replaces 0317599.
4 0581114 Stator assy, 6 amp
5 0510904 Cosse, transmetteur
6 0510905 Grommet
7 0510780 8 ring termianl
8 0317893 Tie strap
9 0581251 Timer base sensor assy This part replaces 0580970.
10 0510905 Grommet
11 0510904 Cosse, transmetteur
12 0307019 Screw, clamp
13 0510409 Clamp, h.t. lead
14 0314495 Clamp, distributor base
15 0313666 Ret., distributor base 1
16 0318858 Bracket
17 0385804 Motor cable assy
18 0309437 Clip, drapeau
19 0308808 Cosse, plate
20 0204053 Borne, anneau 0,312" 7,9 mm diamètre
21 0204036 10 ring termial,12v
22 0510780 8 ring termianl
23 0510884 Fuse, 20 amp.
24 0510818 Terminal, ring This part replaces 0308294.
25 0510904 Cosse, transmetteur
26 0510905 Grommet
27 0302406 Sleeve
28 0315057 Mount, bracket
29 0328700 Washer This part replaces 0302407.
30 0306418 Screw, anchor block lower
31 0310063 Screw, gearcase to housing This part replaces 0307062.
32 0580895 Lead assy ., ground
33 0510818 Terminal, ring
34 0510904 Cosse, transmetteur
35 0510905 Grommet
36 0510906 Grommer,power pack
37 0317147 Gasket, cover to pack
38 0385023 Cover transfer assy
39 0318278 Insulator
40 0317221 Screw
41 0384997 Power pack
42 0312811 Screw breaker to base
43 0341474 Screw, cover This part replaces 0304606.
44 0333440 Clamp, battery cable This part replaces 0317755.
45 0306049 Screw
46 0580821 Coil assy
47 0581027 Cover terminal assy, spark plug
48 0510983 Sleeve
49 0510767 Ring terminal
50 0510904 Cosse, transmetteur
51 0510905 Grommet
52 0315004 . . jumper, terminal board
53 0310943 "j" clamp, stator wires
54 0328740 Nut, throttle friction This part replaces 0301472.
55 0315182 Clamp, cables
56 0552421 Screw, rectifier mounting
57 0314576 Screw
58 0315003 Screw, teminal to terinmal block
59 0310441 Clamp, small This part replaces 0310493.
60 0317668 Screw, coil yoke assy
61 0307152 Screw, cliipper assemlby
62 0330151 Cable clamp, filter This part replaces 0310440.
63 0313117 Scr,clamp,eng cable
64 0583408 Rectifier lead assy. This part replaces 0580841.
65 0510780 8 ring termianl
66 0511050 Tube, heat shrink
67 0315260 Screw, rectifier mounting
68 0386054 Cover assy
69 0328714 Screw, clip This part replaces 0204027.
70 0510862 Terminal block
71 0376349 Lead, ground
