EVINRUDE-JOHNSON 317930 MTG BRACKET C=6

Write a Review
$8.00
SKU:
317930-OMC
Schematic Object Key:
35

EVINRUDE-JOHNSON 317930 MTG BRACKET C=6

$8.00

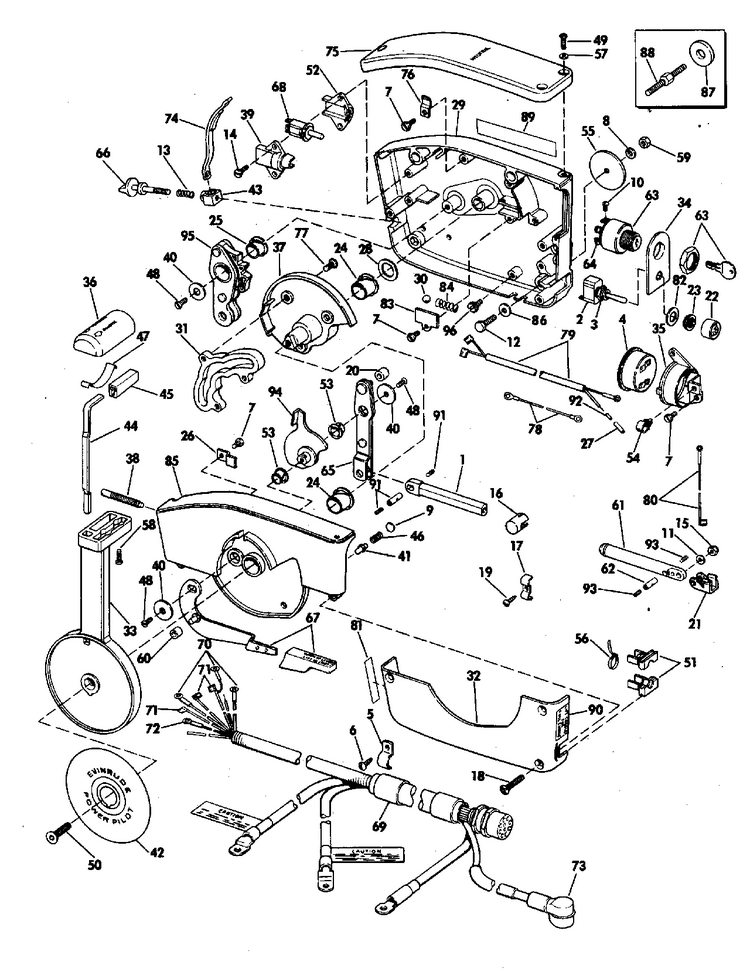

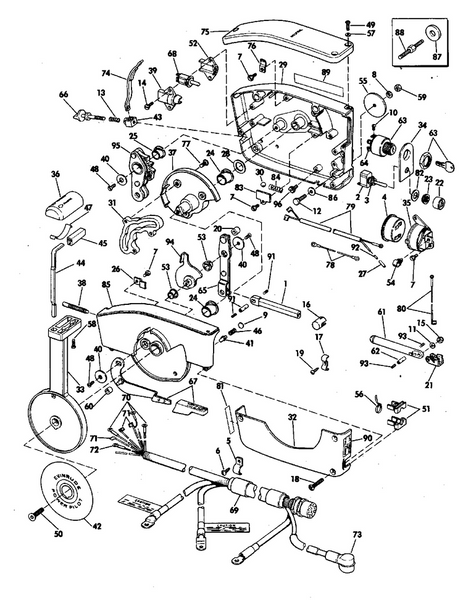

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 317930 Mounting Bracket, Horn

Schematic Object Key : 35

Product Description: Mounting Bracket, Horn

Category: EVINRUDE / 1976 / 85 / 85693D 1976 / REMOTE CONTROL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0206408 Case guide,control hsg.
2 0279175 Choke switch assembly
3 0900185 Ecrou
4 0585992 Horn This part replaces 0279336.
5 0304494 Clamp
6 0305009 Screw
7 0306286 Screw, clamp
8 0306396 Lock washer, control to boat
9 0306442 . core plug
10 0306559 Screw, ignition switch
11 0328737 Washer This part replaces 0306561.
12 0319823 Screw, control housing
13 0307025 Screw,friction adjusting screw
14 0307175 ,,screw ,housing
15 0328064 Nut This part replaces 0554427.
16 0319821 Trunnion cap
17 0308078 Clamp
18 0308527 . screw, access cover to housing
19 0310115 Screw, mounting
20 0310693 ,roller,throttle lever
21 0310729 Spring clip
22 0310781 Cache, interrupteur
23 0310782 Ecrou, interrupteur
24 0314002 Bushing
25 0318645 Bushing shift lever
26 0318821 Guide, warm up link
27 0316198 Heat shrink tubing
28 0317791 Wave washer, plate
29 0319210 Housing
30 0318626 Ball
31 0320610 Cam, throttle
32 0317912 Access cover
33 0317913 Lever
34 0317927 Switch plate
35 0317930 Mounting bracket, horn
36 0318153 Knob
37 0318185 Shift throttle plate
38 0318212 Set screw, warm up lever
39 0318225 Mounting bracket , upper half
40 0318228 Washer, fast idle lever
41 0318231 Dentent,warm up lever
42 0207030 Applique
43 0325191 Nut, friction lever This part replaces 0318269.
44 0319472 Lever, reverse lock
45 0318271 Knob, lever reserve lock
46 0318275 Spring, detent
47 0318276 Spring, reverse lock
48 0318277 Screw
49 0318292 Screw, lever
50 0318293 Clamp, instrument cable
51 0318294 Clamp, instrument cable
52 0318312 ,mounting bracket,neutral start switch
53 0318317 Bushing, lever pivot
54 0318319 Clamp cable
55 0318321 Washer, remote control to boat
56 0318322 Attache câble
57 0318323 Washer, screw cover
58 0318324 Screw, cover mounting
59 0318349 Nut, mounting screw
60 0318362 Roller, warm up lever
61 0385956 Guide o ring assy.
62 0318607 Cable clamp
63 0386947 Ignition switch
64 0306559 Screw, ignition switch
65 0385555 Thortle lever assy
66 0385581 Knob friciton adj.screw assy.
67 0385642 Warm up lever opin assy.
68 0385659 Switch assy, neutral start
69 0385698 Inst cable assy, std
70 0510780 8 ring termianl This part replaces 0204037.
71 0309437 Clip, drapeau
72 0204038 . . . ring terminal
73 0322815 Cover This part replaces 0312970.
74 0385701 Lever arm friction ad assy.
75 0385793 Stylind cover assy
76 0510978 Clamp, lead assy
77 0554330 Screw, cam lever
78 0580829 Lead assy, ground
79 0581096 Lead assy, neutral start
80 0581112 Lead assy, ignition switch to horn
81 0322489 Transfer, throttle friction This part replaces 0318327.
82 0900696 Washer
83 0318624 Cover, detent
84 0318625 Spring, detent
85 0324530 Cover, housing This part replaces 0317810.
86 0306407 Locckwasher,cover latch
0386057 0386057 Optional mount kit
87 0318838 . washer
88 0318837 Stud
89 0207089 Transfer, rmt cont hsg
90 0318326 Transfer, choke
91 0385959 Clamp set sc r.assy.
92 0315072 Splice connector
93 0318605 Set screw
94 0385699 Warm up lin assy
95 0386542 Shift lever assy
96 0329594 Screw, cam follower This part replaces 0303737.
