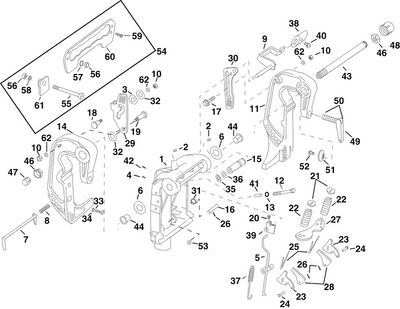

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 44
Product Description: Screw, Stop Link
Category: EVINRUDE / 1973 / 50 / 50302R 1973 / EXHAUST HOUSING ELECTRIC START
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0317731 | Swivel bracker, std | |
1 | 0317730 | Swivel bracket, long | |
2 | 0313607 | Lube fitting | |
3 | 0313880 | Bushing, lower | |
4 | 0317776 | Seal | |
5 | 0318298 | Seal, lower | |
6 | 0357732 | Plate,transom | This part replaces 0315772. |
7 | 0357733 | Pad | This part replaces 0315774. |
8 | 0303776 | Screw | |
9 | 0315776 | Rondelle | |
10 | 0309192 | Rondelle | This part replaces 0120196. |
11 | 0363253 | Nut,lock | This part replaces 0310702. |
12 | 0363013 | Screw | This part replaces 0316974. |
13 | 0308743 | Screw, injector to manifold | |
14 | 0318165 | Dispositif de retenue, tringlerie de carburateur | |
15 | 0317782 | Thrust washer | |
16 | 0318160 | Tube, tilt bracket | |
17 | 0436212 | Thrust rod assembly | This part replaces 0385787. |
18 | 0315013 | Rivelt,thrust rod | |
19 | 0318386 | Retainer | |
20 | 0307068 | Spring thrust rod | |
21 | 0386651 | Lever shaft | This part replaces 0385657. |
22 | 0333871 | Lever, locking | This part replaces 0315963. |
23 | 0391940 | Stern bracket, port | This part replaces 0385507. |
24 | 0388053 | Clamp scr and hand assy | This part replaces 0384845. |
25 | 0315571 | . swivel plate | |
26 | 0302420 | . retainer | |
27 | 0391939 | Stern bracket, starboard | This part replaces 0385508. |
28 | 0315860 | Cover water tube | |
29 | 0390534 | Arm shaft assy., std | This part replaces 0385538. |
29 | 0390535 | Arm shaft assy., long | This part replaces 0385539. |
30 | 0318295 | Thrust washer, upper | |
31 | 0318296 | Thrust washer, lower | |
32 | 0318168 | Bushing | |
33 | 0315961 | Pin, link to bracett | |
34 | 0302858 | Cotter pin, shoulder bolt | |
35 | 0386651 | Lever shaft | This part replaces 0318175. |
36 | 0386651 | Lever shaft | This part replaces 0318171. |
37 | 0319254 | Screw | |
38 | 0351018 | Gasket, adapter to powerhead | This part replaces 0315852. |
39 | 0314007 | . cup, reverse lock spring | |
40 | 0313817 | . spring, reverse lock | |
41 | 0315964 | . link, reverse lock | |
42 | 0315962 | . pin, link to lever | |
43 | 0315965 | . retainer, spring | |
44 | 0318167 | Screw, stop link | |
45 | 0314031 | Spring washer, stop link | |
46 | 0313838 | Nut, bracket to steering arm | |
47 | 0315960 | Stop link, starboard | |
48 | 0385656 | Stop link, port | |
49 | 0315085 | O ring, driveshaft to crankcase | |
50 | 0315967 | Spirng, link | |
51 | 0552499 | Washer, link pin | |
52 | 0321234 | . plate, reverse lock | This part replaces 0318180. |
53 | 0552940 | Screw, mounting | This part replaces 0313699. |
54 | 0306470 | Lock washer | |
55 | 0323599 | Locknut | This part replaces 0316828. |
56 | 0315450 | Adapter, exhaust housing | |
57 | 0309705 | Screw | |
58 | 0328724 | Screw | This part replaces 0308738. |
59 | 0315954 | Exh housing, inner upper | |
60 | 0315957 | Exh housing, inner lower, std | |
61 | 0340782 | Exh. housing, outer | This part replaces 0317931. |
61 | 0317932 | Exh hsg, outer, long | |
62 | 0552940 | Screw, mounting | This part replaces 0313699. |
63 | 0351019 | Gasket, adapter to housing | This part replaces 0315861. |
64 | 0350796 | Cover, exhaust housing, front | This part replaces 0315445. |
65 | 0340785 | Cover, exh. hsg., rear | This part replaces 0315446. |
66 | 0328694 | Screw, bracket | This part replaces 0310861. |
67 | 0315955 | Seal, inner to outer housing | |
68 | 0316065 | Seal, exhaust housing, rear | |
69 | 0315956 | Seal, lower to outer housing | |
70 | 0436470 | Mount, upper | This part replaces 0383960. |
71 | 0383961 | Mount, thrust | |
72 | 0388411 | Rubber mount, lower | This part replaces 0384071. |
73 | 0306470 | Lock washer | |
74 | 0318170 | Guard | |
75 | 0552940 | Screw, mounting | This part replaces 0313699. |
76 | 0302290 | Washer | |
77 | 0329894 | Screw | This part replaces 0302510. |
78 | 0322074 | Mount bracket | This part replaces 0317814. |
79 | 0306470 | Lock washer | |
80 | 0316109 | Screw, starter mounting, long | |
81 | 0316055 | Cover, mount bracket | |
82 | 0316233 | Screw, cover to bracket | |
83 | 0306387 | . cotter pin, connector to guide | |
84 | 0315864 | Cover, exhaust relief | |
85 | 0329826 | Cover, relief cover | This part replaces 0315865. |
86 | 0305143 | Screw, by pass cover | |
87 | 0318307 | Clamp,cable casing guide | |
88 | 0306423 | Bolt | |
89 | 0306470 | Lock washer | |
90 | 0317648 | Screw, upper mount | |
91 | 0313581 | Bumber, mount screw | |
92 | 0321232 | Retainer washer | This part replaces 0313546. |
93 | 0313580 | Washer | |
94 | 0322309 | Washer tube, std. | This part replaces 0315862. |
94 | 0340216 | Water tube | This part replaces 0315863. |
95 | 0315859 | Grommet, tube to adapter | |
96 | 0317559 | Plug, adapter | |
97 | 0317894 | Cap, tilt tube | |
98 | 0329012 | Knob tilt reverse lock handle | This part replaces 0318157. |
99 | 0318238 | Screw | |
100 | 0318166 | Spring, reverse lock | |
101 | 0318169 | Washer, lever shaft | |
102 | 0318173 | Plug, stop switch | |
103 | 0313848 | Screw, stop link | |
104 | 0313849 | Screw, stop lin to stern brkt. |
