EVINRUDE-JOHNSON 318257 Bushing, Tilt Lock Shaft

Write a Review
$69.99
SKU:
318257
Schematic Object Key:
70

EVINRUDE-JOHNSON 318257 Bushing, Tilt Lock Shaft

$69.99

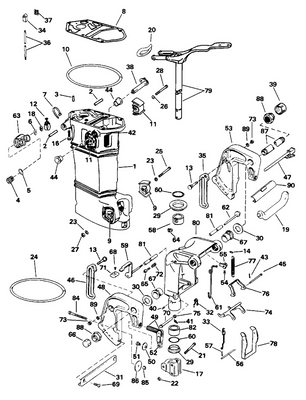

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 318257 Bushing, Tilt Lock Shaft

Schematic Object Key : 70

Product Description: Bushing, Tilt Lock Shaft

Category: JOHNSON / 1973 / 65 / 65ESL73R 1973 / EXHAUST HOUSING - 20" TRANSOM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0385668 Swivel bracket
2 0313607 Lube fitting
3 0317783 Bushing
4 0318158 Seal
5 0302290 Washer
6 0317782 Thrust washer
7 0317769 Tilt tube
8 0385512 Thrust rod assembly
9 0317781 Spring, thrust rod
10 0385703 Shaft lever assembly
11 0318222 Locking lever
12 0319788 Stern bracket, starboard This part replaces 0317737.
13 0386005 Stern bracket lock pin, port
14 0303218 Groove pin
15 0303230 Spring, shift lever
16 0318906 Lock pin
17 0323599 Locknut This part replaces 0316828.
18 0324334 Screw This part replaces 0302820.
19 0315023 Pin, link
20 0318221 Link, reverse lock starboard
21 0318220 Link, reverse lock port
22 0318289 Spring, reverse lock
23 0317784 Plate, sterm bracket
24 0302858 Cotter pin, shoulder bolt
25 0319979 Rod, rev lock release This part replaces 0318219.
26 0307708 Lock washer, mounting
27 0305282 Bolt, bowl suction piece This part replaces 0301218.
28 0385691 Tilt lock
29 0317833 Mount bracket assy
30 0340777 Cover, housing, rear This part replaces 0206006.
31 0314024 Seal housing, outer
32 0318181 Exhaust housing, outer
33 0315022 Pin, link to locking lever
34 0133022 Screw
35 0120255 Lockwasher
36 0315028 Pivot pin, shjock absorber
37 0302804 Cotter in
38 0307764 Washer, inner
39 0385552 Steering arm assy, long
40 0315222 Bushing shock absorb
41 0385532 Shock absorber
42 0313784 Cover, mount bracker
43 0314245 Screw
44 0318159 Nut, mount bracket
45 0317788 Thrust washer, pivot shaft
46 0318280 Pin, tilt lock
47 0316208 Spacer, line reverse lock
48 0384896 Rubber mount assebmly
49 0206008 Cover, exh housing, front
50 0313763 Gasket, adapter
51 0315081 Bushing, shoulder screw
52 0318287 Adapter, exhaust housing
53 0306470 Lock washer
54 0302290 Washer
55 0329894 Screw This part replaces 0302510.
56 0317235 Water tube, inlet
57 0313402 Exhaust housing, inner
58 0317293 Gasket, housing to adapter
59 0305181 Coupling, flange
60 0306423 Bolt
61 0306446 Screw, coupling to adapter
62 0305745 Scr., lwr. mtr. cover frt. and rear
63 0305145 Grommet
64 0384897 Rubber mount
65 0317793 Spacer
66 0319787 Bushing This part replaces 0317789.
67 0318290 Spring, reverse lock
68 0317768 . . pivot pin
69 0316403 Spring washer
70 0318257 Bushing, tilt lock shaft
71 0318256 Bellcrank, reverse lock
72 0318291 Ret.ring, tilt lock bushing
73 0319108 Screw belcrank
74 0204406 Washer, tilt lock lever
75 0313219 Washer
76 0317792 Keeper, pivot shaft
77 0127386 Rondelle This part replaces 0303913.
78 0552906 Cotter pin, upper pivot
79 0303775 Wahser, lever to hsg
80 0313785 Grommet
81 0321232 Retainer washer This part replaces 0313546.
82 0313580 Washer
83 0313581 Bumber, mount screw
84 0306503 Screw, adjustment rod
85 0382388 Thrust mount assembly
86 0329894 Screw This part replaces 0302510.
87 0314898 L'nut, stud, alt frt
88 0552940 Screw, mounting This part replaces 0313699.
89 0314059 Seal, adapter to cover
90 0317919 Screw, rubber mount upper to bracket
91 0329012 Knob tilt reverse lock handle This part replaces 0318157.
92 0318238 Screw
93 0318173 Plug, stop switch
94 0317894 Cap, tilt tube
