EVINRUDE-JOHNSON 318386 Retainer

Write a Review
$7.79
SKU:
318386
Schematic Object Key:
19

EVINRUDE-JOHNSON 318386 Retainer

$7.79

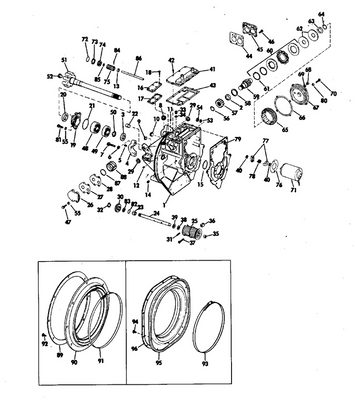

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 318386 Retainer

Schematic Object Key : 19

Product Description: Retainer

Category: EVINRUDE / 1973 / 50 / 50302R 1973 / EXHAUST HOUSING ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0317731 Swivel bracker, std
1 0317730 Swivel bracket, long
2 0313607 Lube fitting
3 0313880 Bushing, lower
4 0317776 Seal
5 0318298 Seal, lower
6 0357732 Plate,transom This part replaces 0315772.
7 0357733 Pad This part replaces 0315774.
8 0303776 Screw
9 0315776 Rondelle
10 0309192 Rondelle This part replaces 0120196.
11 0363253 Nut,lock This part replaces 0310702.
12 0363013 Screw This part replaces 0316974.
13 0308743 Screw, injector to manifold
14 0318165 Dispositif de retenue, tringlerie de carburateur
15 0317782 Thrust washer
16 0318160 Tube, tilt bracket
17 0436212 Thrust rod assembly This part replaces 0385787.
18 0315013 Rivelt,thrust rod
19 0318386 Retainer
20 0307068 Spring thrust rod
21 0386651 Lever shaft This part replaces 0385657.
22 0333871 Lever, locking This part replaces 0315963.
23 0391940 Stern bracket, port This part replaces 0385507.
24 0388053 Clamp scr and hand assy This part replaces 0384845.
25 0315571 . swivel plate
26 0302420 . retainer
27 0391939 Stern bracket, starboard This part replaces 0385508.
28 0315860 Cover water tube
29 0390534 Arm shaft assy., std This part replaces 0385538.
29 0390535 Arm shaft assy., long This part replaces 0385539.
30 0318295 Thrust washer, upper
31 0318296 Thrust washer, lower
32 0318168 Bushing
33 0315961 Pin, link to bracett
34 0302858 Cotter pin, shoulder bolt
35 0386651 Lever shaft This part replaces 0318175.
36 0386651 Lever shaft This part replaces 0318171.
37 0319254 Screw
38 0351018 Gasket, adapter to powerhead This part replaces 0315852.
39 0314007 . cup, reverse lock spring
40 0313817 . spring, reverse lock
41 0315964 . link, reverse lock
42 0315962 . pin, link to lever
43 0315965 . retainer, spring
44 0318167 Screw, stop link
45 0314031 Spring washer, stop link
46 0313838 Nut, bracket to steering arm
47 0315960 Stop link, starboard
48 0385656 Stop link, port
49 0315085 O ring, driveshaft to crankcase
50 0315967 Spirng, link
51 0552499 Washer, link pin
52 0321234 . plate, reverse lock This part replaces 0318180.
53 0552940 Screw, mounting This part replaces 0313699.
54 0306470 Lock washer
55 0323599 Locknut This part replaces 0316828.
56 0315450 Adapter, exhaust housing
57 0309705 Screw
58 0328724 Screw This part replaces 0308738.
59 0315954 Exh housing, inner upper
60 0315957 Exh housing, inner lower, std
61 0340782 Exh. housing, outer This part replaces 0317931.
61 0317932 Exh hsg, outer, long
62 0552940 Screw, mounting This part replaces 0313699.
63 0351019 Gasket, adapter to housing This part replaces 0315861.
64 0350796 Cover, exhaust housing, front This part replaces 0315445.
65 0340785 Cover, exh. hsg., rear This part replaces 0315446.
66 0328694 Screw, bracket This part replaces 0310861.
67 0315955 Seal, inner to outer housing
68 0316065 Seal, exhaust housing, rear
69 0315956 Seal, lower to outer housing
70 0436470 Mount, upper This part replaces 0383960.
71 0383961 Mount, thrust
72 0388411 Rubber mount, lower This part replaces 0384071.
73 0306470 Lock washer
74 0318170 Guard
75 0552940 Screw, mounting This part replaces 0313699.
76 0302290 Washer
77 0329894 Screw This part replaces 0302510.
78 0322074 Mount bracket This part replaces 0317814.
79 0306470 Lock washer
80 0316109 Screw, starter mounting, long
81 0316055 Cover, mount bracket
82 0316233 Screw, cover to bracket
83 0306387 . cotter pin, connector to guide
84 0315864 Cover, exhaust relief
85 0329826 Cover, relief cover This part replaces 0315865.
86 0305143 Screw, by pass cover
87 0318307 Clamp,cable casing guide
88 0306423 Bolt
89 0306470 Lock washer
90 0317648 Screw, upper mount
91 0313581 Bumber, mount screw
92 0321232 Retainer washer This part replaces 0313546.
93 0313580 Washer
94 0322309 Washer tube, std. This part replaces 0315862.
94 0340216 Water tube This part replaces 0315863.
95 0315859 Grommet, tube to adapter
96 0317559 Plug, adapter
97 0317894 Cap, tilt tube
98 0329012 Knob tilt reverse lock handle This part replaces 0318157.
99 0318238 Screw
100 0318166 Spring, reverse lock
101 0318169 Washer, lever shaft
102 0318173 Plug, stop switch
103 0313848 Screw, stop link
104 0313849 Screw, stop lin to stern brkt.
