EVINRUDE-JOHNSON 318717 0-RING 5PK C=4 PKG=5

Write a Review
$5.00
SKU:
318717-OMC
Schematic Object Key:
40

EVINRUDE-JOHNSON 318717 0-RING 5PK C=4 PKG=5

$5.00

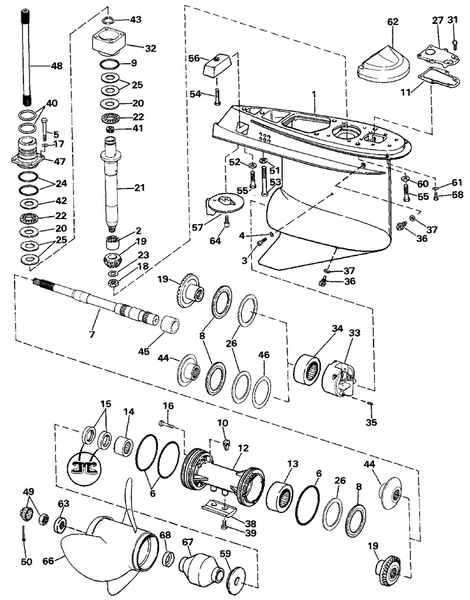

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 318717 O-Ring, Bearing Hsg

Schematic Object Key : 40

Product Description: O-Ring, Bearing Hsg

Category: STERN DRIVE / 1988 / 7.4 / 744AMRGDP 1988 / LOWER GEARCASE - 370 MODEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0984846 0984846 Gearcase assy., complete
0984829 0984829 Gearcase assy., complete
1 0984818 Gearcase bearing assy.
2 0391471 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0912680 Screw, housing to gearcase
6 0326849 O ring, propshaft housing
7 0984811 Propeller shaft assy.
8 0391473 Thrust bearing, forward gear
9 0354731 O ring This part replaces 0314728.
10 0332091 Retainer, bearing housing
11 0912388 Gasket, cover
12 0984815 Bearing hsg. seal assy.
13 0391505 Bearing
14 0387247 . needle bearing assy.
15 0320862 . seal
16 0913432 Screw
17 0301250 Rondelle
18 0314730 Nut, pinion to driveshaft
19 0985712 Gear set, inc. fwd. pinion
20 0327656 Rondelle de butée, arbre d'entraînement
21 0912677 Driveshaft assy.
22 0387656 Butée, arbre d'entraînement
23 0913543 Spring washer, pinion nut
24 0354731 O ring This part replaces 0314728.
25 0323362 Cale, 0,003" 0,07 mm
25 0323361 Cale, 0,004" 0,10 mm
25 0314745 Cale, 0,005" 0,12 mm
26 0326733 Thrust washer
27 0913428 Cover, gearcase
31 0304027 Screw
32 0984972 Bearing housing
33 0985621 Housing bearing assy.
35 0331880 Pin, housing to gearcase
36 0318544 Screw, fill drain
37 0333572 O ring
38 0431708 Anode, bearing housing This part replaces 0397111.
39 0908158 Screw, anode
40 0318717 O ring, bearing hsg
41 0911710 Plug, shaft support
42 0912681 Washer, thrust
43 0912682 Retaining ring, driveshaft
44 0913474 Bushing, thrust.
45 0912675 Sleeve
46 0912776 Shim, 0.002"
46 0912777 Shim, 0.003"
46 0912778 Shim, 0.004"
46 0912779 Shim, 0.005"
46 0912780 Shim, 0.010"
47 0912676 Sleeve, bearing housing
48 0911709 Driveshaft
49 5008966 Nut keeper, propeller This part replaces 0398042.
50 0306394 Cotter pin
51 0326784 Washer, screw
52 0326785 Washer
53 0331998 Screw, gearcase to housing
54 0332746 Screw, anode
55 0331999 Screw, gearcase housing
56 0397768 Anode
57 0913239 Trim tab, gearcase
57 0913238 Trim tab, gearcase
58 0912127 Screw, hook
59 0333592 Thrust bushing
60 0330266 Washer, trail lock lever
61 0328701 Lockwasher, double ended bolt
62 3853818 Anode, gearcase This part replaces 0984513.
63 0320570 Spacer, nut
64 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0431930 Propeller, 15 x 17 sss ii
66 0390821 Propeller, 14 1 2 x 19 sst ii
66 0390822 Propeller 14 1 4 x 21
66 0390823 Propeller 14 1 4 x 23
66 0398502 Propeller, 14 1 2 x 20 racker
66 0398503 Lh raker 14 1 2 x 22
66 0398504 Lh raker 14 1 2 x 24
66 0398505 Lh raker 14 1 2 x 26
66 0398506 Lh raker 14 1 2 x 28
66 0174890 Propeller 15 x 17 omc viper
66 0174811 Propeller, 14 1 2 x 19 omc viper
66 0174812 Propeller, 14 1 2 x 21 omc viper
66 0174813 Lh viper 14 1 4 x 23
66 0391290 Prop, 15 x 17 sst
66 0389924 Prop, 14 1 2 x 19 sst
66 0389923 Prop, 14 1 2 x 21 sst
66 0389019 Prop, 14 1 2 x 23 sst
66 0394752 Propeller, 14 1 2 x 18 omc raker
66 0394753 Propeller, 14 1 2 x 20 omc raker
66 0394754 Propeller, 14 1 2 x 22 omc raker
66 0394755 Propeller, 13 1 2 x 24 omc raker
66 0394756 Propeller, 14 1 2 x 26 omc raker
66 0394757 Propeller, 14 1 2 x 28 omc raker
66 0174889 Propeller, 15 x 17 omc viper
66 0174814 Propeller, 14 1 2 x 19 omc viper
66 0174815 Propeller, 14 1 2 x 21 omc viper
66 0174816 Propeller, 14 1 2 x 23 omc viper
67 0387157 Bushing assy, prop, std
68 0313926 Propeller hub sleeve
