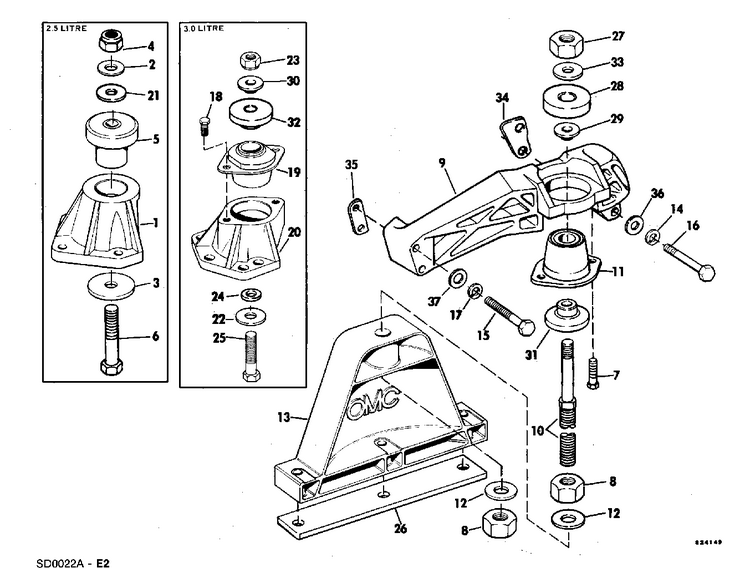

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 36
Product Description: Washer
Category: STERN DRIVE / 1982 / 3 / 302STHRCNC 1982 / ENGINE MOUNT GROUP 2.5, 3.0 LITRE MODELS WITH PRE-SET TRIM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0910061 | Bracket, mount stringer | |
2 | 0908197 | Washer | |
3 | 3852428 | Washer, lower | This part replaces 0907857. |
4 | 0909634 | Locknut | |
5 | 0979722 | Rubber mount | |
6 | 0318370 | Screw | |
7 | 3852474 | Screw, mount to bracket | This part replaces 0909682. |
8 | 3852436 | Nut | This part replaces 0908233. |
9 | 0909052 | Bracket, engine front | |
10 | 0981739 | Rubber mount assy | |
11 | 3853789 | Eccentric, fuel pump, inner | This part replaces 0980809. |
12 | 3852000 | Washer, mount | This part replaces 0103960. |
13 | 0908829 | Mount, front, long base | |
13 | 0981551 | Adapter hsg std assy | |
14 | 0303269 | L'washer, upper | |
15 | 0306837 | Screw bracket | |
16 | 0910087 | Screw, bracket to engine port | |
17 | 0120177 | L'washer, alternator to brkt | |
18 | 3852474 | Screw, mount to bracket | This part replaces 0909682. |
19 | 3853789 | Eccentric, fuel pump, inner | This part replaces 0980809. |
20 | 0910597 | Bracket, rear | |
20 | 0909713 | Bracket, mount stringer | |
21 | 0909633 | Washer | |
22 | 3853788 | Rebound washer assy. | This part replaces 0980808. |
23 | 0313650 | Nut | |
24 | 0909944 | Space, mount lower | |
25 | 0548941 | Screw | |
26 | 0908830 | Pad | |
27 | 0313650 | Nut | |
28 | 3853788 | Rebound washer assy. | This part replaces 0980808. |
29 | 0909944 | Space, mount lower | |
30 | 0909684 | Washer | |
31 | 0909683 | Spacer mount | |
32 | 0910358 | Spacer, mount | |
33 | 3852422 | Washer, upper | This part replaces 0907826. |
34 | 0910085 | Plate, backup, front mount port | |
35 | 0910086 | Plate, backup, front mount, starboard | |
36 | 0318941 | Washer | |
37 | 0304671 | Lockwasher, coupler to flywheel |
