EVINRUDE-JOHNSON 319046 Bushing, Tilt Lock Shaft To Sw. Brkt.

Write a Review
$7.00
SKU:
319046-OMC
Schematic Object Key:
23

EVINRUDE-JOHNSON 319046 Bushing, Tilt Lock Shaft To Sw. Brkt.

$7.00

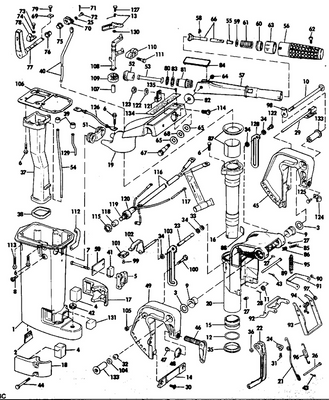

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 319046 Bushing, Tilt Lock Shaft To Sw. Brkt.

Schematic Object Key : 23

Product Description: Bushing, Tilt Lock Shaft To Sw. Brkt.

Category: EVINRUDE / 1983 / 15 / E15ECTR 1983 / EXHAUST HOUSING-9.9"C" MODELS,15 ROPE "R" MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0391578 Exhaust housing assy on 15 hp use p n 432442 on 9.9 hp use p n 432496
2 0322210 Baffle , exhaust hsg.
3 0432294 Screw nut assembly This part replaces 0313966.
4 0318997 Lateral mount, lower
5 0386033 Mount assy,.upper
6 0324334 Screw
7 0313600 Screw, upper mounts to steering bracket
8 0319125 Screw
9 0300364 Link, conical, tilt shaft
10 0319756 Bolt, tilting shaft
11 0302051 Spring tilting bolt
12 0301917 O ring
13 0391105 Starter pawl spring
14 0309738 Plate stern bracket
15 0309967 Bushing, pilot shaft, lower
16 0318528 Pilot shaft, swivel brkt.
17 0329021 Mount bracket, lower port This part replaces 0322288.
17 0329021 Mount bracket, lower port
18 0329020 Mount bracket, lower, stbd This part replaces 0322289.
18 0329020 Mount bracket, lower, stbd
19 0395463 Steering bracket This part replaces 0320686.
20 0329102 Swivel bracket
21 0320416 Wire, reverse lock release
22 0338874 Carrying handle This part replaces 0318956.
23 0319046 Bushing, tilt lock shaft to sw. brkt.
24 0319049 Bell crank, reverse lock
25 0304380 , bow
26 0326943 Pin, link to lock lever
27 0313607 Lube fitting
28 0319270 Spring, tilt lock bushing
29 0432453 Knob tilt pin assy. This part replaces 0390441.
30 0308684 Screw, cover to housing
31 0319108 Screw belcrank
32 0315077 Locknut, 3 8 24 ss This part replaces 0325451.
33 0301983 Conicak washer,stern brkt
34 0308052 Washer
35 0309966 Thrust washer, lower swivel bracket
36 0310540 .washer, shaft
37 0330439 Exhaust tube, inner This part replaces 0324048.
37 0330440 Exhaust tube, inner This part replaces 0325333.
38 0318996 Seal, inner to outer exh, hsg
39 0324045 Grommer, upper, water tube
40 0319124 Shift rod, upper
41 0318993 Thrust mount upper
41 0329045 Thrust mount, upper
42 0319229 Grommet, exh, hsg, to shift rod
43 0305650 Cotter pin
44 0319042 Screw bracket and clampscrew assy., port
45 0327928 Stern bracket, port This part replaces 0392831.
46 0391421 Clamp screw handle
46 0433675 Clamp scr. hand. assy. This part replaces 0388347.
47 0321922 Screw, shoulder
48 0337017 Plate, swivel This part replaces 0307561.
49 0327929 Stern brkt., stbd. This part replaces 0392832.
50 0319084 Link, upper mounts
50 0339613 Plate, upper mounts This part replaces 0329047.
51 0318989 Seal, upper mounts exh. hsg.
53 0319006 Shaft, link to starter interlock bellcrank
54 0395122 Water tube grommet, inlet, std. This part replaces 0326994.
54 0395123 Eater tube, long This part replaces 0326995.
54 0395124 Water tube This part replaces 0328304.
55 0319089 Bushing
56 0393556 Grip sleeve assy.
57 0322133 Steering handle
58 0322134 Retaining ring
59 0303252 Wahser, grip spring
60 0303282 Block
61 0301656 Spring
62 0310303 1
63 0320842 Plate
64 0320266 Locknut, cooler bracket
65 0319278 Rondelle, pivot
66 0390680 Gear shaft assy.
67 0318977 Screw, stgr. hdle. to brkt
68 0319041 Bow washer, scerw to brkt
69 0319537 Clip
70 0320790 Bellcrank, shift rod
71 0305650 Cotter pin
72 0319541 Pin, bellcrank to shift rod
73 0319563 Scerw, lever to shaft
74 0311407 Lockwasher, lever to shaft
75 0318950 Bushing, shift lever to motor cover, inner
76 0318951 Bushing, shift lever to c'case
77 0392878 Shift lever bracket to hsg.
78 0320931 Lever, shaft lever to shift lock link.
79 0308017 Screw, bellcrank to shift lever
80 0908141 Retaining ring
81 0389720 Gear bushing assy., strg. hdl.
82 0304278 Washer
83 0319316 Rondelle, tube de direction
84 0319339 Cover, steering hdl. gears
85 0313035 Screw
86 0551113 Ressort de friction de direction
87 0397736 Block assy., friction This part replaces 0388748.
88 0397736 Block assy., friction This part replaces 0319086.
89 0319055 Pin, link to bracket
90 0310540 .washer, shaft
91 0319050 Lever, reverse locking
92 0322949 Link, reverse lock
93 0338657 Link, shallow water drive This part replaces 0320426.
94 0320427 Spring, shallow water drive
95 0319279 Spring, reverse lock
96 0320428 Spring, reverse lock rod
97 0204293 Washer, hinge pin
98 0304278 Washer
99 0319227 Screw, knob
100 0319047 Pin, tilt lock to stern bracket
101 0328048 Knob, tilt reverse lock lever
102 0386163 Lever shaft assy,.lock
104 0604174 Washer, tilt bolt
105 0313022 Locknut, double ended bolt
106 0325721 Gasket, cyl. c'case to lower engine cover
107 0321997 Pin, control shaft lever
109 0319035 Gear, vertical control shaft
110 0327588 Bearing clamp, control shaft
111 0908159 Screw, bearing clamp
112 0319280 Sea.,exhaust housing to lower motor cover
113 0319126 Screw, muffler, upper
114 0800177 Screw
115 0319601 . nut, switch
117 0510780 8 ring termianl
118 0321963 Boot, switch
120 0511532 Tubing, starter switch
122 0306799 L'washer,bracket to hsg.
123 0306932 Nut
126 0376349 Lead, ground
127 0323700 Screw, pawl to control shaft
128 0393204 Lever link assy.
130 0308279 Washer
131 0318994 Thrust mount, lower
131 0329046 Thrust mount
132 0315776 Rondelle
133 0327969 Écrou de blocage
134 0321792 Plate, starting instructions
135 0308873 Drivescrew, applique to lever
