EVINRUDE-JOHNSON 319658 Cotter Pin, Prop

Write a Review
$2.55
SKU:
319658
Schematic Object Key:
107

EVINRUDE-JOHNSON 319658 Cotter Pin, Prop

$2.55

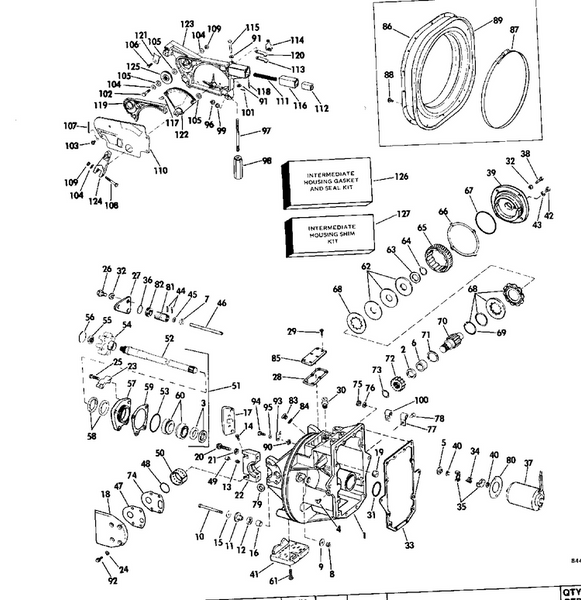

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 319658 Cotter Pin, Prop

Schematic Object Key : 107

Product Description: Cotter Pin, Prop

Category: STERN DRIVE / 1978 / 120 / 990243H1 1978 / INTERMEDIATE HOUSING GROUP 120 & 140

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0982857 Intermediate housing assy This part replaces 0981555.
2 0908957 Oil retainer, clutch
3 0313992 Oil retainer, shaft
4 0319253 Fitting, c c lubrication This part replaces 0909517.
4 0313607 Lube fitting
5 0909513 Reatiner , nylon
6 0909501 Bushing
7 0909499 Bushing, tilt worm shaft
8 3852420 Locknut, throttle lever This part replaces 0900402.
9 0310055 Washer, control mounting
10 0318803 Screw
11 0908853 Plug
12 0908855 Sea , steering shaft
13 0908768 Fitting, lubrication
14 3852459 Screw, switch This part replaces 0908769.
15 0902041 Washer, screw plug
16 0908933 Bushing
17 0909512 Bumper
18 0909516 Cover, pivot cap
19 0908276 Cap plug
20 0314614 Screw, pivot cap
21 0307708 Lock washer, mounting This part replaces 0302865.
22 0909578 Pivot cap
23 0909267 Water deflector, bail gear
24 0302290 Washer
25 0341013 Screw, cover This part replaces 0908668.
26 0909386 Screw, housing to gearcase
27 0909387 Retainer plat
28 0313246 Gasket, cover
29 0307195 Screw rectifier mounting
30 0908196 Nipple
30 0316521 Nipple, housing
31 0302337 O ring, bearing housing
32 0302290 Washer
33 0909515 Gasket
34 0309267 Spring
35 0980274 Coupling key
36 0302540 "o" ring, carbon
37 0382138 Power piston assy
38 0909386 Screw, housing to gearcase
39 0908564 Cover
40 0310612 Washer
41 0982438 Gound plate This part replaces 0980756.
42 0307551 Screw
43 0311598 Seal
44 0309525 Pin, tilt worm shaft
45 0309272 Washer
46 0980183 Shaft, tilt worm
47 0909529 Gasket
48 0308626 O ring
49 0908247 Cap
50 0308602 Liner
51 0981550 D'shaft ball gear assy
52 0909044 Driveshaft
53 0908383 O ring, retainer
54 0908063 Ball gear
55 0908064 Nut
56 0908062 Plug, bail gear
57 0981554 Reatiner seal assy
58 0981195 . seal
59 0909502 Shim , seal retainer, .002"
59 0909503 Shim, seal retainer, .003"
59 0909504 Shim, seal retainer, .004"
59 0909505 Shim, seal retainer, .005"
59 0909506 Shim, seal retainer, .006"
60 3854250 Bearing, driveshaft, upper This part replaces 0979986.
61 0312978 Screen, ground plt to intmd hsg
62 0308809 Belleville spring
63 0309845 Spacer
64 0309844 Retaining ring
65 0308806 Worm wheel
66 0308799 Gasket
67 0908194 0 ring, tilt unit cover
68 0380561 Clutch disc shim pkg
69 0308804 . retaining ring
0980292 0980292 . tilt clutch shim package
70 0982593 Shaft, tilt clutch This part replaces 0980031.
71 0308800 Thrust washer
72 0308453 Gear
73 0911318 Retaining ring This part replaces 0308633.
74 0909578 Pivot cap
75 0313457 Nut, adapter stud
76 0306453 Lockwasher, fuel pump
77 0316993 Clamp, batter cable
78 0311415 Screw, cable clamp
79 0313244 Seal
80 0311508 Gasket
81 0908168 Worm
82 0980182 Retainer bushing
83 0313224 Plug,oil fill
84 0315189 Gasket, oil indicator
85 0313247 Cover, oil reservoir
0981558 0981558 Ransom seal asy, oval
86 0911827 Plate, transom seal This part replaces 0909526.
87 0981679 Clamp, seal
88 0325539 Screw, sceen to gearcase This part replaces 0312270.
89 0909527 Screw, transom
90 0306799 L'washer,bracket to hsg.
91 0303887 Washeer, pin to swivel bracket
92 0909533 Screw, adapter
93 0910327 Retainer,shift cable This part replaces 0909358.
94 0330437 Screw This part replaces 0322726.
95 0306470 Lock washer
96 0312329 Nut
97 0910005 Stud This part replaces 0909746.
98 0909662 Spacer, stud to adapter housing
99 0306325 . . lockwasher, solenoid screw
101 0305650 Cotter pin
103 0303311 Scr,clamp,eng cable
104 0120590 Washer lever arm, pulley
106 0318468 Scraew, latch to handle
107 0319658 Cotter pin, prop
108 0600014 Screw
109 0313022 Locknut, double ended bolt
110 0981893 Cover, shift housing
112 0909334 Rack, cable tensioner
113 0909335 Pawl, tensioner, long
114 0909336 Spring, tensioner
115 0909337 Pin, pawl to housing
116 0909338 Linder,cable tensioner
118 0909357 Roll pin, rack to housing
119 0909477 Guide, cables
120 0909599 Paul,tensioner,short
121 0909790 Retainer
122 0981892 Pulley segment shaft assy
123 0981322 Housing, bearings seal assy
124 0981324 Lever arm pin assembly
125 0981346 Ideler pulley bearing assy
127 0982053 Inter housing shim kit
