EVINRUDE-JOHNSON 319938 Throttle Value

Write a Review
$1.49
SKU:
319938

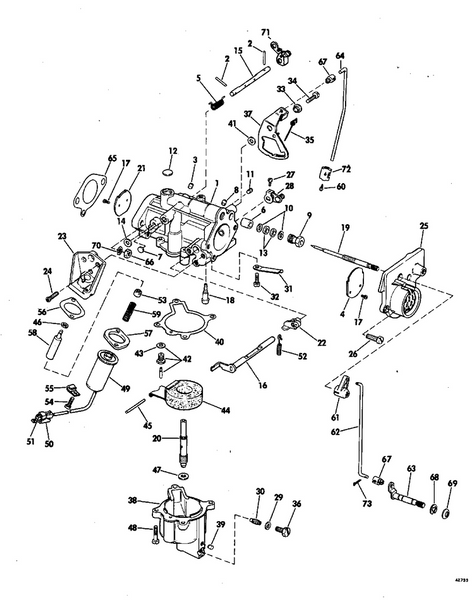

Schematic Object Key:
21

EVINRUDE-JOHNSON 319938 Throttle Value

$1.49

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 319938 Throttle Value

Schematic Object Key : 21

Product Description: Throttle Value

Category: JOHNSON / 1974 / 40 / 40EL74S 1974 / CARBURETOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0386646 0386646 Carburetor assy
0386647 0386647 Carburetor assy
1 0386648 Body assy
1 0386649 Body assy
2 0303261 Roll pin, return spring
3 0301732 . plug
4 0302674 .valve, choke
5 0302696 .spring, throttle shaft
6 0303939 ,,bushing, needle valve, slow speed
7 0303962 .plug, core
8 0304105 .plug, body
9 0305507 .nut, packing
10 0306027 Washer, packing
11 0306099 .plug, fuel passage, long
12 0306392 .plug, core
13 0307583 Packing, valve
14 0307596 . washer, throttle shaft
15 0309242 .shaft, throttle
16 0310941 .shaft, choke
16 0379491 .shaft, choke
17 0312852 . screw, throt. choke valve
18 0313379 . nipple
19 0317176 Needle value,slow speed
20 0319901 Nozzle, high speed
21 0319938 Throttle value
22 0310496 .lever, choke override
23 0317135 Bracker,solenoid
24 0307609 Screw
25 0317175 Control panel
26 0309887 .screw, control panel
27 0304572 . .screw
28 0378003 Arm pin,manual choke
29 0303630 Washer
30 0317183 Orifice plug
31 0307384 Spring, choke
32 0306417 Scew, spring
33 0317174 Bushing, choke lever
34 0307382 . shoulder screw
35 0307433 Spring, choke
36 0307832 Plug, screw
37 0385055 Choke lever pin assy
38 0379965 Float bowl assy
39 0306003 .plug, float chamber
40 0303750 Gakset, float bowl
41 0328737 Washer This part replaces 0306015.
42 0396521 Float valve seat assy This part replaces 0378895.
43 0301996 Gasket
44 0375792 Float float arm
45 0302661 Hinge pin, float
46 0312937 Washer solenoid plunger
47 0307778 Gasekt, carburetor body
48 0306357 . . . screw, short, 5 8" long
49 0383598 Solenoid assembly
50 0310572 ,housing, connector
51 0310523 ,terminal
52 0312940 Spring, arm to plunger
53 0312941 Guide, solenioid spring
54 0305230 Screw
55 0309040 Clamp, exhaust cover
56 0310473 Gasket, solenoid
57 0310475 Retainer, solenoid
58 0381861 Plunger pin assy
59 0312939 Spring, plunger
60 0303686 Screw, fastener
61 0204705 Arm, neddle valve
62 0318540 Link, slow speed
63 0279086 Shaft arm, slow speed
64 0317171 Rod, knob to lever
65 0310387 Gasket, carb to manifold
66 0306422 Nut
67 0313329 Lockwasher, carburetor link
68 0203470 Retaining ring, pawl
69 0204757 Bow washer
70 0306799 L'washer,bracket to hsg.
71 0378985 Lever, throttle
72 0318974 Fastener, cable clamp
73 0303049 Cotter pin
