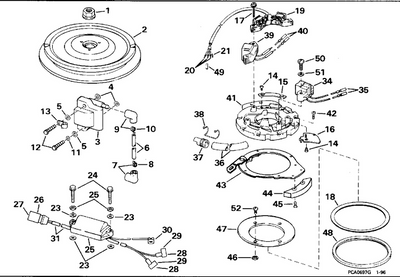

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 37
Product Description: Cam, Throttle Control
Category: EVINRUDE / 1976 / 9.9 / 10655H 1976 / MAGNETO
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 0581386 | 0581386 | Armature plate assy | |
| 0581559 | 0581559 | Armature plate assy | |
| 1 | 0581217 | Armature plate | |
| 2 | 0510397 | Screw | |
| 3 | 0510208 | Bow washer | |
| 4 | 0581207 | Breaker assy | |
| 5 | 0581010 | . oiler wick | |
| 6 | 0302812 | Screw, ground terminal | |
| 7 | 0510193 | . screw, clamp cover | |
| 8 | 0318909 | Cover | |
| 9 | 0510194 | Screw | |
| 10 | 0581419 | Condenser | |
| 11 | 0307019 | Screw, clamp | |
| 12 | 0581202 | Coil lamination | |
| 12 | 0581557 | Coil lamination | |
| 13 | 0302812 | Screw, ground terminal | |
| 14 | 0511195 | Screw | |
| 15 | 0581360 | Cable asembly, ignition coil to armature pla | |
| 16 | 0511071 | Clip | |
| 17 | 0310572 | ,housing, connector | |
| 18 | 0310680 | . terminal | |
| 19 | 0510426 | Ring terminal | |
| 20 | 0310523 | ,terminal | |
| 21 | 0581387 | Stator assembly | |
| 22 | 0510780 | 8 ring termianl | This part replaces 0204037. |
| 23 | 0318954 | Clamp, ignition coil | |
| 24 | 0314200 | Clamp | |
| 25 | 0511286 | Terminal, ground lead | |
| 26 | 0581392 | Lead asembly, ground | |
| 26 | 0581391 | Lead assebmly,ground | |
| 27 | 0306286 | Screw, clamp | |
| 28 | 0331036 | Screw | This part replaces 0320468. |
| 29 | 0322102 | Plate, support | This part replaces 0320494. |
| 30 | 0581407 | Ignintion coil assembly | |
| 31 | 0581027 | Cover terminal assy, spark plug | |
| 32 | 0310523 | ,terminal | |
| 33 | 0310572 | ,housing, connector | |
| 34 | 0306049 | Screw | |
| 35 | 0581175 | Flywheel ring gear assembly | |
| 35 | 0581423 | Flywheel assembly | |
| 36 | 0511285 | Tubing | |
| 37 | 0320819 | Cam, throttle control | |
| 37 | 0320434 | Cam, throttle control | |
| 38 | 0510278 | Screw | |
| 39 | 0328712 | Ãcrou, montage instrument | This part replaces 0204046. |
| 40 | 0414951 | Screw, coil yoke assy., long | |
| 41 | 0306488 | Lock washer, solenoid ground | |
| 42 | 0302944 | Nit,flywheel | |
| 43 | 0511071 | Clip | |
| 44 | 0322435 | Bearing, timer base plate to | |
| 45 | 0300154 | Washer | |
| 46 | 0387418 | Retainer link assy | |
| 46 | 0387419 | Retainer link assembly | |
| 47 | 0307841 | Bushing, control lever | |
| 48 | 0306358 | Flat washer, helm mounting | |
| 49 | 0204757 | Bow washer | |
| 50 | 0310540 | .washer, shaft | |
| 51 | 0303049 | Cotter pin | |
| 52 | 0326936 | Sleeve, retainer | This part replaces 0321563. |
| 53 | 0172806 | Ignition tune up kit |
