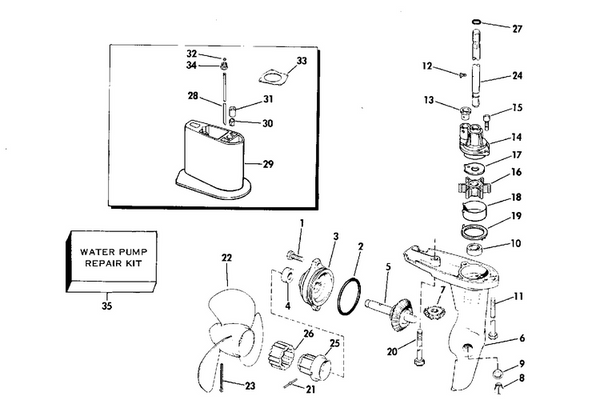

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 19
Product Description: Spacer, Water Pump
Category: EVINRUDE / 1976 / 4 / 4606M 1976 / GEARCASE-STANDARD DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 0385550 | 0385550 | Gearcase assy., complete | |
| 1 | 0300646 | Screw, clamp, fuel filter | |
| 2 | 0310327 | "o" ring, gearcase head | |
| 3 | 0383341 | Earcase head and bushing assembly | |
| 4 | 0327031 | Seal, driveshaft | This part replaces 0300599. |
| 5 | 0385236 | Prop shaft and gear assy | |
| 6 | 0389066 | Gearcase bush. assy. | This part replaces 0385898. |
| 7 | 0313608 | Pinion, driveshaft | |
| 8 | 0307551 | Screw | |
| 9 | 0311598 | Seal | |
| 10 | 0327031 | Seal, driveshaft | This part replaces 0300599. |
| 11 | 0303398 | Screw, lower | This part replaces 0302030. |
| 12 | 0321130 | Drive pin, impeller | |
| 13 | 0321129 | Grommet, water tube | |
| 14 | 0321125 | Body, water pump | |
| 15 | 0321127 | Screw, water pump assy. | |
| 16 | 0387361 | Impeller pin assy | |
| 17 | 0321124 | Plate, water pump | |
| 18 | 0321128 | Cup, impeller body | |
| 19 | 0321126 | Spacer, water pump | |
| 20 | 0313332 | Scerw, adj. bracket | |
| 21 | 0333513 | Drive in, propeller | This part replaces 0316558. |
| 22 | 0318487 | Propeller | |
| 23 | 0313693 | Cotter pin | |
| 24 | 0318482 | Driveshaft, std | |
| 25 | 0391598 | Clutch hub, propeller | This part replaces 0317466. |
| 26 | 0310331 | Ring, clutch | |
| 27 | 0202893 | "o" ring, drive shaft | |
| 0385861 | 0385861 | Extension kit 5" 5" extension kit | |
| 11 | 0315221 | Screw, g case mtg, long | |
| 20 | 0330666 | Screw, gearcase mounting | This part replaces 0315220. |
| 24 | 0318483 | Driveshaft, long | |
| 27 | 0202893 | "o" ring, drive shaft | |
| 28 | 0318481 | Water tube, long | |
| 29 | 0394477 | Gearcase extension assy. | This part replaces 0386011. |
| 30 | 0310674 | Bushing | |
| 31 | 0326742 | Sleeve | This part replaces 0312321. |
| 32 | 0306344 | Ball sleeve | |
| 33 | 0315338 | Gasket, exh housing | |
| 34 | 0132691 | Compression nut | |
| 35 | 0387362 | Water pump repair kit |
