EVINRUDE-JOHNSON 321636 . Pin, Connector To Guide

Write a Review
$15.49
SKU:
321636
Schematic Object Key:
17

EVINRUDE-JOHNSON 321636 . Pin, Connector To Guide

$15.49

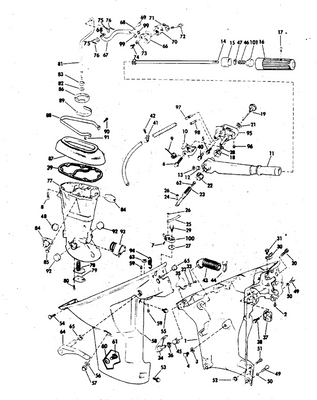

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 321636 . Pin, Connector To Guide

Schematic Object Key : 17

Product Description: . Pin, Connector To Guide

Category: JOHNSON / 1990 / 9.9 / J10RELESC 1990 / MIDSECTION (ALL MODELS EXCEPT SEL)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0124346 Spacer, tilt tube
2 0323599 Locknut
3 0363253 Nut,lock This part replaces 0310702.
4 0315776 Rondelle
5 0363013 Screw This part replaces 0334427.
0398105 0398105 Connector assembly, shift
6 0123440 . connector, shifting
7 0303218 Groove pin
8 0303230 Spring, shift lever
9 0303240 Lock pin, shift lever
10 0332960 Tilt bolt, stern bracket to swivel bracket
11 0303884 Washer
12 0301917 O ring
13 0330507 Swivel bracket
14 0351896 Tilt tube This part replaces 0321511.
15 0309967 Bushing, pilot shaft, lower
16 0335332 Pivot shaft
17 0321636 . pin, connector to guide
18 0306387 . cotter pin, connector to guide
19 0434151 Steering bracket This part replaces 0433820.
20 0313607 Lube fitting
21 0320416 Wire, reverse lock release
22 0338874 Carrying handle This part replaces 0331096.
23 0328285 Bushing, tilt lock shaft to sw. brkt.
24 0319049 Bell crank, reverse lock
25 0304380 , bow
26 0326943 Pin, link to lock lever
27 0313607 Lube fitting
28 0305650 Cotter pin
29 0432453 Knob tilt pin assy.
30 0308684 Screw, cover to housing
31 0319108 Screw belcrank
32 0315077 Locknut, 3 8 24 ss This part replaces 0325451.
33 0312977 Bow washer, link to lever
34 0308052 Washer
35 0309966 Thrust washer, lower swivel bracket
36 0310540 .washer, shaft
37 0304027 Screw
38 0302860 Screw. starter motor
39 0317000 Cable, starter cable This part replaces 0320687.
0434073 0434073 Steering kit assy.
40 0552906 Cotter pin, upper pivot
41 0328703 Washer, screw hook This part replaces 0304051.
42 0433845 Drag ling brkt. assy.
43 3852420 Locknut, throttle lever This part replaces 0900402.
44 0909386 Screw, housing to gearcase
45 0328268 Stern bracket, port
46 0433675 Clamp scr. hand. assy.
46 0391421 Clamp screw handle
47 0321922 Screw, shoulder
48 0337017 Plate, swivel This part replaces 0307561.
49 0328269 Stern bracket, starboard
50 0512066 Clamp
51 0318989 Seal, upper mounts exh. hsg.
52 0317624 Screw, driveshaft hsg
53 0305650 Cotter pin
54 0398001 Handle rivet
55 0328701 Lockwasher, double ended bolt
56 0582961 Cable starer switch assy.
57 0510780 8 ring termianl
58 0511532 Tubing, starter switch
59 0395699 Starter switch
60 0334951 Boot, switch
61 0512682 Cale verrouillage, 3 broches
62 0204053 Borne, anneau 0,312" 7,9 mm diamètre
63 0204039 10 ring terminal
64 0306799 L'washer,bracket to hsg.
65 0306932 Nut
66 0333440 Clamp, battery cable This part replaces 0317755.
67 0328724 Screw This part replaces 0308738.
68 0319601 . nut, switch
69 0319537 Clip
70 0320790 Bellcrank, shift rod
71 0305650 Cotter pin
72 0302504 Pin, connector, shift rod
73 0319563 Scerw, lever to shaft
74 0311407 Lockwasher, lever to shaft
75 0318950 Bushing, shift lever to motor cover, inner
76 0318951 Bushing, shift lever to c'case
77 0392878 Shift lever bracket to hsg.
78 0320931 Lever, shaft lever to shift lock link.
79 0308017 Screw, bellcrank to shift lever
80 0586030 Ground wire, steering bracket This part replaces 0584060.
81 0328289 Support bracket, tilt lock port
82 0306486 Washer, screw, negative
83 0328290 Pin, support bracket to swivel bracket
84 0325914 Bushing, stern bracket
85 0551113 Ressort de friction de direction
86 0397736 Block assy., friction
87 0321531 Screw, friction adjust. swivel brkt.
88 0332662 Block, friction, swivel bracket
89 0332663 Liner
90 0310540 .washer, shaft
91 0319050 Lever, reverse locking
92 0322949 Link, reverse lock
93 0338657 Link, shallow water drive This part replaces 0320426.
94 0320427 Spring, shallow water drive
95 0319279 Spring, reverse lock
96 0320428 Spring, reverse lock rod
97 0204293 Washer, hinge pin
98 0325017 Nut, tilt lock pin
99 0319227 Screw, knob
100 0319047 Pin, tilt lock to stern bracket
101 0328048 Knob, tilt reverse lock lever
102 0393199 Lever shaft assy. lock
104 0314099 Rondelle, vis, pignon de distribution
105 0313022 Locknut, double ended bolt
106 0300364 Link, conical, tilt shaft
107 0303884 Washer
108 0319699 Thrust washer, stern bracket
109 0319787 Bushing
110 0309738 Plate stern bracket
111 0319055 Pin, link to bracket
112 0319124 Shift rod, upper
