EVINRUDE-JOHNSON 322776 Orifice 150 Only

Write a Review
$15.99
SKU:
322776
Schematic Object Key:
9

EVINRUDE-JOHNSON 322776 Orifice 150 Only

$15.99

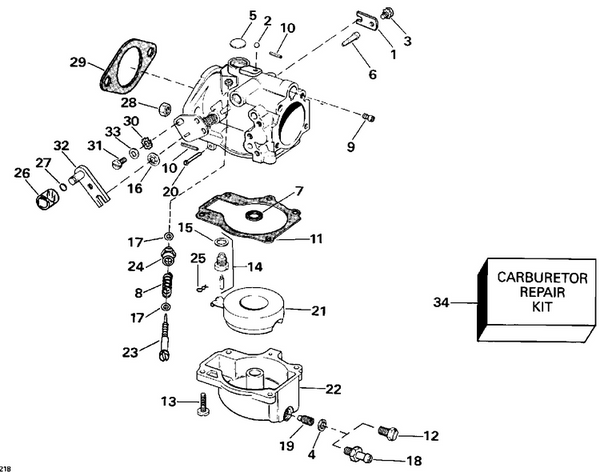

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 322776 Orifice 150 Only

Schematic Object Key : 9

Product Description: Orifice 150 Only

Category: JOHNSON / 1990 / 40 / J40RESR 1990 / CARBURETOR - ALL 25 & 40 MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0432984 0432984 Carb. assy.
0432985 0432985 Carb. assy.
0432982 0432982 Carb assy.
0432983 0432983 Carb. assy.
0398347 0398347 Carb. assy.
0398340 0398340 Carb. assy.
0432436 0432436 Carb ay
0432437 0432437 Carb assy.
1 0329860 Clip
2 0304201 Lead shot
3 0329859 Screw
4 0303630 Washer
5 0202310 Core plug
6 0314513 Fitting, fuel inlet
7 0343512 Gasket, nozzle This part replaces 0332708.
8 0332576 Ressort, soupape à pointeau
9 0317474 Orifice, 27, 90
9 0322776 Orifice 150 only
9 0320015 . orifice, idle rstr 33
9 0318832 O ring, no. 35
10 0314575 Pin, throttle shaft
11 0338880 Gasket, float bowl This part replaces 0332696.
12 0330057 Screw plug
13 0333430 Screw, float bowl
14 0396521 Float valve seat assy
15 0301996 Gasket
16 0313973 Nut, push
17 0334746 O ring, needle valve
18 0326467 Nipple, vapor sep, vacuum pick up
19 0328542 Orifice intermediate 47d
19 0324020 Orifice plug, no. 49d
20 0302661 Hinge pin, float
21 0382363 Float arm assembly
22 0344271 Float chamber assy This part replaces 0330195.
23 0335015 Needle valve, slow speed adj.
24 0335564 Adapter, needle valve
25 0336842 Clip, spring This part replaces 0603145.
26 0397499 Roller sleeve assy.
27 0308776 O ring
28 0316355 But, carburetor mounting
29 0325092 Gasket
30 0303701 Lock washer, adjustment screw
31 0328714 Screw, clip
32 0397036 Lever pin
33 0328735 Washer, screw, ball joint
34 0396701 Carburetor repair kit This part replaces 0398729.
