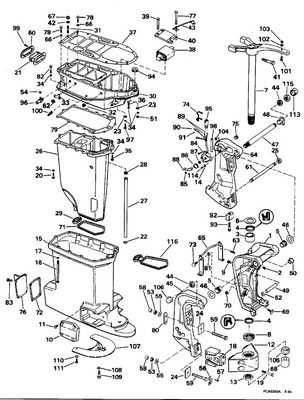

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 79
Product Description: Gasket, Inner Exh. Hsg To Meg
Category: JOHNSON / 1983 / 175 / J175TXCTE 1983 / EXHAUST HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0432708 | Swivel bracket | This part replaces 0389335. |
1 | 0432710 | Swivel bracket | This part replaces 0389336. |
2 | 0313607 | Lube fitting | |
3 | 0320962 | Bushing | |
4 | 0320937 | Seal | |
5 | 0321035 | Brushing, swivel bracket | |
6 | 0320866 | Rondelle de butée, arbre d'articulation | |
7 | 0392518 | Steering arm assy. | |
7 | 0392519 | Steering arm assy. | |
8 | 0327696 | Keeper, pivot shaft | |
9 | 0510193 | . screw, clamp cover | |
10 | 0338942 | Cover, mount bracket lower | This part replaces 0327801. |
11 | 0322000 | Screw, starter motor | |
12 | 0340006 | Bracket, mount | This part replaces 0327051. |
13 | 0320746 | Ecrou, support de montage | |
14 | 0328739 | Rondelle entre ancrage et support | This part replaces 0313396. |
15 | 0392170 | Exhaust housing | |
15 | 0392144 | Exhaust housing, 175 | |
15 | 0435318 | Exhaust housing, outer | This part replaces 0392171. |
15 | 0435318 | Exhaust housing, outer | This part replaces 0392145. |
16 | 0314956 | Stud | |
17 | 0306470 | Lock washer | |
18 | 0434632 | Monture caoutchouc, inférieur | This part replaces 0391710. |
18 | 0434629 | Mount, lower | This part replaces 0391774. |
19 | 0328078 | Screw, mount | |
20 | 0306314 | L'washer,scr,long | |
21 | 0320961 | Joint, boîtier d'engrenages vers carter intérieur | |
22 | 0390131 | Cover, exhaust housing, rear | |
23 | 0318258 | Seal cover | |
24 | 0328694 | Screw, bracket | This part replaces 0321527. |
25 | 0323800 | Cover, exhause housing, front, plastic | |
26 | 0327800 | Exh. hsg., inner, upper | This part replaces 0323548. |
27 | 0346897 | Tube water, inlet | This part replaces 0321016. |
27 | 0346898 | Tube water, inlet | This part replaces 0321015. |
28 | 0305145 | Grommet | |
29 | 0324516 | Gasket, adapter to plate, 150 | |
30 | 0327804 | Adapter, exh. hsg., 150 | |
30 | 0392891 | Adapter, exh. hsg., 2.6 | |
31 | 0301185 | Stud | |
32 | 0303459 | Ecrew,exhaust cover,1 1 2"long | |
33 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
34 | 0302290 | Washer | |
35 | 0306418 | Screw, anchor block lower | |
36 | 0306409 | Screw, anchor block lower | |
37 | 0323214 | Gasket, adap. to pwrhd, 175 | |
38 | 0387098 | Rubber mount assy., upper | |
39 | 0301431 | Screw | |
40 | 0307708 | Lock washer, mounting | |
41 | 0335612 | Screw, upper | This part replaces 0316406. |
42 | 0322624 | Washer, lag screw | This part replaces 0313169. |
43 | 0583967 | Ground lead | This part replaces 0392520. |
44 | 0323599 | Locknut | This part replaces 0316828. |
45 | 0395844 | Steering bracket, assy., stbd. | This part replaces 0392204. |
46 | 0910992 | Rondelle, tube de relevage | This part replaces 0327699. |
47 | 0335553 | Tilt tube | This part replaces 0321052. |
48 | 0306778 | Ecrew,exhaust cover,1 3 8"long | |
49 | 0320792 | Pin | |
50 | 0322481 | Bushing, tilt cylinder | |
51 | 0306422 | Nut | |
52 | 0321054 | Spring clip | |
53 | 0363254 | Nut, stern bracket screw | This part replaces 0321861. |
54 | 0307238 | Rondelle | |
55 | 0320248 | Rondelle, écrou | |
56 | 0318273 | Bolt hex retainer 1 2 in. | |
57 | 0319886 | Screw | |
58 | 0318572 | Bolt thread protective cap 1 2 in. | |
59 | 0363012 | Screw, bracket mounting | This part replaces 0313327. |
59 | 0363012 | Screw, bracket mounting | This part replaces 0326614. |
59 | 0363011 | Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm | This part replaces 0321577. |
60 | 0318272 | Nut backing plate square 1 2 in. | |
61 | 0436541 | Rod assy, thrust | This part replaces 0387278. |
62 | 0321053 | Sorubg,thrust rod | |
63 | 0323142 | Spring, trail lock return | |
64 | 0396309 | Stern bracket assembly, port | This part replaces 0392203. |
65 | 0390442 | Locating lever, rod | |
66 | 0323292 | Gasket, adapter to megaphone | |
67 | 0327796 | Exhasut hsg,inner lower | |
67 | 0327797 | Exhaust housing, inner lower | |
68 | 0327802 | Tuning megaphone | |
68 | 0323220 | Megaphone, 175 | |
69 | 0321499 | Thrust pad, trim rod | |
70 | 0315077 | Locknut, 3 8 24 ss | |
71 | 0320936 | Joint, boîtier échappement, inférieur | |
72 | 0319883 | Screw, exhaust cover | |
73 | 0329109 | Shoulder screw | This part replaces 0321389. |
74 | 0316355 | But, carburetor mounting | This part replaces 0315204. |
75 | 0321243 | Bushing, cable | |
76 | 0315071 | Screw | |
76 | 0303398 | Screw, lower | This part replaces 0302030. |
77 | 0317222 | Screw | |
78 | 0327803 | Plate assy. | |
79 | 0323222 | Gasket, inner exh. hsg to meg | |
80 | 0321735 | Support, stern bracket | |
81 | 0330266 | Washer, trail lock lever | This part replaces 0552993. |
82 | 0600014 | Screw | |
83 | 0552968 | Screw, plate 3 8 16 x 1.5 | |
83 | 0318612 | Screw, bracket to cover | |
84 | 0582153 | Sending unit | |
85 | 0511527 | Retainer | |
86 | 0511528 | Spring | |
87 | 0320689 | Ecrou | |
88 | 0512211 | Arm | This part replaces 0511530. |
89 | 0319682 | Screw, extension | |
90 | 0328742 | Nut | This part replaces 0306338. |
91 | 0322376 | Nut, wiper, tilt tube | |
92 | 0328694 | Screw, bracket | This part replaces 0321527. |
93 | 0328698 | Screw, adapter to crankcase | This part replaces 0908931. |
94 | 0302479 | Screw, starter mounting | |
95 | 0309192 | Rondelle | |
96 | 0392123 | Anode | |
97 | 0328049 | Screw | |
98 | 0307555 | Lock washer, anode | |
99 | 0306418 | Screw, anchor block lower |
