EVINRUDE-JOHNSON 323312 Gasket, Plate To Gearcase

Write a Review
$6.00
SKU:
323312
Schematic Object Key:
65

EVINRUDE-JOHNSON 323312 Gasket, Plate To Gearcase

$6.00

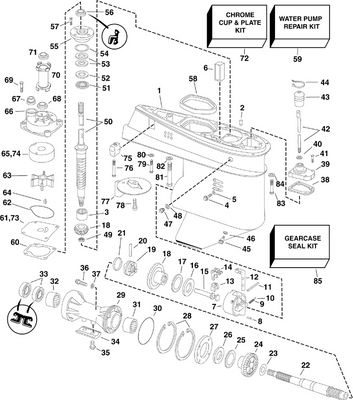

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 323312 Gasket, Plate To Gearcase

Schematic Object Key : 65

Product Description: Gasket, Plate To Gearcase

Category: JOHNSON / 1979 / 35 / 35E79A 1979 / GEARCASE - 35

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0389730 0389730 Gearcase assy
1 5008160 Bearing housing seal This part replaces 0387023.
2 0321453 Seal, propeller shaft
3 0376856 Bearing assembly, pinion
4 0321512 Cradle, clutch dog
5 0319743 Screw, propeller shaft bearing housing
0317178 0317178 O ring
6 0338518 O ring, bearing housing This part replaces 0313893.
7 0322080 Gear, reverse
8 0386418 Propelleer shaft
9 0323278 Spring, detent
10 0316506 Ball, detent
11 0319565 Shifter, clutch dog
12 0390023 Yoke connector assy
13 0308376 Pivot pin, shift lever
14 0388125 Gear bushing assy., fwd
15 0386186 Roller bearing, forward gear
16 0322079 Pinion, driveshaft
17 0322688 Thrust washer, bearing
18 0388027 Thrust bearing, pinion
19 0319667 Thrust washer
20 0389729 Gearcase, bearing seal
21 0322018 Housing, bearing
22 0386473 Bearing assembly
23 0321928 Retainer, oil, , lower
24 0320173 Stud
25 0301877 O ring shift rod
26 0321736 . bushing, shift rod
27 0321738 Washer, seal, shift rod
28 0376856 Bearing assembly, pinion
29 0322277 . screen, intake
30 0319686 Thrust washer, front
31 0307551 Screw
32 0311598 Seal
33 0320118 Lever, shifting
34 0319684 Thrust washer
35 0306376 Cotter pin
36 0302504 Pin, connector, shift rod
37 0319635 Bushing, reverse gear
38 0319747 Retaiining ring
39 0319746 Retainer plate, housing
40 0319685 Thrust washe,rear
41 0311338 "o" ring,lever to cover
42 0303794 Connector
43 0301551 Washer, lock
44 0323943 Spacer
45 0909533 Screw, adapter This part replaces 0324429.
46 0302497 Grommet, lower water tube
47 0322077 Water tube, standard
47 0322078 Water tube, long
48 0304024 Screw This part replaces 0323636.
49 0319678 Shift rod, lower std
49 0319679 Shift rod, lower long
50 0323261 Driveshaft, std
50 0323262 Driveshaft, long
51 0324960 Screw, impeller housing
52 0300611 . dowel, bearing
53 0319150 Lock washer, adjustment rod
54 0306422 Nut
55 0388702 Impeller assy
56 0390159 Impeller housing seal
57 0321786 Seal z
58 0319785 Bushing
59 0319890 Thrust bushing, prop
60 0326692 Spacer, impeller housing This part replaces 0322408.
60 0326693 Spacer, imp. housing This part replaces 0322409.
61 0320785 Cotter pin
62 0319891 Nut
63 0360633 Cup, impeller housing This part replaces 0323008.
64 0323311 Gasket, housing to plate
65 0323312 Gasket, plate to gearcase
66 0323251 Plate, impeller housing
67 0387320 Propeller 11 1 4 x 7 al
67 0765049 Propeller This part replaces 0386637.
67 0778863 Propeller This part replaces 0386933.
67 0765048 Propeller, aluminum, 3 x 11 in. x 9 p This part replaces 0386317.
67 0387525 Propeller 10 1 2 x 11 sst
67 0387526 Propeller 11 x 9 sst
67 0388866 Propeler 10 x 13 sst
67 0390731 Propelleer 10 x 17 sst
68 0332542 Converging ring This part replaces 0319978.
69 0386638 Bushing assy, prop. alum
70 0328702 Washer This part replaces 0318452.
0389563 0389563 Extension kit assy
42 0304081 Connector 5 " extension kit
42 0304081 Connector 5 " extension kit
47 0322078 Water tube, long
47 0322078 Water tube, long
48 0304024 Screw This part replaces 0323636.
50 0323262 Driveshaft, long
53 0319150 Lock washer, adjustment rod
54 0306422 Nut
58 0319785 Bushing
60 0326693 Spacer, imp. housing This part replaces 0322409.
71 0389343 Extension stud
72 0320173 Stud
45 0333676 Screw, cover to gearcase This part replaces 0323645.
73 0389119 Chrome cup plate kit
74 0391631 Water pump kit This part replaces 0388891.
