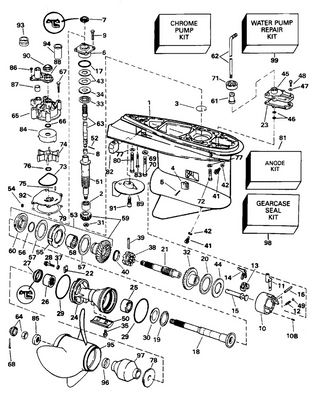

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 36
Product Description: Shim, 0.004 In. (0,10Mm)
Category: JOHNSON / 1984 / 75 / J75ECRD 1984 / GEARCASE - 20" MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0392478 | Gearcase bearing assy. | |
2 | 0382343 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
0307853 | 0307853 | O ring | |
4 | 0314175 | Screen, water intake | |
5 | 0391365 | Bearing housing assembly. | |
5A | 0382407 | Bearing assy, forward gear | |
6 | 0202136 | . . pin, cover to gearcase | |
7 | 0911961 | Spring, detent | This part replaces 0326666. |
8 | 0320145 | Pin, lever to housing | |
9 | 0326670 | Detent, shifter | |
11 | 0324037 | Lever, shift | |
12 | 0327345 | Ball, detent | |
13 | 0313447 | Thrust washer | |
14 | 0382408 | Thrust bearing | |
15 | 0397338 | Gear and pinion assy. | This part replaces 0389964. |
16 | 0326668 | Shaft, shift dog | |
17 | 0318303 | Shifter, clutch dog | |
18 | 0313448 | Pin, clutch dog | |
19 | 0324369 | Spring, clutch dog pin | |
20 | 0439185 | Propeller shaft assy. | This part replaces 0387879. |
21 | 0318304 | Gear, reverse | |
22 | 0313453 | Retainer plate, bearing housing | |
23 | 0313445 | Retaining ring | |
24 | 0313446 | "o" riing, brg. hsg | |
25 | 0434391 | Bearing housing assembly. | This part replaces 0393717. |
26 | 0382407 | Bearing assy, forward gear | |
27 | 0379504 | Propshaft bearing assembly | |
28 | 0330137 | Seal | This part replaces 0321463. |
29 | 0320041 | Screw, housing to gearcase | |
30 | 0317178 | O ring | |
31 | 0313339 | Nut, pinion to driveshaft | |
32 | 0302325 | Screw, impeller housing | |
33 | 0391378 | Driveshaft assy | |
34 | 0385068 | Thrust bearing assembly. | |
35 | 0317230 | Thrust washer | |
36 | 0317231 | Shim, . 002" | |
36 | 0317232 | Shim, 0.005 in. 0,12mm | |
36 | 0323889 | Shim, 0.003 in. 0,07mm | |
36 | 0323890 | Shim, 0.004 in. 0,10mm | |
37 | 0313754 | O ring | |
38 | 0385087 | Bearing housing assembly. | |
39 | 0321466 | . oil retainer, driveshaft | |
40 | 0909386 | Screw, housing to gearcase | |
41 | 0307551 | Screw | |
42 | 0311598 | Seal | |
43 | 0385043 | Thrust bearing assy. | |
44 | 0324937 | Seal, gearcase to inner exh. hsg. | |
45 | 0324766 | Thrust washer, forward gear | |
46 | 0318544 | Screw, fill drain | |
0311598 | 0311598 | Seal | |
47 | 0316484 | Thrust washer, shifter | |
48 | 0388651 | Cover assy. | |
49 | 0318372 | "o" ring, shift rod | |
50 | 0327337 | Shift rod | |
51 | 0314082 | Gasket, cover to gearcase | |
52 | 0334163 | Cradle, shifter | This part replaces 0322900. |
53 | 0324980 | Linder, impeller housing | |
54 | 0324981 | Seal, impeller housing | |
55 | 0321940 | Plate | |
56 | 0341038 | Plate, impeller housing | This part replaces 0319275. |
57 | 0341732 | Grommet, housing | This part replaces 0315748. |
58 | 0326649 | O ring | |
59 | 0432955 | Water pump repair kit includes impeller housing | This part replaces 0391049. |
60 | 0314008 | Bague, tube à eau vers capot | |
61 | 0319292 | Screw, clamp | |
62 | 0324334 | Screw | |
63 | 0319276 | Guide, water tube | |
64 | 0323950 | Key, drive shaft to impeller | |
65 | 0396725 | Impeller key assembly | This part replaces 0389557. |
66 | 0552968 | Screw, plate 3 8 16 x 1.5 | |
67 | 0307708 | Lock washer, mounting | |
68 | 0306503 | Screw, adjustment rod | |
69 | 0306470 | Lock washer | |
70 | 0313697 | Scr,grc to hsg.long | |
71 | 0306314 | L'washer,scr,long | |
72 | 0127084 | Thrust bushing | This part replaces 0318841. |
73 | 0315810 | Spacer, impeller nut | |
74 | 0314503 | Nut, impeller | |
75 | 0314502 | Cotter pin | |
76 | 0338742 | Compensateur de dérive | This part replaces 0327810. |
77 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
78 | 0321452 | Grommet | |
79 | 0327482 | Block, gearcase | |
79 | 0436745 | Anode | This part replaces 0393023. |
80 | 0392462 | Anode and insert | |
81 | 0322000 | Screw, starter motor | |
81 | 0328096 | Screw | |
82 | 0324430 | Screw, anode | |
83 | 0301151 | Lockwasher, anode | |
84 | 0313022 | Locknut, double ended bolt | |
85 | 0383160 | Propeller 14 x 19 | |
85 | 0382761 | Propeller ,14 x 11 | |
85 | 0765181 | Propeller | This part replaces 0391668. |
85 | 0765182 | Propeller w models | This part replaces 0391198. |
85 | 0390896 | Propeller, 13 19 al. | |
85 | 0389788 | Propeller, 12 3 4 x 21 | |
85 | 0390895 | 12 3 4 x 23 | |
85 | 0390750 | Prop., 13 1 2 x 23 sst ss | |
85 | 0392261 | Propeller 13 3 4 x 13 sst | |
85 | 0389948 | Propeller, 12 3 4 x 17 sst | |
85 | 0389510 | Propeller, 13 19 sst | |
85 | 0389512 | Pro, 12 3 4 x 21 sst cupped | |
85 | 0389514 | Propeller 12 3 4 x 23 sst | |
85 | 0389792 | Propeller 14 x 11 sst | |
85 | 0389949 | Propeller, 12 3 4 x 15 sst | |
85 | 0765183 | Propeller, wdel models | This part replaces 0391199. |
86 | 0332393 | Converging ring | This part replaces 0325996. |
87 | 0384977 | Bushing assy, prop, 3 blade | |
88 | 0396726 | Water pump repair kit | This part replaces 0390769. |
88 | 0391634 | Water pump reair kit, includes imeller hsg | |
89 | 0389145 | Chrome cup plate kit | |
90 | 0392461 | Anode kit |
