EVINRUDE-JOHNSON 324626 Pin, Clutch Dog

Write a Review
$7.34
SKU:
324626
Schematic Object Key:
5

EVINRUDE-JOHNSON 324626 Pin, Clutch Dog

$7.34

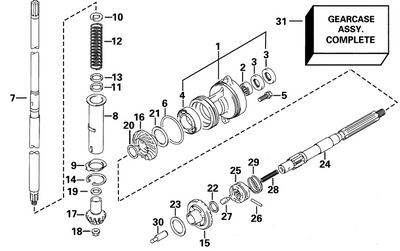

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 324626 Pin, Clutch Dog

Schematic Object Key : 5

Product Description: Pin, Clutch Dog

Category: EVINRUDE / 1980 / 7.5 / E8RLCSS 1980 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0389631 0389631 Gearcase assy., std except srl
0389632 0389632 Gearcase assy., long
1 0434294 Housing assy, propeller shaft This part replaces 0389575.
2 0324631 . seal, bearing housing to propeller shaft
3 0324632 . seal, gearcase head
4 0325040 Gasket
5 0324626 Pin, clutch dog
6 0328744 Screw, clamp 1 4 20 x .75 This part replaces 0308741.
7 0322494 O ring, bearing housing to gearcase
8 0396992 Gear bushing assy., reverse This part replaces 0389572.
9 0344200 Propeller shaft This part replaces 0324628.
10 0324624 Spring, shifter
11 0333676 Screw, cover to gearcase This part replaces 0325095.
12 0326340 Shifter, clutch dog
13 0324627 Retainer , shifter
14 0324637 Gasket, gearcase cover
15 0438966 Gear bearing assy., forward This part replaces 0389571.
16 0389858 Roller bearing
17 0331599 Pinion, driveshaft This part replaces 0324617.
18 0322202 Thrust washer, lower pinion bearing
19 0388000 Thrust bearing, pinion
20 0322201 Thrus twasher,upper pinion bearing
21 0397701 Gearcase, housing assy. This part replaces 0389570.
22 0391048 Bearing sleeve assy, driveshaft
23 0386071 Bearing assy., pinion to gearcase
24 0396200 Screen plug, water intake This part replaces 0324633.
25 0434152 Cover assembly, gearcase This part replaces 0389837.
26 0305242 O ring
27 0324639 Seal, driveshaft
28 0324642 Bushing, shift rod
29 0324615 Cam, shift
30 0307551 Screw
31 0311598 Seal
32 0324616 Retaining ring, shift rod
33 0324623 Plunger
34 0389577 Impeller housing assy.
35 0389576 Impeller assy
36 0300611 . dowel, bearing
37 0324640 Plat, impeller housing
38 0330434 Driveshaft, standard This part replaces 0324634.
38 0330435 Driveshaft, long This part replaces 0324635.
39 0324620 Shift rod, lower, std except srl
39 0324621 Shift rod, long
40 0324641 Liner, water pump
41 0324430 Screw, anode
42 0305296 Cotter pin
43 0324689 Spacer
44 0303191 "o" ring, lever shaft
45 0324643 Screw
46 0302497 Grommet, lower water tube
46 0321129 Grommet, water tube
47 0432397 Anode kit This part replaces 0324636.
48 0324579 Screw
49 0324694 Cap, propeller shaft
50 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
51 0324690 Drive pin
52 0390237 Propeller
52 0391096 Propeller
0389979 0389979 Extension kit assy
0324611 0324611 Gasket, exhaust housing
0323286 0323286 Grommet, water tube
0324601 0324601 Washer tube, long
0324604 0324604 Retainer, water tube
0302497 0302497 Grommet, lower water tube
0320025 0320025 Extension
0202893 0202893 "o" ring, drive shaft
4 0325040 Gasket
14 0324637 Gasket, gearcase cover
38 0330435 Driveshaft, long This part replaces 0324635.
39 0324621 Shift rod, long
46 0321129 Grommet, water tube
53 0330247 Screw, extension to hsg This part replaces 0324645.
54 0396308 Gearcase extension This part replaces 0324947.
55 0331025 Screw This part replaces 0308744.
0303191 0303191 "o" ring, lever shaft
56 0324643 Screw
57 0390772 Chrome pump kit
58 0396644 Water pump repair kit This part replaces 0389844.
