EVINRUDE-JOHNSON 324637 Gasket, Gearcase Cover

Write a Review
$14.99
SKU:
324637
Schematic Object Key:
14

EVINRUDE-JOHNSON 324637 Gasket, Gearcase Cover

$14.99

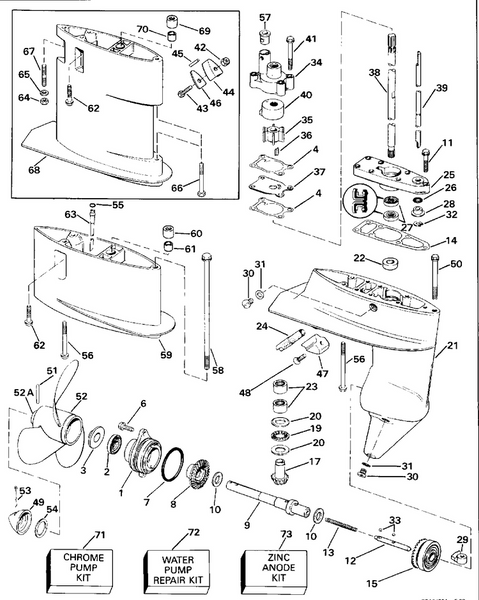

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 324637 Gasket, Gearcase Cover

Schematic Object Key : 14

Product Description: Gasket, Gearcase Cover

Category: JOHNSON / 1994 / 6 / J6RERE 1994 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434294 Housing assy, propeller shaft
2 0336493 Seal, oil, propeller shaft
3 0336414 Bushing
4 0325040 Gasket
6 0333706 Screw, bearing housing to gearcase
7 0322494 O ring, bearing housing to gearcase
8 0397699 Gear bushing assy., reverse
9 0435407 Propeller shaft
10 0336296 Thrust washer, lower pinion
11 0333676 Screw, cover to gearcase
12 0332655 Shifter
13 0343272 Spring, shifter This part replaces 0332656.
14 0324637 Gasket, gearcase cover
15 0432144 Gear bearing assy., forward
17 0336297 Pinion, driveshaft
19 0388000 Thrust bearing, pinion
20 0336296 Thrust washer, lower pinion
21 0434281 G'case, brg., screen plug ay.
22 0391048 Bearing sleeve assy, driveshaft
23 0386473 Bearing assembly
24 0396200 Screen plug, water intake
25 0434152 Cover assembly, gearcase
26 0305242 O ring
27 0324639 Seal, driveshaft
28 0324642 Bushing, shift rod
29 0332654 Cam, shift
30 0307551 Screw
30 0318544 Screw, fill drain
31 0333572 O ring
31 0311598 Seal
32 0324616 Retaining ring, shift rod
33 0332658 Ball, drive
34 0389577 Impeller housing assy.
35 0436137 Impeller assy
36 0331130 Key, impeller to driveshaft
37 0324640 Plat, impeller housing
38 0337939 Driveshaft
38 0337940 Driveshaft
38 0341212 Driveshaft, x long, 25 in. This part replaces 0337941.
39 0336061 Shift rod, lower
39 0336060 Shift rod
39 0336067 Shift rod, lower, x long
40 0324641 Liner, water pump
41 0331980 Screw, bracket, port
42 0313022 Locknut, double ended bolt
43 0324334 Screw
44 0327501 Exhaust plug
45 0327503 Drain tube
46 0327505 Plate, exhaust plub srl only
47 0432397 Anode kit This part replaces 0334451.
48 0328725 Screw, cover to gearcase
49 0324694 Cap, propeller shaft
50 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
51 0324690 Drive pin
52 0391096 Propeller
52 0390237 Propeller
52 0392183 Propeller 9 1 4 x 6 1 2
52A 0389583 Bushing, propeller
53 0306394 Cotter pin
54 0324689 Spacer
56 0324643 Screw
57 0302497 Grommet, lower water tube
* 0435542 Extension kit assy
4 0325040 Gasket
14 0324637 Gasket, gearcase cover
38 0337940 Driveshaft
39 0336060 Shift rod
55 0202893 "o" ring, drive shaft
57 0302497 Grommet, lower water tube
58 0330247 Screw, extension to hsg
59 0396308 Gearcase extension
60 0310674 Bushing
61 0326742 Sleeve
62 0333676 Screw, cover to gearcase
63 0320025 Extension
62 0333676 Screw, cover to gearcase
64 0306422 Nut
65 0306470 Lock washer
66 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
67 0552913 Stud, gearcase to exh. hsg.
68 0396032 Extension assy.
68 0396307 Extension assy.
69 0310674 Bushing
70 0326742 Sleeve
71 0390772 Chrome pump kit
72 0396644 Water pump repair kit
73 0432397 Anode kit
