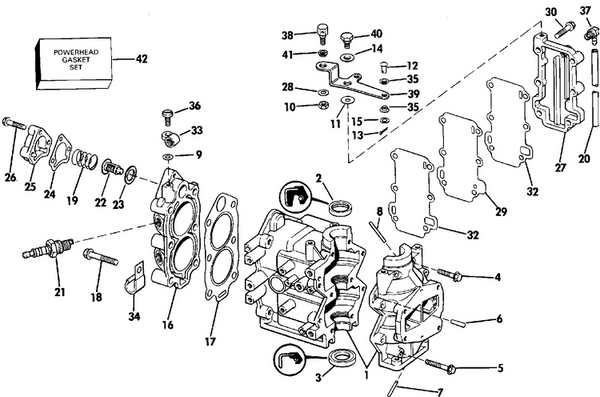

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 17
Product Description: Gasket, Cylinder Head
Category: JOHNSON / 1984 / 6 / J6RLCRM 1984 / CYLINDER & CRANKCASE - 6/8
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0393168 | Cylinder c'case assy. | |
| 1 | 0394449 | Cylinder c'case assy., | |
| 2 | 0321830 | Seal, crankshaft | |
| 3 | 0329086 | Seal, crank, lower | |
| 4 | 0314951 | Screen, mfld. to c'case | |
| 5 | 0318622 | Screw, cylinder to crankcase | |
| 6 | 0300402 | Taper pin | |
| 7 | 0328157 | Metering rod | |
| 8 | 0328156 | Tube, crankcase drain | |
| 9 | 0306413 | Washer | |
| 10 | 0313022 | Locknut, double ended bolt | |
| 11 | 0328703 | Washer, screw hook | This part replaces 0304051. |
| 12 | 0315962 | . pin, link to lever | |
| 13 | 0305650 | Cotter pin | |
| 14 | 0325542 | Bushing | |
| 15 | 0302474 | Wahser,link | |
| 16 | 0327444 | Cylindeer head | |
| 16 | 0328994 | Cylinder head | |
| 17 | 0325273 | Gasket, cylinder head | |
| 18 | 0319226 | Screw, cylinder head | |
| 19 | 0328051 | Spring, pressure release | |
| 20 | 0328388 | Hose, indicator | |
| 21 | 0386941 | Spark plub,champion l77j4 | |
| 21 | 0502180 | Spark plug, champion ql77jc4 | This part replaces 0387633. |
| 21 | 0389471 | Spark plug, champion l78 | |
| 22 | 5005440 | Thermostat | This part replaces 0378065. |
| 23 | 0329319 | Gasket, thermostat | |
| 24 | 0329076 | Gasket, thermostat cover | |
| 25 | 0330072 | Cap, thermostat | This part replaces 0325276. |
| 26 | 0331025 | Screw | This part replaces 0308751. |
| 27 | 0327259 | Exhaust cover, outer | |
| 28 | 0329241 | Washer | This part replaces 0305981. |
| 29 | 0327258 | Exhaust cover, inner | |
| 29 | 0329048 | Exhaust cover, inner | |
| 30 | 0314951 | Screen, mfld. to c'case | |
| 30 | 0319126 | Screw, muffler, upper | This part replaces 0324474. |
| 32 | 0325271 | Gasket cover | |
| 32 | 0329080 | Gasket, cover 8 models | |
| 33 | 0324685 | Connector, cable to control shaft | |
| 34 | 0310947 | Clamp | |
| 35 | 0307841 | Bushing, control lever | |
| 36 | 0326618 | Screw, clamp | |
| 37 | 0321886 | Elbow | |
| 38 | 0325309 | Pivot pin, cable to lever | |
| 39 | 0325310 | Lever, throttle advance | |
| 40 | 0325291 | Screw, lever to cover | |
| 41 | 0325298 | Bushing, connector to throttle arm assy. | |
| 42 | 0395012 | Powerhead gasket set | |
| 42 | 0394305 | Powerhead gasket set, |
