EVINRUDE-JOHNSON 325399 Gasket

Write a Review
$7.34
SKU:
325399
Schematic Object Key:
57

EVINRUDE-JOHNSON 325399 Gasket

$7.34

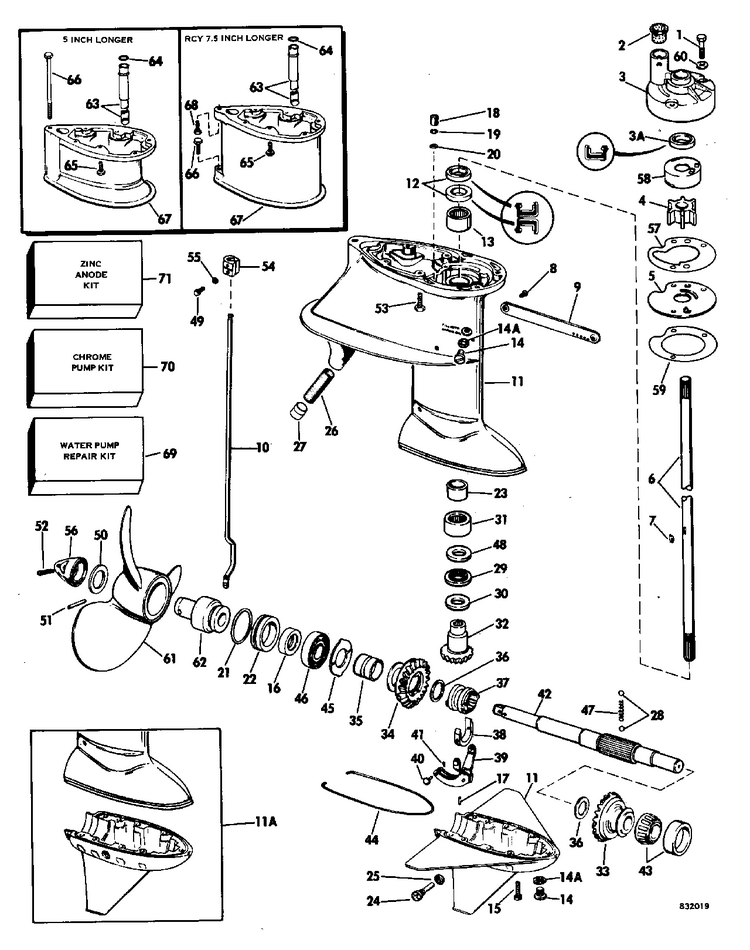

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 325399 Gasket

Schematic Object Key : 57

Product Description: Gasket

Category: EVINRUDE / 1983 / 40 / E40RSLR 1983 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0325402 Screw, bracket
2 0304026 Grommet
3 0390613 Housing, impeller
3A 0321481 .seal, bearing housing to propeller shaft
4 0390286 Impeller, pump
5 0325398 Plate, impeller housing
6 0329306 Driveshaft, standard
7 0327140 Key, impeller
0388455 0388455 Gearcase assembly
0392906 0392906 Gearcase assembly
8 0303587 Scres,cover plate This part replaces 0302509.
9 0302616 Cover, water by pass
10 0305287 Rod, shif, lower, standard
11 0392363 Gearcase brg assy. This part replaces 0388454.
11A 0392363 Gearcase brg assy.
12 0321481 .seal, bearing housing to propeller shaft
13 0386231 Bearing
14 0307551 Screw
14A 0311598 Seal
15 0330562 Screw, gearcase This part replaces 0317969.
16 0302564 . oil retainer, prop, shaft
17 0300611 . dowel, bearing
18 0304765 Bushing, shift rod
19 0301877 O ring shift rod
20 0304764 . gasket, bushing
21 0302588 "o" ring, bearng hsg.
22 0397186 Housing, oil retainer This part replaces 0303050.
23 0376856 Bearing assembly, pinion
24 0308376 Pivot pin, shift lever
25 0307853 O ring
26 0302521 . screen, water intake
27 0300077 . plug, water intake screen
28 0160084 Ball
29 0376857 Bearing, thrust
30 0304796 Pinion washer , lower
31 0376858 Bearin, pinion
32 0322605 Pinion
33 0381810 .gear bushing, fwd.
34 0312869 .gear, reverse
35 0303690 .bushing, reverse gear
36 0302565 Washer, thrust
37 0312866 Dog, shifter clutch
38 0305286 Cradle, clutch dog
39 0305288 Lever ,shifter
40 0302504 Pin, connector, shift rod
41 0306376 Cotter pin
42 0387238 Shaft, propeller
43 0385175 Cone goller assy.
44 SEAL,Gearcase halves
45 0302743 Washer, thrust
46 0385173 Ball bearing, prop. shaft
47 0312870 ,spring, detent ball
48 0304795 Pinion washer, upper
49 0304024 Screw
50 0304576 Thrust washer
51 0304575 Drive pin, propeller
52 0306394 Cotter pin
53 0317967 Screw, extension to exhaust hsg.
54 0303794 Connector
55 0301551 Washer, lock
56 0305294 Nut, propeller
57 0325399 Gasket
58 0325397 Cup, impeller
59 0325229 Gasket
60 0324956 Washer
61 0385955 Propeller, 10 3 4 x 11
61 0384460 Propeller, 10 1 2 x 13
61 0380637 Propeller 10 1 2 x 12
61 0378571 Propeller, 10 3 8 x 14
61 0376738 Propeller, 11 x 9
62 0375789 Prop.bushing assy.
10 0305519 Rod, shift, lower, long
0391168 0391168 Extension kit assy.
6 0393147 Driveshaft, long
7 0327140 Key, impeller
49 0304024 Screw
54 0303794 Connector
55 0301551 Washer, lock
63 0304175 Adapter water tube
64 0304174 "o" ring, tube adapter
65 0317967 Screw, extension to exhaust hsg.
66 0317970 Screw, exh. hsg. to gear case, rear, long 5" longer parts
67 0328572 Extension, gearcase
