EVINRUDE-JOHNSON 325604 Fitting, Boost Port

Write a Review
$9.67
SKU:
325604
Schematic Object Key:
11

EVINRUDE-JOHNSON 325604 Fitting, Boost Port

$9.67

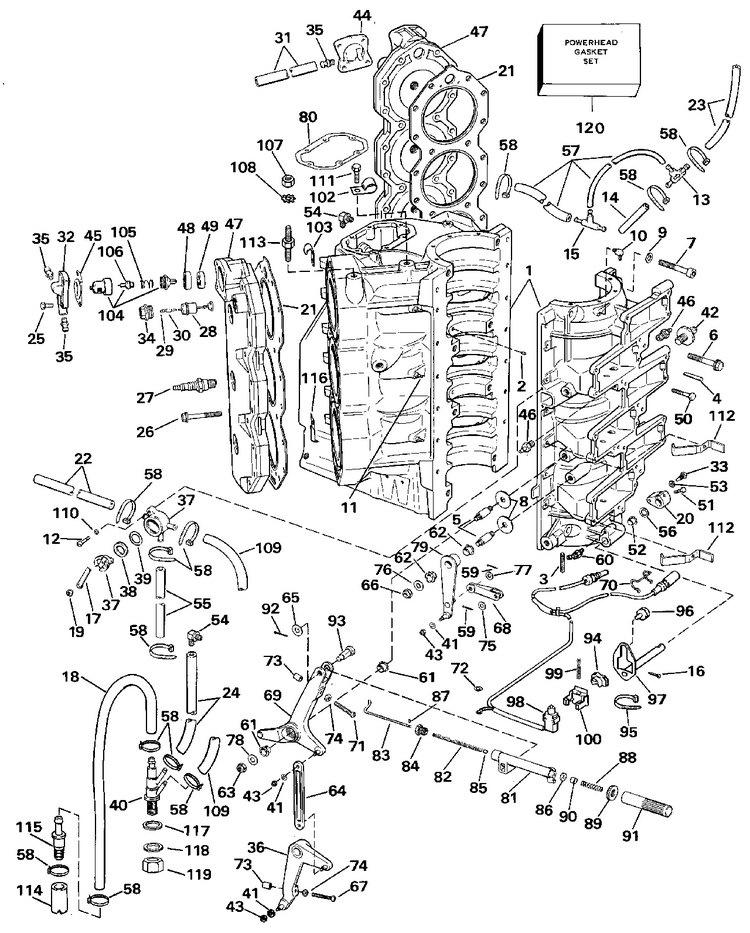

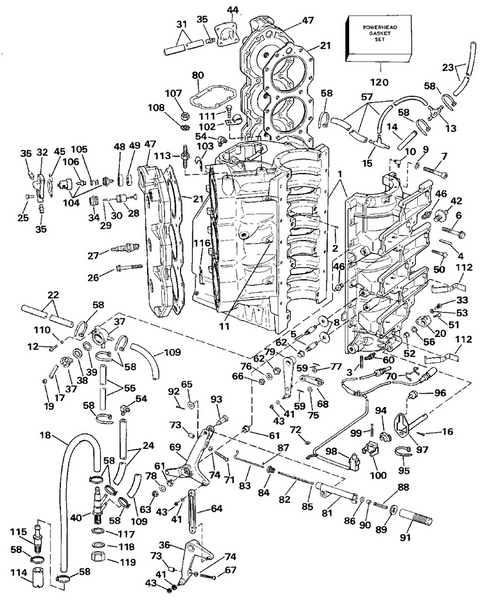

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 325604 Fitting, Boost Port

Schematic Object Key : 11

Product Description: Fitting, Boost Port

Category: EVINRUDE / 1989 / 225 / E225TXCED 1989 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0434897 Cylinder c'case assy. This part replaces 0431889.
2 0304178 Pin, dowel
3 0314616 Stud
4 0331095 Pin, c c taper
5 0338653 Stud, shift throttle levers This part replaces 0320808.
6 0326891 Screw, cylinder to crankcase
7 0326890 Screw, cylinder to crankcase
8 0320744 Washer, stud
9 0322232 Washer
10 0321598 Crankcase fitting
11 0325604 Fitting, boost port
12 0329892 Screw, housing
13 0394892 Check valve assy.
14 0772570 Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm This part replaces 0332219.
15 0325569 Tee, primer solenoid hoses
16 0330145 Cotter pin
17 0329740 Arm, control arm
18 0913438 Hose, 30 degree tee to check valve
19 0315094 Bushing
20 0335191 Lever, shift rod This part replaces 0334117.
21 0333670 Gasket, cylinder head
22 0330366 Hose, control valve to cover
23 0772570 Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm This part replaces 0332219.
24 0331215 Horse, elbow to tee
25 0909533 Screw, adapter
26 0322323 Screw
27 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
27 0432424 Spark plug , ql16v
28 0584592 Switch, temperature This part replaces 0583441.
28 0583789 Temperature switch, port
29 0512947 Terminal, bullet
30 0513185 Sleeve
31 0330365 Hose, oil cooler to aspirator
32 0329745 Cover, thermostat stbd
33 0327590 Pin, shift lever
34 0329562 Cache, interrupteur
35 0330272 Fitting
36 0396374 Throttle lever, lower
37 0394407 Control valve
38 0329787 Seal
39 0330262 Wiper
40 0914460 Aspirator
41 0328737 Washer
42 0435009 Pulse limiter This part replaces 0174404.
43 0328064 Nut
44 0329744 Cover, thermostat, port
45 0394408 Diaphragm, thermostat cover
46 0392988 Check valve
47 0433512 Cylinder head
47 0397860 Cylinder head
48 0330273 Cap, thermostat
49 0320880 Seat
50 0302288 Bolt
51 0328695 Clamp, engine cable
52 0312708 Bushing
53 0302290 Washer
54 0331894 Elbow
54 0321886 Elbow
55 0331933 Hose, adapter to control valve
56 0202026 Washer, rod
57 HOSE, Drain system
58 0320107 Tie strap
59 0305650 Cotter pin
60 0319253 Fitting, c c lubrication
61 0308532 Bague, levier de verrouillage
62 0308532 Bague, levier de verrouillage
63 0315077 Locknut, 3 8 24 ss
64 0331224 Link, shift lever to shift arm
65 0330995 Washer, override spring
66 0315077 Locknut, 3 8 24 ss
67 0334219 Screw
68 0331737 Link, shift arm
69 0396714 Throttle lever, upper
70 0511618 Retainer, connector, 2 pin
71 0333976 Screw, actuator 1 4 20 x 2.5
72 0328701 Lockwasher, double ended bolt
73 0318660 Bumper, screw, throttle stop
74 0328741 Nut, input stud
75 0328702 Washer
76 0330266 Washer, trail lock lever
77 0328702 Washer
78 0330266 Washer, trail lock lever
79 0433481 Shift arm This part replaces 0393873.
80 0344472 Gasket, rect. reg. to cyl. block This part replaces 0330412.
81 0432095 Link assy., spark advance
82 0326738 Spring, link
83 0334313 Rod, spark advance link
84 0331864 Cap, spring housing
85 0328635 Bushing, spring
86 0334311 Stop, adjustment
87 0329770 Pin, rod
88 0334312 Spring, adjustment housing
89 0334314 Locknut, housing
90 0334315 Guide, spring
91 0334316 Housing, adjustment
92 0330145 Cotter pin
93 0328636 Pin, advance link
94 0513811 Bracket, neutral switch slider This part replaces 0513132.
95 0320107 Tie strap
96 0331404 Axe, interrupteur de démarrage au point mort
97 0431908 Lever, neutral switch
98 0584011 Switch cable This part replaces 0583608.
99 0333749 Ressort, interrupteur de démarrage au point mort
100 0513134 Bracket, neutral switch
101 0317893 Tie strap
102 0310928 Clamp, steering bracket
103 0330157 Clamp
106 0394411 Thermostat seat assy.
107 0328740 Nut, throttle friction
109 0334740 Hose, control valve to aspirator
110 0303715 Washer, rivet
111 0319590 Screw, plate 3 8 16 x .75
112 0334169 Clamp, hose, control valve
113 0333595 Bolt, double end
114 0913439 Hose, aspirator
115 0986534 Check valve, aspirator
116 0316487 Retainer
117 0122220 Seal
118 0317936 Washer
119 0327805 Écrou
120 0432571 Powerhead gasket set
