EVINRUDE-JOHNSON 326333 Retainer

Write a Review
$1.25
SKU:
326333
Schematic Object Key:
62

EVINRUDE-JOHNSON 326333 Retainer

$1.25

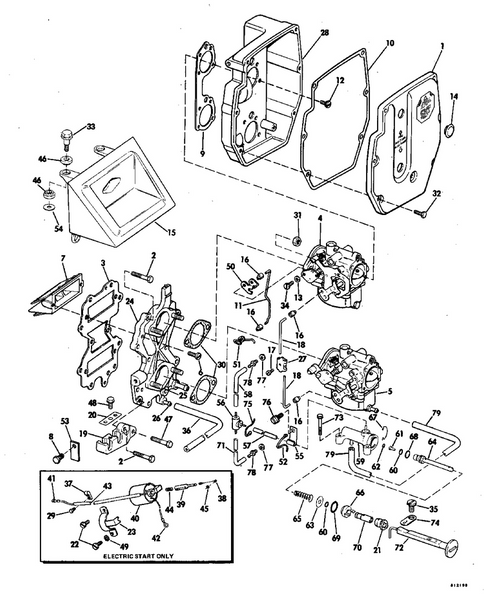

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 326333 Retainer

Schematic Object Key : 62

Product Description: Retainer

Category: JOHNSON / 1981 / 50 / J50BELCIC 1981 / INTAKE MANIFOLD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0387869 Cover, air silencer
1 0388140 Cover, air silencer
2 0306409 Screw, anchor block lower
3 0335633 Gasket This part replaces 0317504.
4 CARBURETOR ASSY., Upper
5 CARBURETOR ASSY., Lower
6 0306474 Screw
7 0389823 Clapet
8 0316134 Screw, clamp to trunnion
9 0321497 Gasket, air silencer
10 0330698 Gasket This part replaces 0316091.
10 0320679 Gasket, base to cover
11 0329888 Link This part replaces 0321070.
12 0327794 Screw, base to carburetor
13 0306547 3.washer, mounting stud
14 0316074 Bouchon, couvercle de volant moteur
14 0320978 Plug
15 0436662 Bracket, starter handle This part replaces 0326135.
16 0313329 Lockwasher, carburetor link
17 0303686 Screw, fastener
18 0316073 Link, carburetor choke
19 0320276 Anchor block
20 0319967 Retainer, detent
21 0320731 Bushing, choke knob
22 0310539 Screw, clamp choke solenoid
23 0316036 Clamp choke solenoid
24 0392273 Manifold assy.
24 0391780 Manifold assy
25 0314497 Stud, carburetor mounting
26 0325659 Fitting
27 0318974 Fastener, cable clamp
28 0322088 Base
28 0384265 Base and nipple assy
29 0313117 Scr,clamp,eng cable
30 0325092 Gasket
31 0316355 But, carburetor mounting
32 0314576 Screw
32 0334884 Screw This part replaces 0321471.
33 0327768 Screw, rope guide pulley This part replaces 0323661.
34 0302812 Screw, ground terminal
35 0313117 Scr,clamp,eng cable
36 HOSE, Air silencer to manifold
36 HOSE, Air silencer to manifold
37 0310441 Clamp, small
38 0316075 Spring, choke colenoid
39 0324094 Plunger, choke solenoid
40 0581929 Solenoid
41 0510780 8 ring termianl
42 0510818 Terminal, ring
43 0510781 Tubing, sleeve
44 0324397 Spring, plunger to solenoid
45 0307529 "o" ring, cam follower
46 0326136 Grommet
47 0306418 Screw, anchor block lower
48 0328724 Screw This part replaces 0308738.
49 0306488 Lock washer, solenoid ground
50 0321071 Lever, throttle adjustment
51 0314807 Spring
52 0317893 Tie strap
53 0316039 Retainer
54 0331249 Washer, handle This part replaces 0314957.
55 0310441 Clamp, small This part replaces 0310493.
56 0391068 Check valve, primer
57 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0326363.
58 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0326364.
59 0398793 Primer pump assy This part replaces 0390358.
60 0331365 O ring This part replaces 0326721.
61 0327970 Check valve
62 0326333 Retainer
63 0326334 Washer, o ring
64 0393935 Plunger and valve This part replaces 0326335.
65 0333540 Spring This part replaces 0326336.
66 0398871 End cap This part replaces 0326337.
67 0326338 Retainer
68 0331364 O ring This part replaces 0326346.
69 0909678 O ring, vacuum switch
70 0326422 Connector, primer pump
71 HOSE, Tee to carb
72 0395149 Knob, primer pump This part replaces 0391549.
73 0909533 Screw, adapter This part replaces 0309646.
74 0327043 Detent, primer knob
75 0320107 Tie strap
76 0307019 Screw, clamp
77 0303630 Washer
78 0326952 Nipple, primer
79 HOSE, Carb. to primer pump
