EVINRUDE-JOHNSON 327337 Shift Rod

Write a Review
$142.99
SKU:
327337
Schematic Object Key:
50

EVINRUDE-JOHNSON 327337 Shift Rod

$142.99

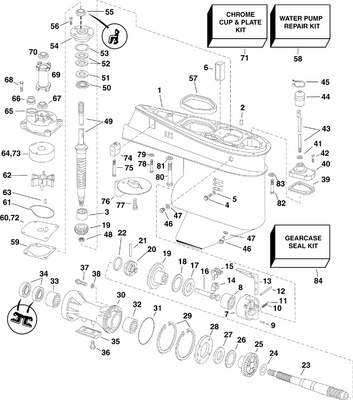

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 327337 Shift Rod

Schematic Object Key : 50

Product Description: Shift Rod

Category: JOHNSON / 1984 / 75 / J75ECRD 1984 / GEARCASE - 20" MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0392478 Gearcase bearing assy.
2 0382343 Bearing, pinion
3 0324852 Retaining screw seal
0307853 0307853 O ring
4 0314175 Screen, water intake
5 0391365 Bearing housing assembly.
5A 0382407 Bearing assy, forward gear
6 0202136 . . pin, cover to gearcase
7 0911961 Spring, detent This part replaces 0326666.
8 0320145 Pin, lever to housing
9 0326670 Detent, shifter
11 0324037 Lever, shift
12 0327345 Ball, detent
13 0313447 Thrust washer
14 0382408 Thrust bearing
15 0397338 Gear and pinion assy. This part replaces 0389964.
16 0326668 Shaft, shift dog
17 0318303 Shifter, clutch dog
18 0313448 Pin, clutch dog
19 0324369 Spring, clutch dog pin
20 0439185 Propeller shaft assy. This part replaces 0387879.
21 0318304 Gear, reverse
22 0313453 Retainer plate, bearing housing
23 0313445 Retaining ring
24 0313446 "o" riing, brg. hsg
25 0434391 Bearing housing assembly. This part replaces 0393717.
26 0382407 Bearing assy, forward gear
27 0379504 Propshaft bearing assembly
28 0330137 Seal This part replaces 0321463.
29 0320041 Screw, housing to gearcase
30 0317178 O ring
31 0313339 Nut, pinion to driveshaft
32 0302325 Screw, impeller housing
33 0391378 Driveshaft assy
34 0385068 Thrust bearing assembly.
35 0317230 Thrust washer
36 0317231 Shim, . 002"
36 0317232 Shim, 0.005 in. 0,12mm
36 0323889 Shim, 0.003 in. 0,07mm
36 0323890 Shim, 0.004 in. 0,10mm
37 0313754 O ring
38 0385087 Bearing housing assembly.
39 0321466 . oil retainer, driveshaft
40 0909386 Screw, housing to gearcase
41 0307551 Screw
42 0311598 Seal
43 0385043 Thrust bearing assy.
44 0324937 Seal, gearcase to inner exh. hsg.
45 0324766 Thrust washer, forward gear
46 0318544 Screw, fill drain
0311598 0311598 Seal
47 0316484 Thrust washer, shifter
48 0388651 Cover assy.
49 0318372 "o" ring, shift rod
50 0327337 Shift rod
51 0314082 Gasket, cover to gearcase
52 0334163 Cradle, shifter This part replaces 0322900.
53 0324980 Linder, impeller housing
54 0324981 Seal, impeller housing
55 0321940 Plate
56 0341038 Plate, impeller housing This part replaces 0319275.
57 0341732 Grommet, housing This part replaces 0315748.
58 0326649 O ring
59 0432955 Water pump repair kit includes impeller housing This part replaces 0391049.
60 0314008 Bague, tube à eau vers capot
61 0319292 Screw, clamp
62 0324334 Screw
63 0319276 Guide, water tube
64 0323950 Key, drive shaft to impeller
65 0396725 Impeller key assembly This part replaces 0389557.
66 0552968 Screw, plate 3 8 16 x 1.5
67 0307708 Lock washer, mounting
68 0306503 Screw, adjustment rod
69 0306470 Lock washer
70 0313697 Scr,grc to hsg.long
71 0306314 L'washer,scr,long
72 0127084 Thrust bushing This part replaces 0318841.
73 0315810 Spacer, impeller nut
74 0314503 Nut, impeller
75 0314502 Cotter pin
76 0338742 Compensateur de dérive This part replaces 0327810.
77 0313715 Screw, cap, hex hd, 7 16 14 x 1
78 0321452 Grommet
79 0327482 Block, gearcase
79 0436745 Anode This part replaces 0393023.
80 0392462 Anode and insert
81 0322000 Screw, starter motor
81 0328096 Screw
82 0324430 Screw, anode
83 0301151 Lockwasher, anode
84 0313022 Locknut, double ended bolt
85 0383160 Propeller 14 x 19
85 0382761 Propeller ,14 x 11
85 0765181 Propeller This part replaces 0391668.
85 0765182 Propeller w models This part replaces 0391198.
85 0390896 Propeller, 13 19 al.
85 0389788 Propeller, 12 3 4 x 21
85 0390895 12 3 4 x 23
85 0390750 Prop., 13 1 2 x 23 sst ss
85 0392261 Propeller 13 3 4 x 13 sst
85 0389948 Propeller, 12 3 4 x 17 sst
85 0389510 Propeller, 13 19 sst
85 0389512 Pro, 12 3 4 x 21 sst cupped
85 0389514 Propeller 12 3 4 x 23 sst
85 0389792 Propeller 14 x 11 sst
85 0389949 Propeller, 12 3 4 x 15 sst
85 0765183 Propeller, wdel models This part replaces 0391199.
86 0332393 Converging ring This part replaces 0325996.
87 0384977 Bushing assy, prop, 3 blade
88 0396726 Water pump repair kit This part replaces 0390769.
88 0391634 Water pump reair kit, includes imeller hsg
89 0389145 Chrome cup plate kit
90 0392461 Anode kit
