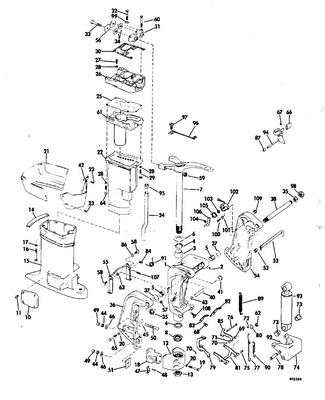

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 83
Product Description: Pin, Support Bracket To Swivel Bracket
Category: JOHNSON / 1990 / 9.9 / J10RELESC 1990 / MIDSECTION (ALL MODELS EXCEPT SEL)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0124346 | Spacer, tilt tube | |
2 | 0323599 | Locknut | |
3 | 0363253 | Nut,lock | This part replaces 0310702. |
4 | 0315776 | Rondelle | |
5 | 0363013 | Screw | This part replaces 0334427. |
0398105 | 0398105 | Connector assembly, shift | |
6 | 0123440 | . connector, shifting | |
7 | 0303218 | Groove pin | |
8 | 0303230 | Spring, shift lever | |
9 | 0303240 | Lock pin, shift lever | |
10 | 0332960 | Tilt bolt, stern bracket to swivel bracket | |
11 | 0303884 | Washer | |
12 | 0301917 | O ring | |
13 | 0330507 | Swivel bracket | |
14 | 0351896 | Tilt tube | This part replaces 0321511. |
15 | 0309967 | Bushing, pilot shaft, lower | |
16 | 0335332 | Pivot shaft | |
17 | 0321636 | . pin, connector to guide | |
18 | 0306387 | . cotter pin, connector to guide | |
19 | 0434151 | Steering bracket | This part replaces 0433820. |
20 | 0313607 | Lube fitting | |
21 | 0320416 | Wire, reverse lock release | |
22 | 0338874 | Carrying handle | This part replaces 0331096. |
23 | 0328285 | Bushing, tilt lock shaft to sw. brkt. | |
24 | 0319049 | Bell crank, reverse lock | |
25 | 0304380 | , bow | |
26 | 0326943 | Pin, link to lock lever | |
27 | 0313607 | Lube fitting | |
28 | 0305650 | Cotter pin | |
29 | 0432453 | Knob tilt pin assy. | |
30 | 0308684 | Screw, cover to housing | |
31 | 0319108 | Screw belcrank | |
32 | 0315077 | Locknut, 3 8 24 ss | This part replaces 0325451. |
33 | 0312977 | Bow washer, link to lever | |
34 | 0308052 | Washer | |
35 | 0309966 | Thrust washer, lower swivel bracket | |
36 | 0310540 | .washer, shaft | |
37 | 0304027 | Screw | |
38 | 0302860 | Screw. starter motor | |
39 | 0317000 | Cable, starter cable | This part replaces 0320687. |
0434073 | 0434073 | Steering kit assy. | |
40 | 0552906 | Cotter pin, upper pivot | |
41 | 0328703 | Washer, screw hook | This part replaces 0304051. |
42 | 0433845 | Drag ling brkt. assy. | |
43 | 3852420 | Locknut, throttle lever | This part replaces 0900402. |
44 | 0909386 | Screw, housing to gearcase | |
45 | 0328268 | Stern bracket, port | |
46 | 0433675 | Clamp scr. hand. assy. | |
46 | 0391421 | Clamp screw handle | |
47 | 0321922 | Screw, shoulder | |
48 | 0337017 | Plate, swivel | This part replaces 0307561. |
49 | 0328269 | Stern bracket, starboard | |
50 | 0512066 | Clamp | |
51 | 0318989 | Seal, upper mounts exh. hsg. | |
52 | 0317624 | Screw, driveshaft hsg | |
53 | 0305650 | Cotter pin | |
54 | 0398001 | Handle rivet | |
55 | 0328701 | Lockwasher, double ended bolt | |
56 | 0582961 | Cable starer switch assy. | |
57 | 0510780 | 8 ring termianl | |
58 | 0511532 | Tubing, starter switch | |
59 | 0395699 | Starter switch | |
60 | 0334951 | Boot, switch | |
61 | 0512682 | Cale verrouillage, 3 broches | |
62 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
63 | 0204039 | 10 ring terminal | |
64 | 0306799 | L'washer,bracket to hsg. | |
65 | 0306932 | Nut | |
66 | 0333440 | Clamp, battery cable | This part replaces 0317755. |
67 | 0328724 | Screw | This part replaces 0308738. |
68 | 0319601 | . nut, switch | |
69 | 0319537 | Clip | |
70 | 0320790 | Bellcrank, shift rod | |
71 | 0305650 | Cotter pin | |
72 | 0302504 | Pin, connector, shift rod | |
73 | 0319563 | Scerw, lever to shaft | |
74 | 0311407 | Lockwasher, lever to shaft | |
75 | 0318950 | Bushing, shift lever to motor cover, inner | |
76 | 0318951 | Bushing, shift lever to c'case | |
77 | 0392878 | Shift lever bracket to hsg. | |
78 | 0320931 | Lever, shaft lever to shift lock link. | |
79 | 0308017 | Screw, bellcrank to shift lever | |
80 | 0586030 | Ground wire, steering bracket | This part replaces 0584060. |
81 | 0328289 | Support bracket, tilt lock port | |
82 | 0306486 | Washer, screw, negative | |
83 | 0328290 | Pin, support bracket to swivel bracket | |
84 | 0325914 | Bushing, stern bracket | |
85 | 0551113 | Ressort de friction de direction | |
86 | 0397736 | Block assy., friction | |
87 | 0321531 | Screw, friction adjust. swivel brkt. | |
88 | 0332662 | Block, friction, swivel bracket | |
89 | 0332663 | Liner | |
90 | 0310540 | .washer, shaft | |
91 | 0319050 | Lever, reverse locking | |
92 | 0322949 | Link, reverse lock | |
93 | 0338657 | Link, shallow water drive | This part replaces 0320426. |
94 | 0320427 | Spring, shallow water drive | |
95 | 0319279 | Spring, reverse lock | |
96 | 0320428 | Spring, reverse lock rod | |
97 | 0204293 | Washer, hinge pin | |
98 | 0325017 | Nut, tilt lock pin | |
99 | 0319227 | Screw, knob | |
100 | 0319047 | Pin, tilt lock to stern bracket | |
101 | 0328048 | Knob, tilt reverse lock lever | |
102 | 0393199 | Lever shaft assy. lock | |
104 | 0314099 | Rondelle, vis, pignon de distribution | |
105 | 0313022 | Locknut, double ended bolt | |
106 | 0300364 | Link, conical, tilt shaft | |
107 | 0303884 | Washer | |
108 | 0319699 | Thrust washer, stern bracket | |
109 | 0319787 | Bushing | |
110 | 0309738 | Plate stern bracket | |
111 | 0319055 | Pin, link to bracket | |
112 | 0319124 | Shift rod, upper |
