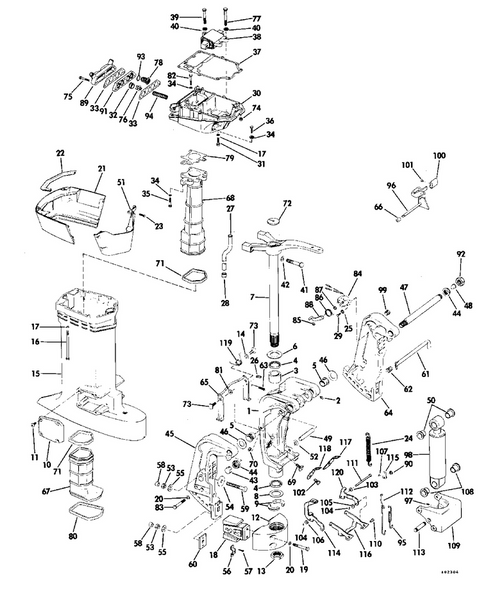

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 16
Replacement: This part (328698) replaces 0908931.
Product Description: Screw, Adapter To Crankcase
Category: EVINRUDE / 1980 / 85 / E85STXCSA 1980 / EXHAUST HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0432708 | Swivel bracket | This part replaces 0389335. |
1 | 0432710 | Swivel bracket | This part replaces 0389336. |
2 | 0313607 | Lube fitting | |
3 | 0320962 | Bushing | |
4 | 0320937 | Seal | |
5 | 0321035 | Brushing, swivel bracket | |
6 | 0320866 | Rondelle de butée, arbre d'articulation | |
7 | 0392518 | Steering arm assy. | This part replaces 0387222. |
7 | 0392519 | Steering arm assy. | This part replaces 0387223. |
8 | 0320865 | Thrust wasaher | |
9 | 0320942 | Keeper pivot shaft | |
10 | 0338942 | Cover, mount bracket lower | This part replaces 0320864. |
11 | 0322000 | Screw, starter motor | |
12 | 0322860 | Mount backet | |
13 | 0320746 | Ecrou, support de montage | |
14 | 0553766 | Bow washer | |
15 | 0323549 | Eshaust housing,outer | |
15 | 0435318 | Exhaust housing, outer | This part replaces 0323550. |
16 | 0328698 | Screw, adapter to crankcase | This part replaces 0908931. |
17 | 0306470 | Lock washer | |
18 | 0387783 | Rubber mount, lower, std | |
18 | 0387998 | Rubber moung,hi performance | |
19 | 0318612 | Screw, bracket to cover | This part replaces 0321737. |
20 | 0307708 | Lock washer, mounting | |
21 | 0390131 | Cover, exhaust housing, rear | |
22 | 0318258 | Seal cover | |
23 | 0328694 | Screw, bracket | This part replaces 0321527. |
24 | 0321920 | Spring, reverse lock | |
25 | 0328739 | Rondelle entre ancrage et support | This part replaces 0313396. |
26 | 0335814 | Retainer, trail lock | This part replaces 0325525. |
27 | 0323403 | Water tube | |
27 | 0323404 | Water tube | |
28 | 0305145 | Grommet | |
29 | 0319682 | Screw, extension | |
30 | 0324059 | Adapter, exhaust housing | |
31 | 0302479 | Screw, starter mounting | |
32 | 0321692 | Grommet | |
33 | 0332369 | Gasket | This part replaces 0321897. |
34 | 0302290 | Washer | |
35 | 0306418 | Screw, anchor block lower | |
36 | 0306409 | Screw, anchor block lower | |
37 | 0342513 | Gasket, adapter to powerhead | This part replaces 0321727. |
38 | 0387797 | Rubber mount assy., upper | |
39 | 0301431 | Screw | |
40 | 0307708 | Lock washer, mounting | |
41 | 0335612 | Screw, upper | This part replaces 0316406. |
42 | 0322624 | Washer, lag screw | This part replaces 0313169. |
43 | 0317894 | Cap, tilt tube | |
44 | 0323599 | Locknut | This part replaces 0316828. |
45 | 0395844 | Steering bracket, assy., stbd. | This part replaces 0325595. |
46 | 0910992 | Rondelle, tube de relevage | This part replaces 0321036. |
47 | 0335553 | Tilt tube | This part replaces 0321052. |
48 | 0318173 | Plug, stop switch | |
49 | 0320792 | Pin | |
50 | 0322481 | Bushing, tilt cylinder | |
51 | 0323800 | Cover, exhause housing, front, plastic | |
52 | 0321054 | Spring clip | |
53 | 0363254 | Nut, stern bracket screw | This part replaces 0321861. |
54 | 0307238 | Rondelle | |
55 | 0320248 | Rondelle, écrou | |
56 | 0318273 | Bolt hex retainer 1 2 in. | |
57 | 0319886 | Screw | |
58 | 0318572 | Bolt thread protective cap 1 2 in. | |
59 | 0318573 | 3.5" bolt | |
59 | 0363012 | Screw, bracket mounting | This part replaces 0313327. |
59 | 0363011 | Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm | This part replaces 0321577. |
60 | 0318272 | Nut backing plate square 1 2 in. | |
61 | 0436541 | Rod assy, thrust | This part replaces 0387278. |
62 | 0321053 | Sorubg,thrust rod | |
63 | 0323142 | Spring, trail lock return | |
64 | 0396309 | Stern bracket assembly, port | This part replaces 0325594. |
65 | 0390442 | Locating lever, rod | |
66 | 0321868 | Spacer | |
67 | 0327796 | Exhasut hsg,inner lower | This part replaces 0320838. |
67 | 0327797 | Exhaust housing, inner lower | This part replaces 0320839. |
68 | 0323255 | Eshaust hsg,inner | |
69 | 0321499 | Thrust pad, trim rod | |
70 | 0315077 | Locknut, 3 8 24 ss | |
71 | 0320936 | Joint, boîtier échappement, inférieur | |
72 | 0322302 | Seal, adapter to frame | |
73 | 0329109 | Shoulder screw | This part replaces 0321389. |
74 | 0316355 | But, carburetor mounting | This part replaces 0315204. |
75 | 0600014 | Screw | |
76 | 0318395 | Check valve | |
77 | 0317222 | Screw | |
78 | 5005440 | Thermostat | This part replaces 0378065. |
79 | 0323459 | Gasket | |
80 | 0320961 | Joint, boîtier d'engrenages vers carter intérieur | |
81 | 0121025 | Clip,contact retainer | |
82 | 0303398 | Screw, lower | This part replaces 0302030. |
83 | 0552968 | Screw, plate 3 8 16 x 1.5 | This part replaces 0321675. |
83 | 0318612 | Screw, bracket to cover | This part replaces 0321737. |
84 | 0582153 | Sending unit | |
85 | 0511527 | Retainer | |
86 | 0511528 | Spring | |
87 | 0320689 | Ecrou | |
88 | 0512211 | Arm | This part replaces 0511530. |
89 | 0321690 | Cover, thermostat | |
90 | 0323144 | Spacer | |
91 | 0321693 | Valve body | |
92 | 0322376 | Nut, wiper, tilt tube | |
93 | 0321932 | Gasket, thermostat | |
94 | 0317245 | Spring, control valve | |
95 | 0322085 | Spring, trail lock return | |
96 | 0390097 | Lever and ahsft | |
97 | 0322628 | Set screw, spacer | |
97 | 0909676 | Screw | |
98 | 0387792 | Shock absorber and spring | |
99 | 0321243 | Bushing, cable | |
101 | 0318238 | Screw | |
102 | 0123077 | Screw, bracket, remote model | |
103 | 0204757 | Bow washer | |
104 | 0302858 | Cotter pin, shoulder bolt | |
105 | 0303887 | Washeer, pin to swivel bracket | |
107 | 0319108 | Screw belcrank | |
108 | 0321246 | Bushing, shock lower | |
110 | 0321591 | Pin, link to locking | |
111 | 0321592 | Pin, link to swivel bracket | |
113 | 0321695 | Pin, cylinder, lower | |
114 | 0321748 | Lin, reverse lock, starboard | |
115 | 0325526 | Belcrank, releasing rod | |
116 | 0321750 | Locking lever, reverse lock | |
119 | 0325528 | Spring, trail lock | |
120 | 0321837 | Link, reverse lock, port |
