EVINRUDE-JOHNSON 328725 SCREW C=1

Write a Review
$7.23
SKU:
328725-OMC

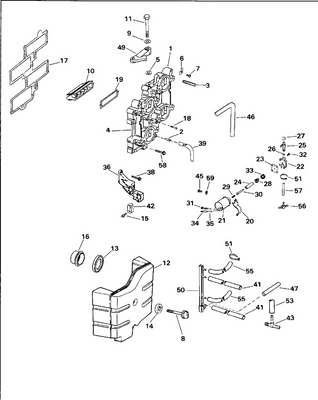

Schematic Object Key:
29

EVINRUDE-JOHNSON 328725 SCREW C=1

$7.23

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 328725 Screw, Cover To Gearcase

Schematic Object Key : 29

Product Description: Screw, Cover To Gearcase

Category: JOHNSON / 1996 / 150 / J150ELEDB 1996 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0438902 Cylinder c'case assy., 150gl, sl This part replaces 0438421.
1 0438422 Cylinder c'case assy., 150
1 0438423 Cylinder c'case assy., 175
2 0304178 Pin, dowel
3 0305070 Axe, carter moteur vers bloc
4 0336630 Goupille, cylindrique
5 0336166 Screw, c c to block
6 0335611 Screw, cyl to case, long
7 0335369 Fitting, drain
8 0437784 Ens. clapet anti retour
9 0437773 Check valve
10 0433817 Ensemble levier, tige de commande de sens de marche
11 0332135 Plug
12 0306500 Screw, belt retainer
13 0437680 Spark plug, champion ql82yc
13 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
13 0432424 Spark plug , ql16v
14 0305650 Cotter pin
15 0585184 Interrupteur thermostatique, tribord
16 0511469 Terminal, pin
17 0513357 Connector, 1 pin receptacle
18 0329562 Cache, interrupteur
19 0338632 Thermostat cover
20 0585023 Interrupteur thermostatique, bâbord
21 0511469 Terminal, pin
22 0512746 Connecteur, 2 broches
23 0329562 Cache, interrupteur
24 0342916 Hose, exhaust grommet to block
25 0331188 O ring
26 0335981 Seal, t stat cylinder head to c c
27 0328744 Screw, clamp 1 4 20 x .75
28 0330935 Bague, retenue de la tige du levier de sens de marche
29 0328725 Screw, cover to gearcase
31 HOSE, Drain system
32 0436853 Kit, rubber mount assy., upper
33 0344277 Screw, upper mount This part replaces 0343024.
36 0335523 O ring, cylinder head
37 0330933 Screw, reverse lock link
38 0343118 Liaison, levier vers bras de commande de sens de marche This part replaces 0335382.
39 0328725 Screw, cover to gearcase
40 0306012 Bow washer
41 0336136 Clamp
42 0311015 Bushing, pawl
43 0316195 Screw
44 0202026 Washer, rod
45 0439333 Shift lever This part replaces 0435518.
46 0328702 Washer
47 0349060 Cache, tourillon This part replaces 0335528.
48 0303492 Fitting, crankcase
49 0330941 Pin, retainer
50 5000470 Shift shaft arm assy This part replaces 0433476.
51 0349061 Tourillon This part replaces 0340761.
52 0435491 Thermostat
53 0338174 Ressort, thermostat
54 0328733 Rondelle, ressort
55 0333774 Attache, commande vers tringlerie de sens de marche
56 0433475 Grommet insert, exhaust relief
57 0328744 Screw, clamp 1 4 20 x .75
58 0335316 Joint, tige de commande de sens de marche
59 0436857 Bouchon gicleur, indicateur d'éjection
60 0320107 Tie strap
61 0335521 Bague, levier de sens de marche vers bloc
62 0340767 Fitting, lower drain
63 0324677 O ring, valve core, upper
64 0328649 Screw, bowl to body
65 0301967 O ring
66 0337548 Cylinder head, 150
66 0338082 Cylinder head
66 0338311 Cylinder head, 150
66 0338311 Cylinder head, 150
67 0337478 Guide, fils du stator
68 0349557 Mount This part replaces 0328584.
69 0349556 Washer This part replaces 0329749.
70 0330263 Screw, upper mount retention
71 0341689 Filetr, overboard
72 0315189 Gasket, oil indicator
74 0360761 Retainer, upper mount This part replaces 0340418.
75 0335369 Fitting, drain
76 0585013 Switch cable
77 0510818 Terminal, ring
78 0513356 Connector, 1 socket plug
81 0581656 Terminal, socket
82 0513811 Bracket, neutral switch slider
83 0513134 Bracket, neutral switch
84 0333749 Ressort, interrupteur de démarrage au point mort
85 0338990 Pin, shift assist
86 0512741 Retainer, connector, 1 pin
87 0335499 Joint d'étanchéité, bâbord
88 0335500 Joint, tribord
89 0313537 Fitting, tee recirculation hose
90 HOSE, Tee to air silencer, 2 1/4 in. (57mm)
91 HOSE, Tee to upper bearing vent, 6 in. (152mm
92 0437155 Powerhead gasket set
