EVINRUDE-JOHNSON 329197 PIN C=4

Write a Review
$11.49
SKU:
329197
Schematic Object Key:
55

EVINRUDE-JOHNSON 329197 PIN C=4

$11.49

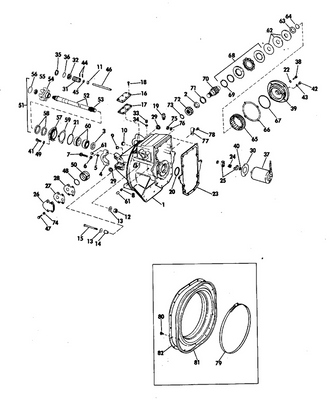

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 329197 Pin, Control Lever

Schematic Object Key : 55

Replacement: This part (329197) replaces 0304155.

Product Description: Pin, Control Lever

Category: JOHNSON / 1976 / 40 / 40EL76R 1976 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0390423 Cylinder c'case assy. This part replaces 0387654.
2 0300788 Plug expansion
3 0303423 ,nipple,oil hose
4 0302647 Clamp
5 0304178 Pin, dowel
6 0302600 Screw
7 0307587 Plug, crankcase
8 0302579 Screw, allen
9 0308354 Stud, starter bracket
9 0308353 Stud
10 0329241 Washer This part replaces 0306482.
11 0121731 Nut, hook, front This part replaces 0308355.
12 HOSE,Oil return
13 0300343 Washer, crankcase to cylinder
14 0300402 Taper pin
15 0301431 Screw
16 0306409 Screw, anchor block lower
17 0321528 Nut, shifter lock
18 0305027 Screw
19 0387009 Spark plug, champion l4j
20 0306325 . . lockwasher, solenoid screw
21 0305006 Screw
22 0307471 Screw
22 0306487 Screw
23 0307069 Gasket, cylinder head
24 0318961 Cylinder head
25 0310441 Clamp, small This part replaces 0310493.
25 0330151 Cable clamp, filter This part replaces 0316386.
26 0318962 Gasket, cover
27 0323005 Cover, cylinder head This part replaces 0318963.
28 0311505 Lockout, solenoid to bracket
29 0300646 Screw, clamp, fuel filter
30 0319884 Nut
31 0304762 Gakset, exhaust cover
32 0304761 Cover, exhaust, inner
33 0319470 Exhaust cover, outer
34 0306418 Screw, anchor block lower
35 0386056 Safety switch assy
36 0310498 Washer
37 0318920 Screw
38 0318209 Bracket, safety switch
39 0318462 Spring, shifter lock
40 0385825 Shifter lock
41 0307466 Scres, bowl to body
42 0319580 Screw
43 0136603 Bushing
44 0305078 Bracket, starboard
44 0305084 Backet, starboard
45 0304847 Seal, starter motor
46 0309040 Clamp, exhaust cover
47 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0317252.
48 0772568 Flexible, solénoïde d'amorçage vers raccord amorçage tribord, 14" 356 mm This part replaces 0317251.
49 0317254 Gasket, c'case to hsg
50 0385109 Hsg. nipple valve assy
51 0350831 Washer
52 0307841 Bushing, control lever
53 0302948 Screw
54 0305609 Bearing clamp
55 0329197 Pin, control lever This part replaces 0304155.
56 0386492 Contorl lever
57 0300646 Screw, clamp, fuel filter
58 0305077 Bracket, port
59 0306396 Lock washer, control to boat
60 0307471 Screw
61 SEAL,Cylinder to c'case
62 0304784 Gasket, by oass cover
63 0386364 By pass cover lower
64 0308077 Screw
65 0306487 Screw
66 0385107 By pass cover upper
67 0319354 Screw, armature plate stop
68 0313022 Locknut, double ended bolt
69 0310439 Clamp, battery cable This part replaces 0311339.
70 0319795 Spring, control lever
71 0304941 Bracket
72 0302376 Lockwasher
73 0309905 Scew,cylinder head
74 0312050 Bracket, lift
75 0318265 Lever, exh. cover, neutral start
76 0318165 Dispositif de retenue, tringlerie de carburateur
77 0316073 Link, carburetor choke
78 0318627 Fastener, links
79 0318263 Screw, lever to exhaust cover
80 0314000 Bracket, safety switch
81 0328724 Screw This part replaces 0312889.
82 0300181 Screw, fastener to link
83 0318491 Screw, adj shifter lock
84 0328741 Nut, input stud This part replaces 0304753.
85 0317657 Lcokout lever
86 0321995 Shoulder screw
87 0317655 Washer
88 0315763 Return spring, lever
89 0317971 Lockout lever, exh. cover
90 0322781 Screw, lockout lever boss This part replaces 0322010.
91 0309020 Spring washer
92 0302473 Bow washer
93 0328703 Washer, screw hook This part replaces 0304051.
94 0314416 Bumber, advance screw
95 0511271 Terminal block
96 0315003 Screw, teminal to terinmal block
97 0341474 Screw, cover This part replaces 0319819.
98 0581778 Rectifier lead assy. This part replaces 0581366.
99 0510780 8 ring termianl
101 0314576 Screw
102 0307472 Rondelle
103 0310441 Clamp, small
105 0511514 Clamp, cable
107 0386580 Powerhead gasket set less cylinder head gas ket
