EVINRUDE-JOHNSON 329647 Bracket, Steering

Write a Review
$79.99
SKU:
329647-OMC
Schematic Object Key:
80

EVINRUDE-JOHNSON 329647 Bracket, Steering

$79.99

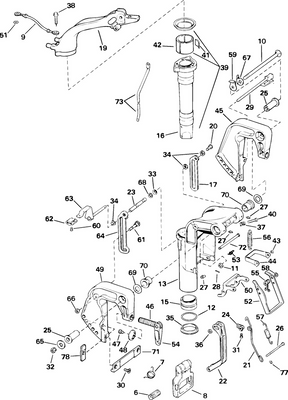

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 329647 Bracket, Steering

Schematic Object Key : 80

Product Description: Bracket, Steering

Category: EVINRUDE / 1984 / 25 / E25ECRS 1984 / MIDSECTION - ELECTRIC START ONLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0330621 Gasket, powerhead base This part replaces 0324332.
2 0308743 Screw, injector to manifold This part replaces 0320179.
3 0435564 Exhaust housing assy. This part replaces 0393422.
4 0324815 Stud
5 0328500 Exhaust tube, inner
6 0314408 . .ring, tru arc
7 0303887 Washeer, pin to swivel bracket
8 0303879 Mount rubber, upper side, std. only
8 0325974 Mount, rubber, upper
9 0321513 Guide, water tube
10 0329217 Screw, retainer This part replaces 0310259.
11 0306439 Washer
12 0304023 Gasket, cover plate
13 0303862 Cover plate, extension long shaft models
14 0303587 Scres,cover plate
15 0310729 Spring clip This part replaces 0123140.
16 0321470 Mount, rubber, lower side
16 0325975 Mount, rubber, lower
17 0323109 Houising,lower mount,stbd.
18 0328737 Washer This part replaces 0306015.
19 0330437 Screw
20 0303886 Lockwasher
21 0321469 Mount, rubber, lower front
22 0302497 Grommet, lower water tube
23 0309942 Screw, anchor bracket
24 0326943 Pin, link to lock lever
25 0323108 Housing, lower mount port
26 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
27 0303884 Washer
28 0303889 .nut
29 0304800 Mount, rubber, upper front
30 0319541 Pin, bellcrank to shift rod
31 0305650 Cotter pin
32 0321532 Screw
33 0304380 , bow
34 0319537 Clip
35 0322177 Lever, shift rod
36 0303775 Wahser, lever to hsg
37 0304859 Rod, shaft, upper
38 0203688 Nut This part replaces 0328710.
39 0394574 Adj. lever shaft assy
40 0303191 "o" ring, lever shaft
41 0392563 Shift lever assy.
41A 0327675 Bolt, double ended
41B 0327725 Washer, bolt to shift lever
41C 0328266 Washer, bolt to shift lever
41D 0313022 Locknut, double ended bolt
42 0327945 Fitting, lube
43 0328230 Screw, shift lever
44 0303887 Washeer, pin to swivel bracket
45 0327163 Spacer, shift lever
46 0313607 Lube fitting
47 0313838 Nut, bracket to steering arm
48 0391943 Stern brkt. assy., stbd
49 0391421 Clamp screw handle
50 0337017 Plate, swivel This part replaces 0307561.
51 0321922 Screw, shoulder
52 0304144 Lock washer
53 0391942 Stern brkt. at., port includes items 49, 51
54 0319108 Screw belcrank
55 0319695 Bell crank
56 0324816 Screw, anode
57 0328701 Lockwasher, double ended bolt
58 0309967 Bushing, pilot shaft, lower
59 0301917 O ring
60 0309966 Thrust washer, lower swivel bracket
61 0319696 Rod, reverse lock
62 0388661 Cam shift assy., tilt lock
63 0432294 Screw nut assembly This part replaces 0313966.
64 0397736 Block assy., friction This part replaces 0319086.
65 0326071 Bumper, mount housing
66 0315078 Spring, reverse lock
67 0319787 Bushing
68 0319227 Screw, knob
69 0324579 Screw
70 0322947 Head assy.
71 0328048 Knob, tilt reverse lock lever
72 0551113 Ressort de friction de direction
73 0321531 Screw, friction adjust. swivel brkt.
74 0322949 Link, reverse lock
75 0315786 Retainer, knob
76 0322950 Lever, reverse lock
77 0397736 Block assy., friction This part replaces 0388748.
78 0327969 Écrou de blocage
79 0329648 Pilot shaft
80 0329647 Bracket, steering
81 0317624 Screw, driveshaft hsg
82 0303854 Bushi ng, throttle control
83 0393943 Gear, throttle control
84 0304573 Scr., idle adj.
85 0552368 Spring, idle adj. screw
86 0327969 Écrou de blocage
87 0315776 Rondelle
88 0396741 Actuator cam, shift This part replaces 0325582.
89 0319694 Spring, tilt lock
90 0319693 Bushing, tilt lock
91 0319692 Pin tilt lock
92 0388662 Leveer shaft, lock
93 0436387 Tilt pin This part replaces 0391271.
94 0323599 Locknut This part replaces 0316828.
95 0437876 Lock assembly, tilt port This part replaces 0387667.
96 0437875 Lock assembly, tilt starboard This part replaces 0387668.
97 0351896 Tilt tube This part replaces 0321511.
98 0319699 Thrust washer, stern bracket
99 0357240 Tie bar, stern bracket This part replaces 0319709.
100 0323158 Bracket, rubber, lower side
101 0328064 Nut
102 0328059 Clamp, cable to trunnion
103 0310685 Abchor blcok, trunnion
104 0310686 Screw
105 0319697 Spring reverse lock
106 0322945 Pin, link shallow water drive
108 0322946 Spring, shallow water drive
