EVINRUDE-JOHNSON 329920 GASKET WTR CVR C=3 PKG=5

Write a Review
$5.11
SKU:
329920-OMC
Schematic Object Key:
7

EVINRUDE-JOHNSON 329920 GASKET WTR CVR C=3 PKG=5

$5.11

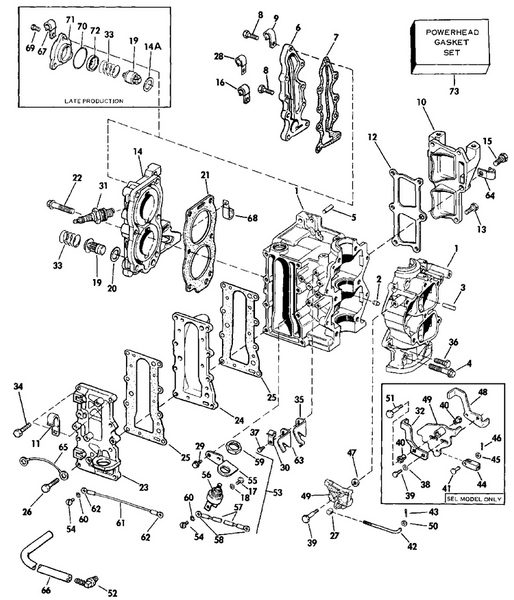

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 329920 Gasket, Water Cover

Schematic Object Key : 7

Product Description: Gasket, Water Cover

Category: JOHNSON / 1986 / 15 / J15ECDE 1986 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0396010 Cylinder c'case assy.
2 0304178 Pin, dowel
3 0300402 Taper pin
4 0318622 Screw, cylinder to crankcase
5 0319627 Pin, shift lever
6 0329919 Water cover, cylinder head
7 0329920 Gasket, water cover
8 0306409 Screw, anchor block lower
9 0310439 Clamp, battery cable
10 0336637 Bypass cover This part replaces 0328820.
10 0319350 By pass cover
11 0316245 Clamp
12 0319332 Gasket, by pass cover
13 0300646 Screw, clamp, fuel filter
14 0329917 Cylinder head
14 0432765 Cyl. head seat This part replaces 0396282.
14 0432765 Cyl. head seat This part replaces 0397152.
15 0302863 Screw, base to adaptor
15 0308429 Screw
16 0330151 Cable clamp, filter This part replaces 0309322.
17 0308120 . screw
18 0303916 Lock washer, ground terminal
19 5005440 Thermostat This part replaces 0378065.
19 0433379 Thermostat This part replaces 0395919.
20 0329319 Gasket, thermostat
21 0330818 Gasket, cylinder head
22 0322323 Screw
22 0319226 Screw, cylinder head
23 0322404 Exhaust cover, outer
24 0328497 Exhaust cover, inner
25 0318925 Gasket, exhaust cover
26 0333676 Screw, cover to gearcase This part replaces 0331001.
27 0323655 Pivot nut, link to shift lever
28 0330151 Cable clamp, filter This part replaces 0309846.
29 0315287 Screw
30 0310442 Clamp, tps lead
31 0386941 Spark plub,champion l77j4
31 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
32 0123024 Shift lock stop
33 0328051 Spring, pressure release
33 0331186 Spring
34 0316491 Screw, anchor block to manifold
35 0319414 Detent, shift hook
36 0909386 Screw, housing to gearcase
37 0315287 Screw
38 0306413 Washer
39 0327768 Screw, rope guide pulley
39 0332226 Screw, air temperature sensor This part replaces 0302750.
40 0311015 Bushing, pawl
41 0319127 Pin, clevis lever to lock lever
42 0319066 Link, shift lever to lock lever
42 0323656 Link, shift lever to lock lever
43 0305650 Cotter pin
44 0318955 Clevis, link to bellcrank
45 0300154 Washer
46 0305650 Cotter pin
47 0306407 Locckwasher,cover latch
48 0322407 Stop, shift lock
49 0387257 Lever hub assy., shift lock
49 0323657 Shift lever
50 0300154 Washer
51 0319415 Screw
52 0321886 Elbow
53 0583053 Bracket sw. ay., neutral start
54 0314492 . screw, screen to valve hsg.
55 0319543 . bracket, neut. start sw.
56 0395699 Starter switch
57 0583052 Lead assy., switch to terminal block
58 0204039 10 ring terminal
59 0319601 . nut, switch
60 0303916 Lock washer, ground terminal
61 0581288 . lead assy., switch
62 0204039 10 ring terminal
63 0320890 Support, detent
64 0314254 Clamp This part replaces 0310620.
65 0376349 Lead, ground
66 0321887 Hose, indicator
67 0333440 Clamp, battery cable This part replaces 0317755.
68 0330151 Cable clamp, filter
69 0328744 Screw, clamp 1 4 20 x .75
70 0331188 O ring
71 0331189 Cover, thermostat
72 0331241 Isolator
73 0394546 Powerhead gasket set
