EVINRUDE-JOHNSON 330060 STUD C=5

Write a Review
$36.49
SKU:
330060
Schematic Object Key:
66

EVINRUDE-JOHNSON 330060 STUD C=5

$36.49

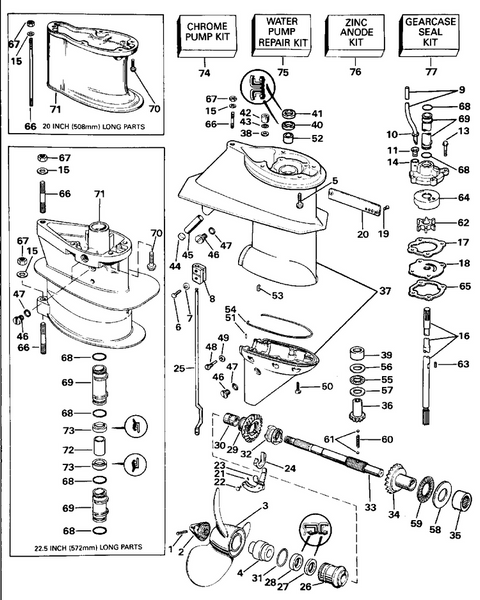

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 330060 Stud

Schematic Object Key : 66

Product Description: Stud

Category: JOHNSON / 1996 / 25 / J25RWLEDC 1996 / GEARCASE - 25RS - 25RW - H25FP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0306394 Cotter pin
2 0390294 Nut, propeller
3 0389067 Propeller 9 1 4 x 7
3 0389068 Propeller, 9 x 10
3 0389069 Propeller, 9 1 4 x 10 al
3 0388883 Propeller, 9 1 4 x 11 al
3 0389321 Propeller, 9 1 4 x 12 sst
3 0389944 Propeller, 9 1 4 x 12 al, std.
3 0395232 Propeller, 9 1 4 x 13 al
4 0389281 Prop bushing assy. This part replaces 0398127.
4 0389281 Prop bushing assy.
5 0328333 Screw
6 0304024 Screw
7 0301551 Washer, lock
8 0303794 Connector
9 0395339 Water tube
10 0330658 Washer
11 0302497 Grommet, lower water tube
13 0328725 Screw, cover to gearcase
14 0330560 Housing, impeller
15 0312687 Wahser,bushing
16 0341650 Driveshaft, standard
17 0329390 Gasket, impeller housing
18 0324564 Plat,e impeller housing
18 0329391 Plate, impeller housing
19 0303587 Scres,cover plate
20 0302505 Cover, water by pass
21 0306376 Cotter pin This part replaces 0306370.
22 0302504 Pin, connector, shift rod
23 0375755 Lever pin assy.
24 0325014 Cradle, clutch dog
25 0303098 Rod, lower shfit, standard
26 0389045 Gearcase head assy
27 0321459 Oil retainer, housing
28 0321787 Seal, oil, prop shaft, outer
29 0325258 Gear, reverse
30 0303997 Bushing, reaverse gear
31 0321921 "o"ring,gearcase head
32 0325263 Shifter, clutch dog
33 0323294 Shaft, propeller
34 0390295 Gear bushing assy., forward
35 0389472 Bearing, forward gear
36 0324457 Gear, pinion, driveshaft
37 0432810 Gearcase bearing assy.
38 0304764 . gasket, bushing
39 0376856 Bearing assembly, pinion
40 0321459 Oil retainer, housing
41 0330327 Retainer, oil driveshaft, outer
42 0304765 Bushing, shift rod
43 0301877 O ring shift rod
44 0300314 . plug, intake screen
45 0302757 . screen, water intake
46 0307551 Screw
47 0311598 Seal
48 0308376 Pivot pin, shift lever
49 0332584 Washer, seal ring
50 0330562 Screw, gearcase
51 0300611 . dowel, bearing
52 0386071 Bearing assy., pinion to gearcase
53 0317728 . magnet, gearcase
54 SEAL, Gearcase
55 0388027 Thrust bearing, pinion
56 0319667 Thrust washer
57 0322688 Thrust washer, bearing
58 0324459 Thrust washer, foreward gear
59 0389470 Thrust bearing
60 0316505 Spring, detent
61 0316506 Ball, detent
62 0395289 Impeller key assy
63 0344470 Key, impeller This part replaces 0330619.
64 0360633 Cup, impeller housing This part replaces 0328773.
64 0360633 Cup, impeller housing This part replaces 0328751.
65 0324449 Gasket , impeller housing plate
66 0330060 Stud
67 0552938 Locking nut, 3 8 x 24
68 0301967 O ring
69 0324453 Spacer
0396262 0396262 Extension kit assy.
6 0304024 Screw
7 0301551 Washer, lock
8 0304081 Connector 5 " extension kit
9 0395340 Water tube washer
10 0330658 Washer
15 0312687 Wahser,bushing
16 0341649 Driveshaft, long
25 0303257 Rod, shift, lower, long
66 0330558 Stud, housing to gearcase
68 0301967 O ring
69 0324455 Spacer, exh. hsg. to imp. hsg
70 0328333 Screw
71 0328336 Extension, gearcase
0325974 0325974 Mount, rubber, upper
0325975 0325975 Mount, rubber, lower
67 0552938 Locking nut, 3 8 x 24
9 0395341 Water tube
10 0330658 Washer
15 0312687 Wahser,bushing
16 0329263 Drive shaft
25 0328982 Shift rod
66 0330060 Stud
67 0552938 Locking nut, 3 8 x 24
68 0301967 O ring
69 0324453 Spacer
70 0328333 Screw
71 0393724 Extension stud
46 0307551 Screw
47 0333572 O ring
66 0330060 Stud
72 0328985 Bushing
73 0330037 Seal
74 0394392 Chrome pump kit
75 0395270 Water pump repair kit includes impeller housing This part replaces 0395271.
75 0395270 Water pump repair kit includes impeller housing
76 0173029 Anode
0304454 0304454 Lock washer
0306643 0306643 Screw
0332226 0332226 Screw, air temperature sensor
77 0396352 Gearcase seal kit
