EVINRUDE-JOHNSON 330265 WASHER C=4

Write a Review
$6.23
SKU:
330265-OMC
Schematic Object Key:
15

EVINRUDE-JOHNSON 330265 WASHER C=4

$6.23

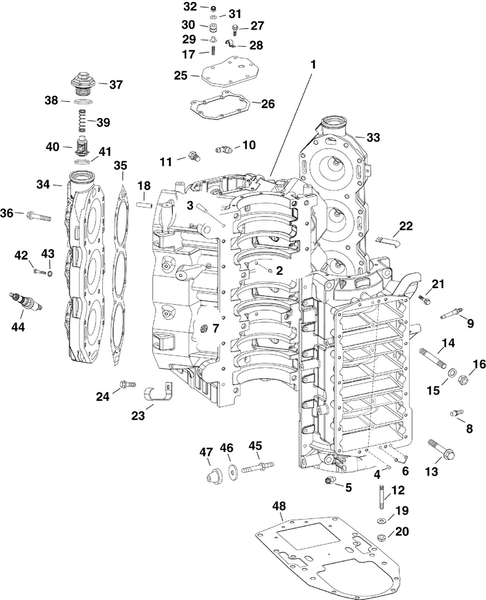

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 330265 Washer

Schematic Object Key : 15

Product Description: Washer

Category: EVINRUDE / 2006 / 250 / E250DCXSDR / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5005909 Cylinder crankcase assy
2 0304178 Pin, dowel
3 0331095 Pin, c c taper
4 0331880 Pin, housing to gearcase
5 0319253 Fitting, c c lubrication
6 0435681 Check valve assembly main bearing drain
7 5000477 Check valve, recirculation
NS 0321598 Crankcase fitting see "recirculation hoses" not shown
NS 0348471 Fitting, oil recirculation elbow see "recirculation hoses" not shown
NS 0314513 Fitting, fuel inlet see "recirculation hoses" not shown
NS 0437784 Ens. clapet anti retour see "recirculation hoses" not shown
NS 0313537 Fitting, tee recirculation hose see "recirculation hoses" not shown
NS 0772569 Hose, recirculation see "recirculation hoses" not shown
NS 0772571 Hose see "recirculation hoses" not shown
8 0345702 Fitting, cooling hose
9 0344821 Fitting, crankcase oil inlet
10 0345702 Fitting, cooling hose
11 0332135 Plug
12 0314616 Stud
13 0914024 Screw, c c to block
14 0348843 Stud, c c to block
15 0330265 Washer
16 0332291 Nut, c c to block stud
17 0344402 Stud, blowoff bracket
18 0346237 Dam, c c water
19 0301250 Rondelle
20 0306422 Nut
21 0324334 Screw
22 0316487 Retainer
23 0351745 Clamp, harness to block
24 0335200 Bonding lead
25 0347318 Cover
26 0344472 Gasket, rect. reg. to cyl. block included in cyl crankcase gasket seal kit
27 0335687 Screw, clamp 1 4 20 x .75
28 0352767 Clamp, fuel return rail
29 0338558 Entretoise, à collerette
30 0333040 Isolator
31 0328703 Washer, screw hook
32 0313022 Locknut, double ended bolt
33 5006194 Head, cylinder head port
34 5006195 Head, cylinder head stbd
35 0346007 Gasket, cylinder head included in cyl crankcase gasket seal kit
36 0352913 Bolt, cylinder head This part replaces 0345943.
37 0344771 Cover, thermostat
38 0301917 O ring included in cyl crankcase gasket seal kit
39 0345171 Spring, thermostat
40 5005440 Thermostat
41 0339299 Seal, thermostat to cyl head included in cyl crankcase gasket seal kit
42 0335200 Bonding lead
43 0328701 Lockwasher, double ended bolt
44 5006308 Spark plug
45 0329743 Stud, cover mount
46 0349557 Mount
47 0349556 Washer
48 0351535 Gasket, c c to adapter included in cyl crankcase gasket seal kit
