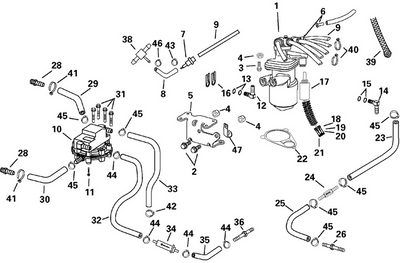

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 20
Product Description: Fitting, Inlet
Category: EVINRUDE / 1986 / 300 / E300TXCDC 1986 / ELECTRIC PRIMER PUMP ASSY.
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0122481 | Spacer, pivot | |
2 | 0393125 | Switch, primer | |
3 | 0310781 | Cache, interrupteur | |
4 | 0310782 | Ecrou, interrupteur | |
5 | 0330069 | Bezel, primer switch | |
6 | 0329586 | Flange, connector | |
7 | 0124073 | Lag screw | |
8 | 0302588 | "o" ring, bearng hsg. | |
9 | 0333416 | Filter, pump | This part replaces 0328072. |
10 | 0304027 | Screw | |
11 | 0511828 | Terminal | |
12 | 0329587 | Fitting, reducer | |
13 | 0329589 | Tee, large | |
14 | 0394302 | Check valve | |
15 | 0329588 | Tee, small | |
16 | 0328702 | Washer | |
17 | 0394303 | Fuel line assy. | |
18 | 0328740 | Nut, throttle friction | |
19 | 0330548 | Bracket, mounting | |
20 | 0330552 | Fitting, inlet | |
21 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
22 | 0320597 | Tubing | |
23 | 0510952 | Splice | |
24 | 0174651 | Electric premier pump assy. | This part replaces 0392752. |
25 | 0510781 | Tubing, sleeve | |
26 | 0582955 | Lead assy. | |
27 | 0512129 | Fuse, 5 amp. | |
28 | 0330457 | Connector |
