EVINRUDE-JOHNSON 331152 Extension

Write a Review
$224.49
SKU:
331152
Schematic Object Key:
58

EVINRUDE-JOHNSON 331152 Extension

$224.49

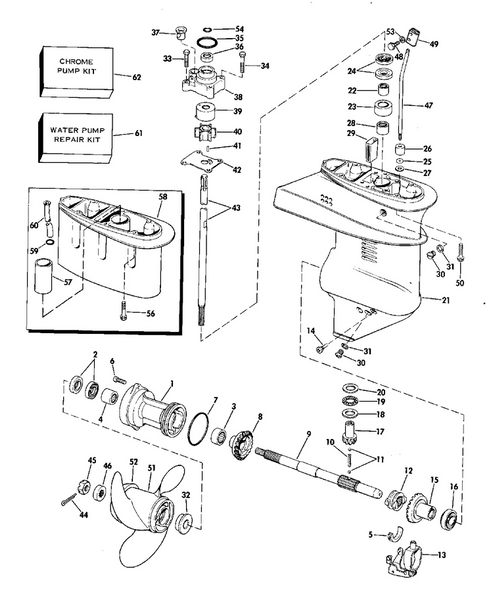

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 331152 Extension

Schematic Object Key : 58

Replacement: This part (331152) replaces 0319314.

Product Description: Extension

Category: EVINRUDE / 1975 / 15 / 15554C 1975 / GEARCASE GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0437774 Bearing housing, bearing seal This part replaces 0386161.
2 0321481 .seal, bearing housing to propeller shaft This part replaces 0319256.
3 0386125 Bearing, reverse gear
4 0386231 Bearing
5 0318877 Cradle, clutch dog
6 0304071 . screw, gearcase
7 0308627 "o" ring, bearing housing to gearcase
8 0318861 ,gear,reverse
9 0318847 Propeller shaft
10 0316505 Spring, detent
11 0316506 Ball, detent
12 0316501 Shift, clutch dog
13 0388416 Shifter lever yoke assy. This part replaces 0386148.
14 0308376 Pivot pin, shift lever
15 0386076 Gear bushing assy., forward
16 0386186 Roller bearing, forward gear
17 0322341 Pinion, driveshaft This part replaces 0318862.
18 0318800 Thrust washer, lower pinion bearing
19 0112840 Thrust bearing, pinion
20 0318699 Thrust washer, upper pinion bearing
21 0438617 Gearcase assy, This part replaces 0386017.
22 0386014 Bearing assembly, driveshaft
23 0318874 Sleeve, bearing driveshaft
24 0321480 Seal, driveshaft This part replaces 0318973.
25 0301877 O ring shift rod
26 0304765 Bushing, shift rod
27 0306407 Locckwasher,cover latch
28 0386071 Bearing assy., pinion to gearcase
29 0318991 .screen, water intake
30 0307551 Screw
31 0311598 Seal
32 0318966 Thr bushing, prop. to shaft
33 0324334 Screw This part replaces 0302820.
34 0319126 Screw, muffler, upper This part replaces 0313828.
35 0319085 Seal
36 0318972 Seal, oil
37 0302497 Grommet, lower water tube
38 0394711 Chrome pump kit This part replaces 0318875.
39 0394711 Chrome pump kit This part replaces 0318999.
40 0386084 Impeller
41 0300611 . dowel, bearing
42 0318995 Plate, impeller housing
43 0318845 Driveshaft, standard
44 0552906 Cotter pin, upper pivot
45 0318971 Nut
46 0323942 Spacer This part replaces 0318959.
47 0318992 Shift rod lower, standard
48 0304024 Screw
49 0303794 Connector
50 0331025 Screw This part replaces 0308744.
51 0778772 Rh alum. 9 1 2 x 10 This part replaces 0386118.
51 0386669 Propeller and bushing assembly 10 x 5
51 0387389 Propeller, 9 1 4 x 8 al
51 0386670 Propeller and bushing assembly 9 x 10
52 0332395 Converging ring This part replaces 0319484.
54 0303067 "o" ring, driveshaft
35 0319085 Seal
43 0318846 Driveshaft,long 5" longer parts
47 0319298 Rod,shift
48 0304024 Screw
49 0303794 Connector
53 0301551 Washer, lock
54 0303067 "o" ring, driveshaft
56 0331025 Screw This part replaces 0308744.
57 0319340 Extension
58 0331152 Extension This part replaces 0319314.
59 0202893 "o" ring, drive shaft
60 0320025 Extension
61 0394711 Chrome pump kit This part replaces 0386697.
62 0394711 Chrome pump kit This part replaces 0386685.
