EVINRUDE-JOHNSON 331450 Dowel Pin, Brg Race Alignment

Write a Review
$4.99
SKU:
331450
Schematic Object Key:
2

EVINRUDE-JOHNSON 331450 Dowel Pin, Brg Race Alignment

$4.99

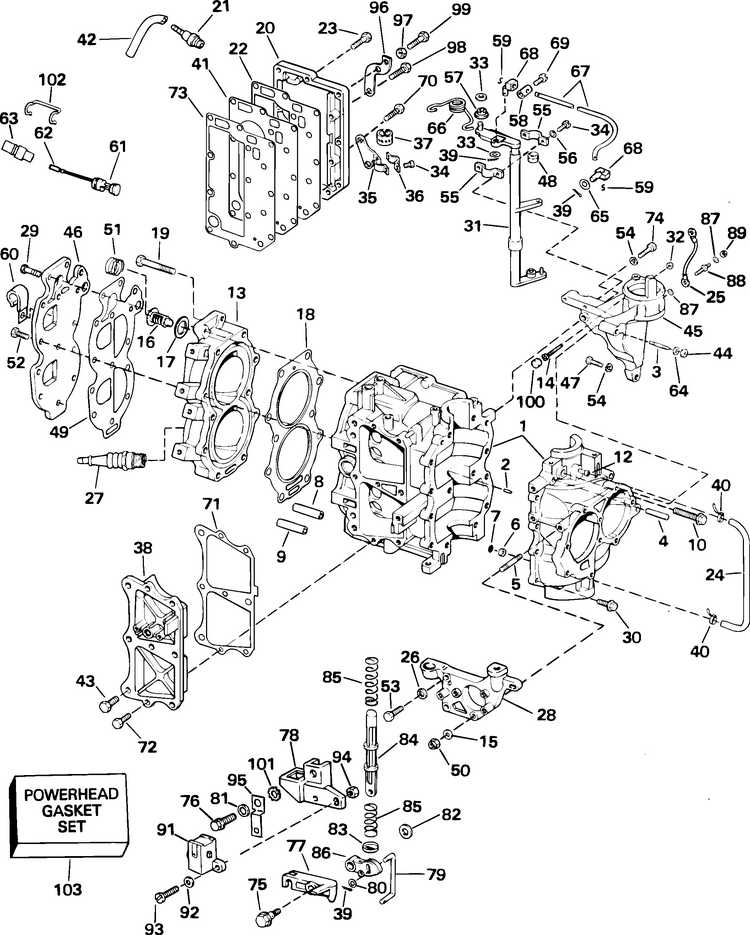

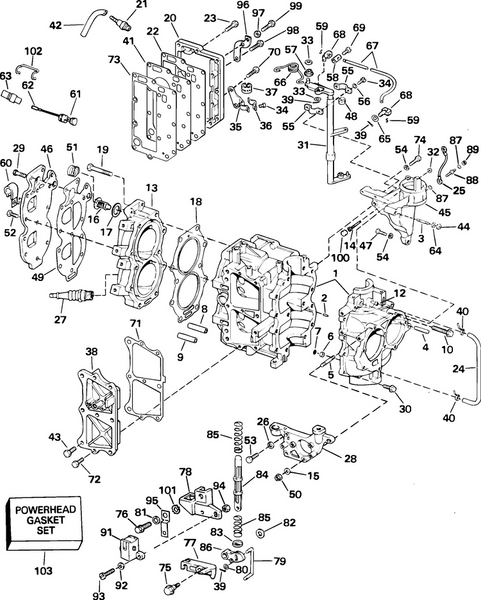

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 331450 Dowel Pin, Brg Race Alignment

Schematic Object Key : 2

Product Description: Dowel Pin, Brg Race Alignment

Category: JOHNSON / 2003 / 25 / J25TELSTR / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0435942 Cyl. c'case assy.
2 0331450 Dowel pin, brg race alignment
3 0308354 Stud, starter bracket
4 0305070 Axe, carter moteur vers bloc
5 0308353 Stud
6 0385111 Check valve
7 0305344 Screen
8 0335602 Deflector, water passage
9 0335603 Deflector, water passage
10 0318622 Screw, cylinder to crankcase
12 0328932 Fitting, oil recirculation upper
13 0335635 Cyl. head assy.
14 0335762 Screw, spark adj
15 0329241 Washer
16 5005440 Thermostat This part replaces 0434841.
17 0329319 Gasket, thermostat included in powerhead gasket set.
18 0329419 Gasket, cylinder head included in powerhead gasket set.
19 0305027 Screw
20 0391465 Exhaust cover, outer
21 0326712 Fitting, water inlet
22 0324323 Gasket, exh. cover, outer to inner included in powerhead gasket set.
23 0306418 Screw, anchor block lower
24 HOSE, Upper to lower crankcase, 12 in. (305mm) | (Cut to Length from P/N 772568.)
25 0584472 Bonding lead
26 0302290 Washer
27 0502180 Spark plug, champion ql77jc4
28 0325340 Bracket, starboard
29 0308742 Screw, crankcase to cylinder
30 0314979 Screw, cylinder to c'case
31 0438076 Control lever pin
32 0328741 Nut, input stud
33 0305831 Shim
34 0331036 Screw
35 0331448 Bracket, control lever
36 0331919 Bearing clamp, leaver, lower
37 0331918 Bearing, lever lower
38 0439912 Bypass cover assy
39 0303049 Cotter pin
40 0320107 Tie strap
41 0326263 Exhaust cover, inner
42 HOSE, Wtr ind,16 in. (406mm) | (Cut to Length from P/N 203909.)
43 0332203 Screw, by pass cover
44 0121731 Nut, hook, front
45 0333929 Bracket, starter motor
46 0327673 Cover, cylinder head
47 0318178 Screw, clamp
48 0320524 Bearing, control lever
49 0327674 Gaskeet, water cover included in powerhead gasket set.
50 0121731 Nut, hook, front
51 0328051 Spring, pressure release
52 0300646 Screw, clamp, fuel filter
53 0303398 Screw, lower
54 0302290 Washer
55 0320523 Bearing clamp
56 0304454 Lock washer
57 0307841 Bushing, control lever
58 0304222 Collar
59 0307565 Pin
60 0330151 Cable clamp, filter
61 5000015 Temperature switch
62 0581656 Terminal, socket
63 0513356 Connector, 1 socket plug
64 0329241 Washer
65 0551953 Washer
66 0316368 Spring
67 0320156 Rod, throttle control
68 0320786 Pivot pin
69 0304221 Scew,collar to cable
70 0303398 Screw, lower
71 0319661 Gasket, by pass cover included in powerhead gasket set.
72 0300646 Screw, clamp, fuel filter
73 0326264 Gasket, exh. cover inner to c'case included in powerhead gasket set.
74 0324813 Ecrew,exhaust cover,1 3 8"long
75 0327443 Screw, starter lockout
76 0122147 Screw, adapter to steering bracket
77 0325589 Lever, start lockout
78 0325326 Bracket, safety sw. cable
79 0335326 Link, actuator cam
80 0303715 Washer, rivet
81 0328703 Washer, screw hook
82 0120590 Washer lever arm, pulley
83 0325586 Retainer, spring
84 0325332 Plunger
85 0325584 Spring, neutral detent
86 0396163 Lever roller assy
87 0328701 Lockwasher, double ended bolt
88 0311344 Bolt, double end
89 0328740 Nut, throttle friction
91 0386056 Safety switch assy
92 0303851 Washer
93 0340654 Screw, cover This part replaces 0307506.
94 0325994 Nut, safety switch
95 0325600 Ground strap
96 0331446 Idle stop bracket
97 0203688 Nut
98 0303398 Screw, lower
99 0308038 Screw, idle stop
100 0314416 Bumber, advance screw
101 0328701 Lockwasher, double ended bolt
102 0512741 Retainer, connector, 1 pin
103 0433941 Powerhead gasket set
