EVINRUDE-JOHNSON 331626 Cover, Leads

Write a Review
$15.49
SKU:
331626
Schematic Object Key:
11

EVINRUDE-JOHNSON 331626 Cover, Leads

$15.49

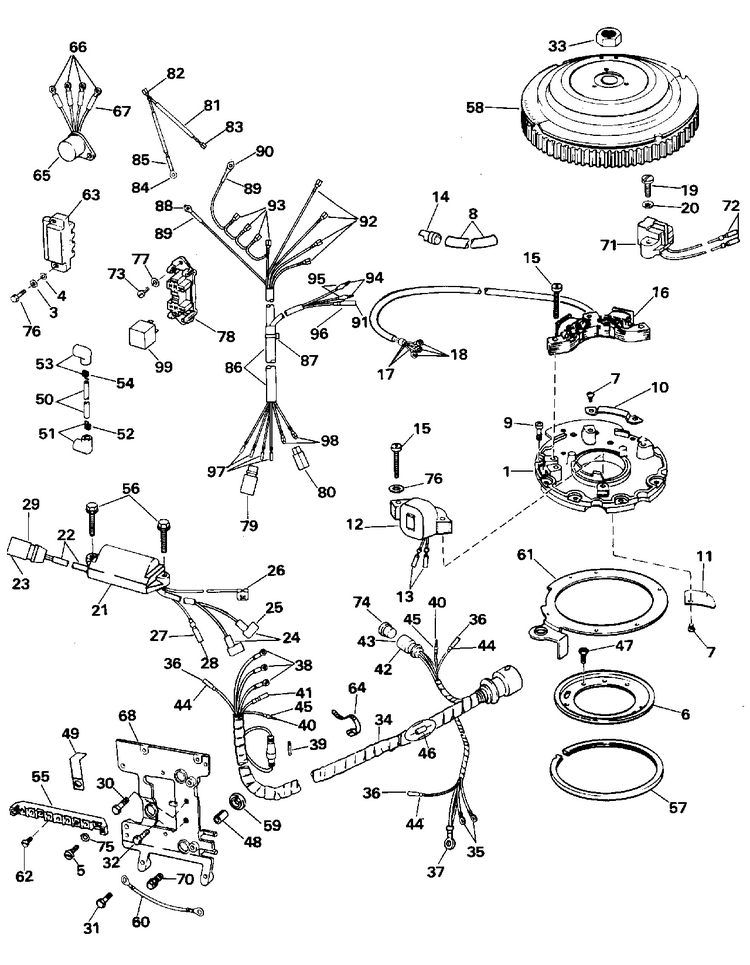

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 331626 Cover, Leads

Schematic Object Key : 11

Product Description: Cover, Leads

Category: JOHNSON / 1995 / 50 / J50TLEOD 1995 / IGNITION SYSTEM - 25 ELECTRIC START AND TL MODELS ONLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0582417 Plate sleeve assembly
2 0317893 Tie strap
3 0328701 Lockwasher, double ended bolt
4 0328703 Washer, screw hook
5 0303714 Screw
6 0332063 Plate, support
7 0303212 Screw, cover
8 0514481 Sleeve
9 0511460 Screw, ignition plate
10 0511458 . clamp, leads
11 0331626 Cover, leads
12 0585073 Coil lamination assy.
13 0581656 Terminal, socket
14 0512753 Connector, 5 socket plug
15 0337522 Screw, stator
16 0582926 Stator assy.
17 0513833 Tubing
18 0510780 8 ring termianl
19 0319682 Screw, extension
20 0328735 Washer, screw, ball joint
21 5001344 Module, ignition This part replaces 0585074.
22 0513186 Sheath, cell
23 0511469 Terminal, pin
24 0512478 Couvercle, alvéole bobine primaire
25 0512256 Broche, prise bobine primaire
26 0512131 Ring terminal
27 0316594 Tubing
28 0512876 Terminal, socket
29 0512754 Connector
30 0314576 Screw This part replaces 0328720.
31 0328724 Screw
32 0328731 Screw, battery cable clamp
33 0326111 Nut
34 0584398 Motor cable assy,.
35 0204036 10 ring termial,12v
36 0512876 Terminal, socket
37 0204053 Borne, anneau 0,312" 7,9 mm diamètre
38 0510780 8 ring termianl
39 0510884 Fuse, 20 amp.
40 0512947 Terminal, bullet
41 0581656 Terminal, socket
42 0512750 Connector, 4 pin
43 0511469 Terminal, pin
44 0513186 Sheath, cell
45 0513185 Sleeve
46 0583898 Diode
47 0332070 Screw, retaining plate This part replaces 0326875.
48 0302406 Sleeve
49 0316487 Retainer
50 0582365 H.t. lead assembly, spark plugs to ignition coil
51 0581027 Cover terminal assy, spark plug
52 0510231 Spring
53 0580339 Cover terminal assy, coil
54 0510231 Spring
55 0329895 Block, terminal
56 0328726 Screw use existing coil screw
57 0322435 Bearing, timer base plate to
58 0584261 Flywheel assy
59 0326136 Grommet
60 0376349 Lead, ground
61 0332790 Retainer
62 0329182 Screw, ground terminal
63 0583740 Coil assy
64 0320107 Tie strap
65 0585035 Rectifier lead
66 0510780 8 ring termianl
67 0510781 Tubing, sleeve
68 0338431 Bracket
70 0328725 Screw, cover to gearcase
71 0585072 Sensor assembly
72 0581656 Terminal, socket
73 0306643 Screw This part replaces 0324064.
74 0335655 Bouchon, étanchéité
75 0303701 Lock washer, adjustment screw
76 0328725 Screw, cover to gearcase
77 0328739 Rondelle entre ancrage et support
78 0334191 Bracket
79 0512753 Connector, 5 socket plug
80 0513663 Connector
81 0583706 Cable, relay
82 0513167 Terminal, receptacle
83 0513166 Terminal, receptacle
84 0510780 8 ring termianl
85 0510781 Tubing, sleeve
86 0584725 Cable ay.
87 0320107 Tie strap
88 0510780 8 ring termianl
89 0510781 Tubing, sleeve
90 0511829 Ring terminal
91 0512876 Terminal, socket
92 0513166 Terminal, receptacle
93 0513167 Terminal, receptacle
94 0512947 Terminal, bullet
95 0513185 Sleeve
96 0513186 Sheath, cell
97 0581656 Terminal, socket
98 0513666 Terminal
99 0586224 Relay assy. This part replaces 0584416.
100 0321077 Retainer
