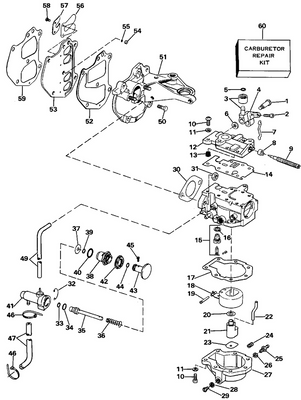

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 6
Product Description: Link, Follower
Category: EVINRUDE / 1988 / 6 / E6RLCCS 1988 / CARBURETOR EARLY PRODUCTION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 0398061 | 0398061 | Carburetor assy. | |
| 0398060 | 0398060 | Carburetor assy. | |
| 1 | 0323328 | Roller | |
| 2 | 0330346 | Screw, adjustment | |
| 3 | 0323327 | Cam follower | |
| 4 | 0312831 | Shoulder screw | |
| 5 | 0330190 | Washer | |
| 6 | 0331930 | Link, follower | |
| 7 | 0338882 | Gasket, bowl | This part replaces 0333346. |
| 8 | 0333695 | Screen, cover | This part replaces 0309949. |
| 10 | 0331735 | Cover, carb body | |
| 11 | 0334043 | Gasket, cover | This part replaces 0331750. |
| 12 | 0908045 | Screw | |
| 13 | 0331831 | Washer | |
| 14 | 0326467 | Nipple, vapor sep, vacuum pick up | |
| 15 | 0331743 | Needle valve, slow speed | |
| 16 | 0315232 | Retainer , needle valve stbd | |
| 17 | 0398068 | Float chamber | |
| 18 | 0330057 | Screw plug | |
| 19 | 0303630 | Washer | |
| 20 | 0302661 | Hinge pin, float | |
| 21 | 0396522 | Ensemble soupape à flotteur | |
| 22 | 0301996 | Gasket | |
| 23 | 0336842 | Clip, spring | This part replaces 0603145. |
| 24 | 0320016 | Orifice, low speed, no. 32 | |
| 24 | 0327745 | Orifice, 40 | |
| 25 | 0396514 | Float assy | |
| 26 | 0336567 | Flex tube | This part replaces 0331740. |
| 27 | 0338883 | Gasket, upper | This part replaces 0333347. |
| 28 | 0396605 | Nozzle well | |
| 28 | 0397189 | Nozzle well | |
| 29 | 0333348 | Gasket, cover to housing | |
| 30 | 0332576 | Ressort, soupape à pointeau | |
| 31 | 0331807 | Screw, idle adjustment | |
| 32 | 0318932 | Gasket, insulator carburetor | |
| 33 | 0328742 | Nut | This part replaces 0306338. |
| 34 | 0331780 | Seal, air silencer to carb | |
| 35 | 0396564 | Air silencer | |
| 36 | 0331758 | Screw, air horn to carburetor | |
| 37 | 0328739 | Rondelle entre ancrage et support | |
| 38 | 0439073 | Carburetor repair kit | This part replaces 0398508. |
