EVINRUDE-JOHNSON 333017 Spring

Write a Review
$9.99
SKU:
333017-OMC
Schematic Object Key:
62

EVINRUDE-JOHNSON 333017 Spring

$9.99

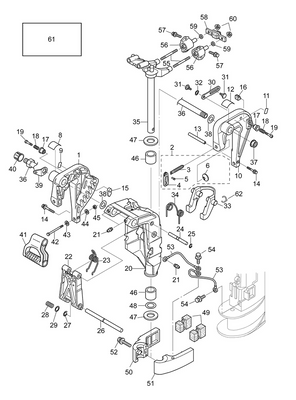

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 333017 Spring

Schematic Object Key : 62

Product Description: Spring

Category: JOHNSON / 1987 / 300 / J300PXCUR 1987 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0396671 Cylinder c'case assy.
1 0396672 Cylinder c'case assy.
2 0304178 Pin, dowel
3 0326743 Stud
4 0331095 Pin, c c taper
5 0338653 Stud, shift throttle levers This part replaces 0320808.
6 0326891 Screw, cylinder to crankcase
7 0326890 Screw, cylinder to crankcase
8 0320744 Washer, stud
9 0322232 Washer
10 0321598 Crankcase fitting
11 0325604 Fitting, boost port
12 0329892 Screw, housing
13 0394892 Check valve assy.
14 HOSE, Valve lower
15 0303806 Tubing
16 0330145 Cotter pin
17 0329740 Arm, control arm
19 0315094 Bushing
20 0326644 Lever, shift rod
21 0329786 Gasket, cylinder head
22 0395044 Cylinder head
22 0395044 Cylinder head This part replaces 0395614.
23 0330273 Cap, thermostat
24 0320880 Seat
25 0909533 Screw, adapter
26 0322323 Screw
27 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
28 0386686 Switch temp
29 0325569 Tee, primer solenoid hoses
30 0344472 Gasket, rect. reg. to cyl. block This part replaces 0330412.
31 0330365 Hose, oil cooler to aspirator
32 0329745 Cover, thermostat stbd
33 0327590 Pin, shift lever
34 0329562 Cache, interrupteur
35 0330272 Fitting
36 0306012 Bow washer
37 0394407 Control valve
38 0329787 Seal
39 0330262 Wiper
41 0328737 Washer
42 0435009 Pulse limiter This part replaces 0174404.
43 0328064 Nut
44 0329744 Cover, thermostat, port
45 0394408 Diaphragm, thermostat cover
46 0434137 Thermostat assy, This part replaces 0394409.
47 0434137 Thermostat assy, This part replaces 0329766.
48 0394411 Thermostat seat assy.
49 0330366 Hose, control valve to cover
50 0302288 Bolt
51 0328695 Clamp, engine cable
52 0312708 Bushing
53 0302290 Washer
54 0331894 Elbow
55 0329971 Hose, adapter to control valve
56 0202026 Washer, rod
57 0397992 Shift lever switch
58 0320107 Tie strap
59 0329997 Pin
60 0394595 Shift lever shaft
61 0583331 Switch slider
62 0333017 Spring
63 0331767 Retainer
64 0317893 Tie strap
65 0320107 Tie strap
66 0511618 Retainer, connector, 2 pin
67 0313607 Lube fitting
68 HOSE, Bearing hsg.
69 0309040 Clamp, exhaust cover
70 0583689 Rectifier regulator assy. This part replaces 0583266.
71 0204053 Borne, anneau 0,312" 7,9 mm diamètre This part replaces 0330254.
72 0511829 Ring terminal
73 0328701 Lockwasher, double ended bolt
74 0304027 Screw
75 0124341 Screw, cover
76 HOSE, Drain system
77 0392988 Check valve
78 0330372 Hose, control valve to aspirator
79 0303715 Washer, rivet
80 0397831 Low compression kit
81 0398355 Powerhead gasket set
