EVINRUDE-JOHNSON 334994 Ring-Locating

Write a Review
$104.49
SKU:
334994
Schematic Object Key:
334994

EVINRUDE-JOHNSON 334994 Ring-Locating

$104.49

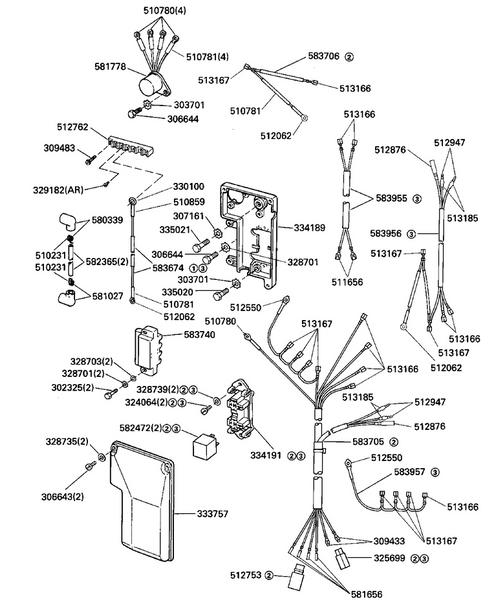

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 334994 Ring-Locating

Schematic Object Key : 334994

Product Description: Ring-Locating

Category: JOHNSON / 1989 / 40 / J40TLCEC 1989 / IGNITION SYSTEM - ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0510780 0510780 8 ring termianl
0581778 0581778 Rectifier lead assy.
0510781 0510781 Tubing, sleeve
0303701 0303701 Lock washer, adjustment screw
0306644 0306644 Screw, rectifier mounting
0513167 0513167 Terminal, receptacle
0510781 0510781 Tubing, sleeve
0583706 0583706 Cable, relay
0513166 0513166 Terminal, receptacle
0512062 0512062 Terminal, ring
0513166 0513166 Terminal, receptacle
0512876 0512876 Terminal, socket
0512947 0512947 Terminal, bullet
0583955 0583955 Cable ay
0513185 0513185 Sleeve
0583956 0583956 Cable ay
0513167 0513167 Terminal, receptacle
0511656 0511656 Terminal
0513166 0513166 Terminal, receptacle
0513167 0513167 Terminal, receptacle
0512062 0512062 Terminal, ring
0512762 0512762 Terminal block
0309483 0309483 Screw, terminal block rectifier
0329182 0329182 Screw, ground terminal
0580339 0580339 Cover terminal assy, coil
0510231 0510231 Spring
0510231 0510231 Spring
0582365 0582365 H.t. lead assembly, spark plugs to ignition coil
0581027 0581027 Cover terminal assy, spark plug
0330100 0330100 Terminal
0510859 0510859 Tube
0307161 0307161 Lock washer, anode
0306644 0306644 Screw, rectifier mounting
0583674 0583674 Lead assembly, terminal block
0303701 0303701 Lock washer, adjustment screw
0335020 0335020 Screw, bracket to block
0510781 0510781 Tubing, sleeve
0512062 0512062 Terminal, ring
0334189 0334189 Bracket
0328701 0328701 Lockwasher, double ended bolt
0583740 0583740 Coil assy
0328703 0328703 Washer, screw hook
0328701 0328701 Lockwasher, double ended bolt
0302325 0302325 Screw, impeller housing
0328735 0328735 Washer, screw, ball joint
0306643 0306643 Screw
0328739 0328739 Rondelle entre ancrage et support
0334191 0334191 Bracket
0333757 0333757 Cover
0512550 0512550 Terminal
0510780 0510780 8 ring termianl
0513167 0513167 Terminal, receptacle
0513166 0513166 Terminal, receptacle
0513185 0513185 Sleeve
0512947 0512947 Terminal, bullet
0512876 0512876 Terminal, socket
0583705 0583705 Cable assembly
0512550 0512550 Terminal
0583957 0583957 Cable ay
0513166 0513166 Terminal, receptacle
0513167 0513167 Terminal, receptacle
0309433 0309433 Borne
0325699 0325699 . connector
0512753 0512753 Connector, 5 socket plug
0581656 0581656 Terminal, socket
0512876 0512876 Terminal, socket
0513186 0513186 Sheath, cell
0512478 0512478 Couvercle, alvéole bobine primaire
0512256 0512256 Broche, prise bobine primaire
0512478 0512478 Couvercle, alvéole bobine primaire
0512256 0512256 Broche, prise bobine primaire
0123404 0123404 Connector, 1 socket plug
0511829 0511829 Ring terminal
0510781 0510781 Tubing, sleeve
0317893 0317893 Tie strap
0511469 0511469 Terminal, pin
0123405 0123405 Connector
0511618 0511618 Retainer, connector, 2 pin
0326111 0326111 Nut
0513057 0513057 Screw
0512136 0512136 Tubing
0511601 0511601 Sleeve, leads
0309545 0309545 Screw, stator mounting
0513185 0513185 Sleeve
0318322 0318322 Attache câble
0511460 0511460 Screw, ignition plate
0512876 0512876 Terminal, socket
0513186 0513186 Sheath, cell
0512947 0512947 Terminal, bullet
0303212 0303212 Screw, cover
0511458 0511458 . clamp, leads
0334994 0334994 Ring locating
0583285 0583285 Plat sleeve assy.
0332790 0332790 Retainer
0511459 0511459 . cover, leads
0303212 0303212 Screw, cover
0332063 0332063 Plate, support
0512947 0512947 Terminal, bullet
0513185 0513185 Sleeve
0322435 0322435 Bearing, timer base plate to
0583675 0583675 Lead assy., module to temp. switch
0513186 0513186 Sheath, cell
0512876 0512876 Terminal, socket
0510780 0510780 8 ring termianl
0510780 0510780 8 ring termianl
0581656 0581656 Terminal, socket
0513185 0513185 Sleeve
0512947 0512947 Terminal, bullet
0321077 0321077 Retainer
0320107 0320107 Tie strap
0511469 0511469 Terminal, pin
0512748 0512748 Connector, 3 pin
0583649 0583649 Cable
0513186 0513186 Sheath, cell
0512876 0512876 Terminal, socket
0510884 0510884 Fuse, 20 amp.
0512876 0512876 Terminal, socket
0513186 0513186 Sheath, cell
0204053 0204053 Borne, anneau 0,312" 7,9 mm diamètre
0204036 0204036 10 ring termial,12v
0583898 0583898 Diode
0315181 0315181 Clamp, motor cable
0326365 0326365 Clip, spring
0313117 0313117 Scr,clamp,eng cable
