EVINRUDE-JOHNSON 335132 O-Ring, Manifold To Housing

Write a Review
$9.46
SKU:
335132-OMC
Schematic Object Key:
34

EVINRUDE-JOHNSON 335132 O-Ring, Manifold To Housing

$9.46

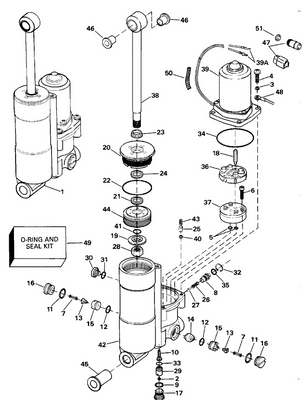

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 335132 O-Ring, Manifold To Housing

Schematic Object Key : 34

Product Description: O-Ring, Manifold To Housing

Category: EVINRUDE / 1998 / 55 / SE55RSLM2 1998 / GEARCASE -- T2 & M2 MODELS ONLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5000251 5000251 Gearcase assy.
5000252 5000252 Gearcase assy.
5000253 5000253 Gearcase assy.
1 0437031 Gearcase bearing assy.
2 0382343 Bearing, pinion
3 0324852 Retaining screw seal
0332584 0332584 Washer, seal ring
4 0314175 Screen, water intake
5 0391365 Bearing housing assembly.
6 0331880 Pin, housing to gearcase
7 0327345 Ball, detent
8 0911961 Spring, detent
9 0908158 Screw, anode
10 0318544 Screw, fill drain
11 0311598 Seal
12 0334163 Cradle, shifter
13 0313447 Thrust washer
14 0382408 Thrust bearing
15 0398522 Gear set, forward pinion
16 0326668 Shaft, shift dog
17 0318303 Shifter, clutch dog
18 0313448 Pin, clutch dog
19 0324369 Spring, clutch dog pin
20 0439153 Propeller shaft assembly.
21 0318353 Gear, reverse
22 0313453 Retainer plate, bearing housing
23 0313445 Retaining ring
24 0313446 "o" riing, brg. hsg
25 0434391 Bearing housing assembly.
26 0382407 Bearing assy, forward gear
27 0379504 Propshaft bearing assembly
28 0342787 Seal
29 0320041 Screw, housing to gearcase
30 0332584 Washer, seal ring
31 0431708 Anode, bearing housing
32 0313339 Nut, pinion to driveshaft
33 5000167 Driveshaft assy.
33 5000168 Driveshaft assy.
33 5000169 Driveshaft assy.
34 0335132 O ring, manifold to housing
35 0317230 Thrust washer
36 0323889 Shim, 0.003 in. 0,07mm
36 0323890 Shim, 0.004 in. 0,10mm
36 0317232 Shim, 0.005 in. 0,12mm
37 0313754 O ring
38 0385087 Bearing housing assembly.
39 0342786 Seal
40 0320107 Tie strap
41 0307551 Screw
42 0311598 Seal
43 0305762 Seal ring
44 0324937 Seal, gearcase to inner exh. hsg.
45 0328725 Screw, cover to gearcase
46 0324037 Lever, shift
47 0316484 Thrust washer, shifter
48 0387336 Cover assembly.
49 0318372 "o" ring, shift rod
50 0320145 Pin, lever to housing
51 0314082 Gasket, cover to gearcase
52 0327366 Shift rod
52 0327367 Shift rod
52 0330704 Shift rod
53 0324766 Thrust washer, forward gear
54 0385043 Thrust bearing assy.
55 0330701 Detent, shifter
56 0909386 Screw, housing to gearcase
57 0317922 Seal, shift rod
58 0385068 Thrust bearing assembly.
59 0438545 Impeller housing
60 0333758 Grommet, water tube
61 0328725 Screw, cover to gearcase
62 0337574 Screw, air silencer
63 0438424 Bracket, water tube
64 0341732 Grommet, housing
65 0336530 Gasket
66 0305282 Bolt, bowl suction piece
67 0307708 Lock washer, mounting This part replaces 0302865.
68 0306503 Screw, adjustment rod
68 0328561 Screw, gearcase mounting
69 0306470 Lock washer
70 0313697 Scr,grc to hsg.long
70 0329022 Screw, gearcase to exh. hsg.
71 0306314 L'washer,scr,long
72 0127084 Thrust bushing
73 0315810 Spacer, impeller nut
74 0314503 Nut, impeller
75 0314502 Cotter pin
76 0127466 Trim tab
77 0313715 Screw, cap, hex hd, 7 16 14 x 1
78 0321452 Grommet
79 0341038 Plate, impeller housing
79 0341187 Plate
80 0334897 Cam, impeller to driveshaft
81 0396725 Impeller key assembly
82 0324981 Seal, impeller housing
83 0330205 Seal, engine cover bracket
85 0329171 Seal, extension to exh housing
87 0340619 Cup, impeller housing
87 0341186 Cup, chrome impeller housing
90 0765182 Propeller w models This part replaces 0391198.
91 0332393 Converging ring
92 0313926 Propeller hub sleeve
93 0384977 Bushing assy, prop, 3 blade
0392461 0392461 Anode kit
94 0436745 Anode
95 0313022 Locknut, double ended bolt
96 0328096 Screw
97 0324430 Screw, anode
98 0307555 Lock washer, anode
99 0392462 Anode and insert
100 5000308 Water pump repair kit
101 0389145 Chrome cup plate kit
102 5000309 Gearcase seal kit
