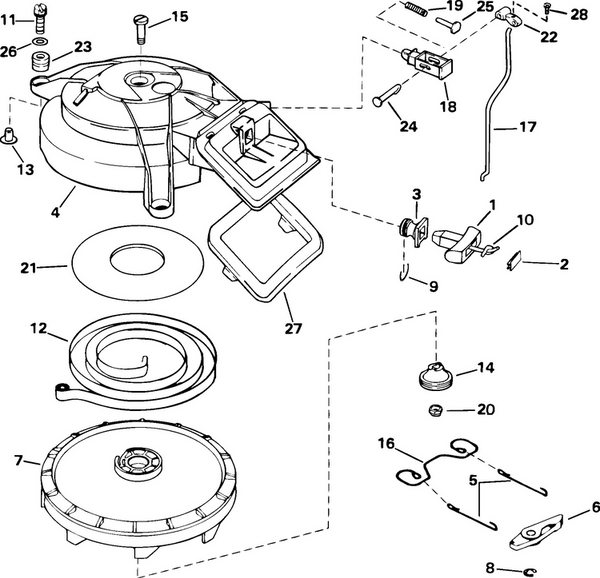

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description: Guide, Rope
Category: JOHNSON / 2007 / 15 / J15RLSUA / MANUAL STARTER
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 5000510 | Handle assy., starter | |
2 | 0332260 | Cap, starter handle | |
3 | 0336148 | Guide, rope | |
4 | 0338203 | Housing, starter | |
5 | 0335905 | Link, friction spring | |
6 | 0330525 | Pawl, starter | |
7 | 0435741 | Pulley pin, starter | |
8 | 0203470 | Retaining ring, pawl | |
9 | 0336110 | Ring, retaining, guide | |
10 | 0772577 | Rope, starter 7 32in. bulk roll 100' cut to length from bulk roll | |
11 | 0333710 | Screw, anchor bracket | |
12 | 0336681 | Spring, starter | |
13 | 0338558 | Entretoise, Ã collerette | |
14 | 0339038 | Spindle | |
15 | 0339043 | Screw, housing to spindle | |
16 | 0331970 | Friction spring | |
17 | 0338231 | Link, lockout | |
18 | 0338228 | Plunger, starter lockout | |
19 | 0338229 | Spring, plunger | |
20 | 0121674 | Locknut | |
21 | 0339030 | Shield, spring | |
22 | 0338225 | Cam, starter lockout | |
23 | 0333040 | Isolator | |
24 | 0339188 | Pin, cam, lockout | |
25 | 0338227 | Tappet, starter lockout | |
26 | 0328703 | Washer, screw hook | |
27 | 0338240 | Seal, housing to cover | |
28 | 0329054 | Screw |
